Name: HPHT Monocrystalline MCD Diamond Engineered Crystal Structure Mirror Smooth Surface
Brand: Shaper Diamond Technology Co., Ltd
Price: 1,000.00 USD
Availability: InStock

Home Products MCD Diamond

HPHT Monocrystalline MCD Diamond Engineered Crystal Structure Mirror Smooth Surface

Product Details:

Place of Origin:	China
Brand Name:	INFI

Payment & Shipping Terms:

Price:	Please contact customer service

Contact Now

Detailed Product Description

Material:	HPHT Synthetic Monocrystalline Diamond	Crystal Orientation:	(111)
Wire Diameter Range:	φ0.003mm~φ2.0mm	Service Life:	Longest-lasting
Moderate Lifespan:	Frequent Replacement	Precision:	Mirror-smooth Wire Surface
Highlight:	HPHT Monocrystalline MCD Diamond , Engineered Crystal Structure MCD Diamond , Mirror Smooth Surface Monocrystalline Diamond

HPHT Monocrystalline MCD Diamond Engineered Crystal Structure Mirror Smooth Surface

Product Attributes

Attribute	Value
Material	HPHT Synthetic Monocrystalline Diamond
Crystal Orientation	(111)
Wire Diameter Range	φ0.003mm~φ2.0mm
Service Life	Longest-lasting
Moderate lifespan	Frequent replacement
Precision	Mirror-smooth wire surface

(111)-Oriented HPHT Diamond Wire Drawing Dies

Revolutionizing Precision Wire Manufacturing

Product Specifications

Material: HPHT Synthetic Monocrystalline Diamond
Crystal Orientation: (111)
Wire Diameter Range: φ0.003mm~φ2.0mm

Product Size Data

PRODUCT NOMENCLATURE	NOMINAL THICKNESS(MM)	THICKNESS TOLERANCE(MM)	MINIMUM INSCRIBED CIRCLE DIAMETER(MM)
SCD111 07	0.7	0.66-0.75	0.8
SCD111 08	0.8	0.76-0.85	0.9
SCD111 09	0.9	0.86-0.95	1.0
SCD111 10	1.0	0.96-1.05	1.1
SCD111 11	1.1	1.06-1.15	1.2
SCD111 12	1.2	1.16-1.23	1.3
SCD111 13	1.3	1.26-1.35	1.4
SCD111 14	1.4	1.36-1.45	1.45
SCD111 15	1.5	1.46-1.55	1.5

Key Applications

Stainless Steel Wire
Ultra-Fine Wires: Tungsten/Molybdenum (medical guidewires, SEM probes)
Precious Metals: Gold/Silver/Platinum (jewelry, electronic contacts)
Special Alloys: NiTi/Titanium
Industrial Wires: Copper/Aluminum (enameled wires, welding wires)

Features & Advantages

1. Engineered Crystal Structure

(111) plane aligned with <110> drawing direction for maximum shear resistance
Microhardness: 80-150 GPa
Young's Modulus: 1150-1300 GPa

2. Defect-Free Performance

No visible inclusions/cracks (20x optical microscopy inspection)

3. Proven Durability

＞4,000km service life in φ0.03mm copper wire production
85% lower cracking rate vs carbide dies in tungsten processing

4. Thermal Stability

＜0.005mm bore deformation at 1200℃
Efficient heat dissipation prevents wire oxidation

HPHT Diamond vs Traditional Materials

Comparison Aspect	HPHT Diamond	PCD	Cemented Carbide
Material Structure	Single crystal, no cracks	Grain-boundary prone	Porous, wears quickly
Service Life	Longest-lasting	Moderate lifespan	Frequent replacement
Precision	Mirror-smooth wire surface	Grain-induced roughness	Requires repolishing
Cost Efficiency	Lowest total cost	Mid-range value	Low upfront, high hidden
Versatility	Handles all metals	Struggles with soft metals	Basic copper/aluminum

HPHT diamond acts like an "indestructible warrior" - more durable than PCD and more precise than carbide. Slightly higher initial cost, but saves money and hassle in the long run.

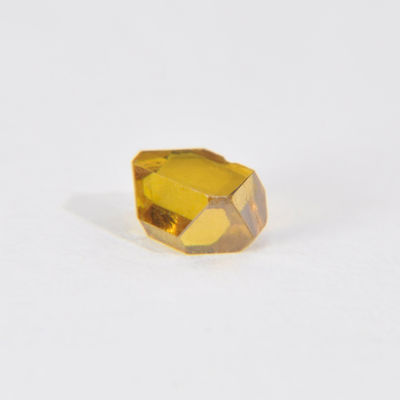

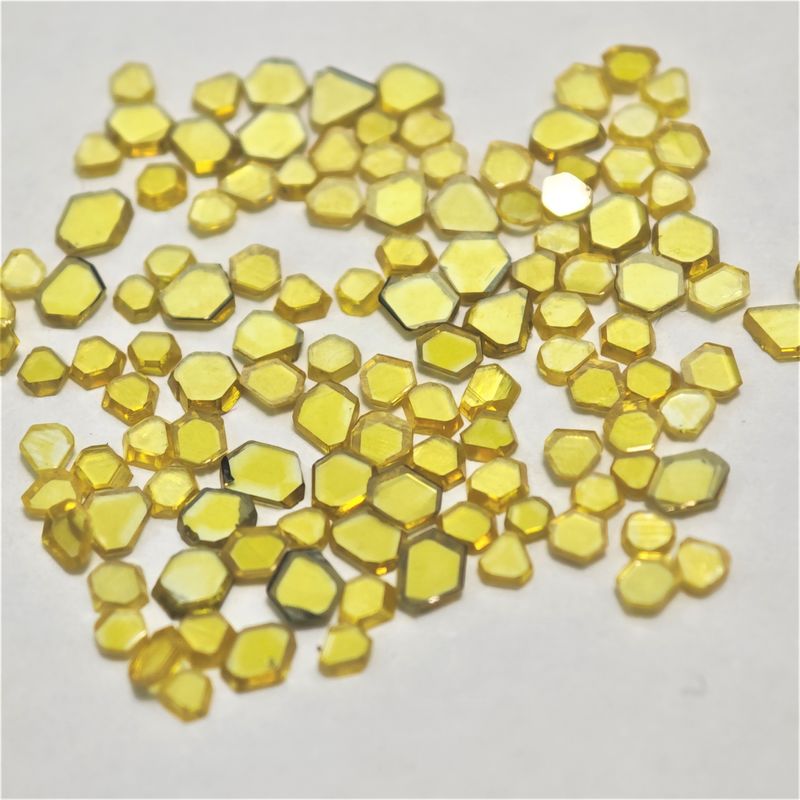

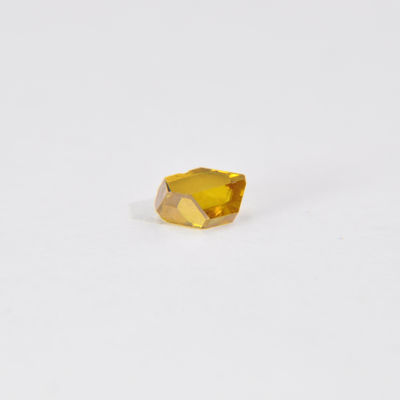

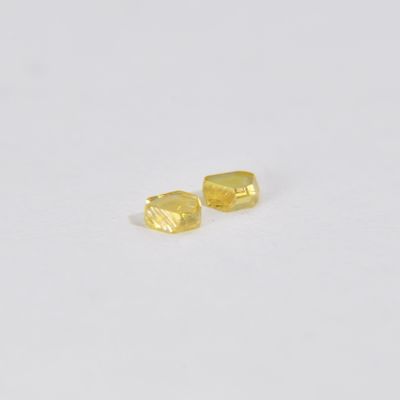

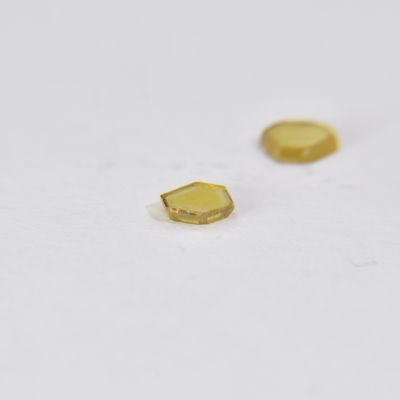

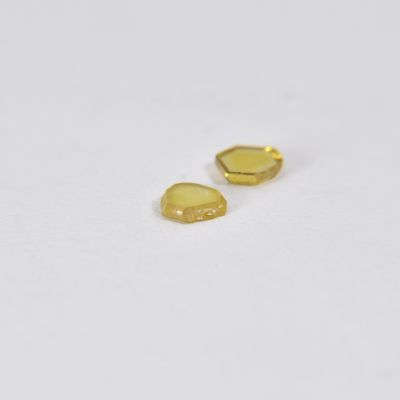

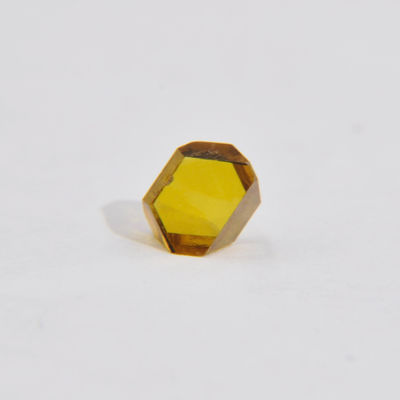

Product Pictures
