Cubes/Rectangles Mechanical Grade Single Crystal CVD Diamonds

Product Details:

Place of Origin:	China
Brand Name:	INFI
Model Number:	Cubes/Rectangles

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Courier Box
Supply Ability:	1000

Contact Now

Detailed Product Description

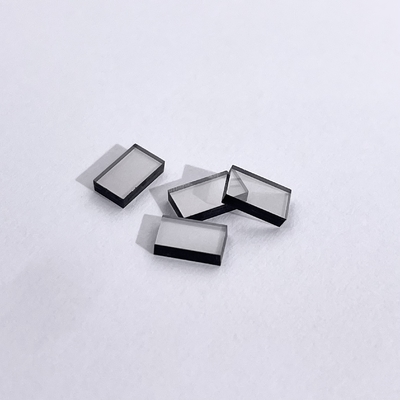

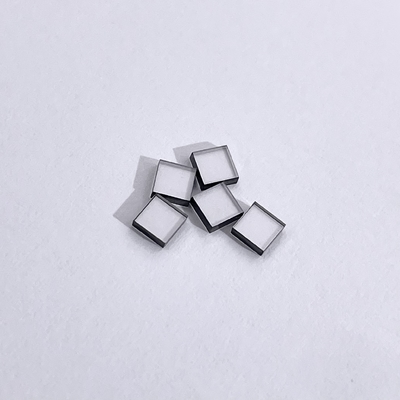

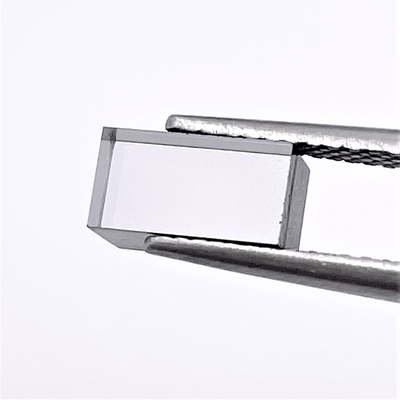

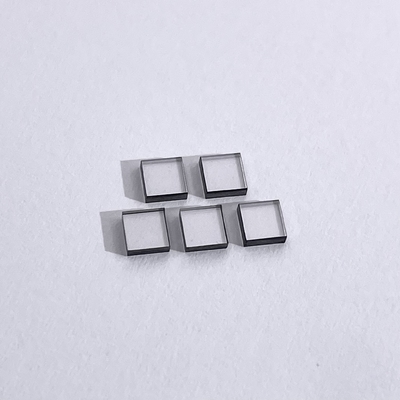

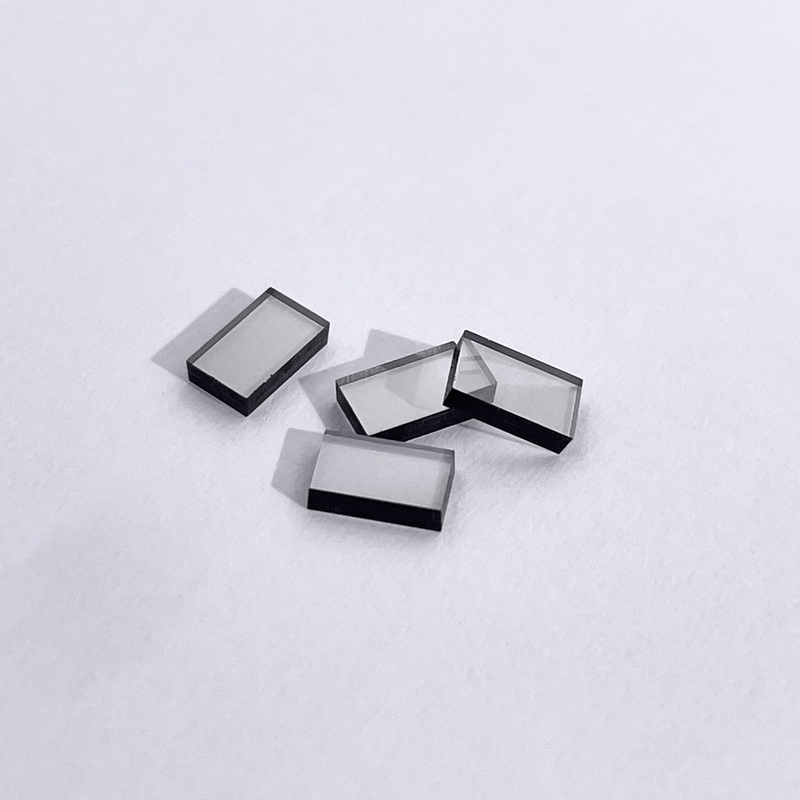

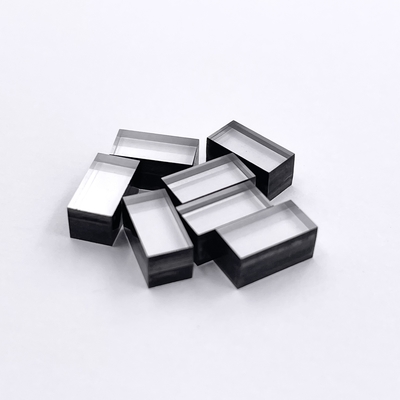

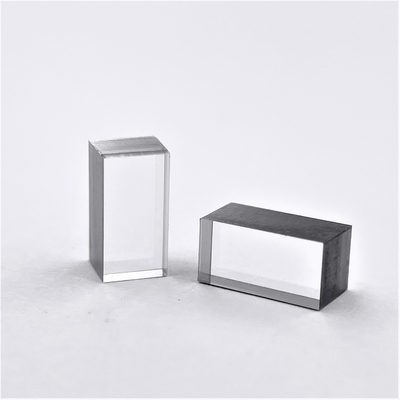

Cubes/Rectangles Mechanical Grade Single Crystal CVD Diamonds

Premium Quality CVD Diamond Properties

Our single crystal CVD diamonds offer exceptional material properties including:

High hardness and superior wear resistance
Excellent strength and high elastic modulus
Outstanding thermal conductivity
Low friction coefficient with good adhesion resistance
Superior corrosion resistance and chemical stability

These properties make them ideal for precision and ultra-precision cutting tool applications.

Mechanical Grade CVD Diamond Applications

Milling and cutting tools
Wire drawing machine dies
Surgical instruments (blades, ophthalmic/neurosurgical scalpels, ultra-thin biological slicers)
Diamond dressing tools
Water jet nozzle orifices

Technical Specifications

Available size	2~20mm
Available thickness	0.2mm - 3mm
Lateral tolerance	+0.15, -0mm
Thickness tolerance	+0.1, -0.05mm
Face orientation	{100}> or {110}
Crystallographic Orientation (Miscut)	±3°
Surface finish	Polished, Ra<10nm
Edges	Laser Cut
Laser Kerf	<3°

Customization available for length, width, thickness, shape, and crystal orientation.

Common Crystal Orientations

Standard Product Sizes

Product Size	Length (mm)	Width (mm)	Thickness (mm)
L303010	3.0	3.0	1.0
L403010	4.0	3.0	1.0
L503010	5.0	3.0	1.0
L603010	6.0	3.0	1.0
L703010	7.0	3.0	1.0
L803010	8.0	3.0	1.0
L903010	9.0	3.0	1.0
L1003010	10.0	3.0	1.0
L1103010	11.0	3.0	1.0
L1203010	12.0	3.0	1.0
L1303010	13.0	3.0	1.0
L1403010	14.0	3.0	1.0
L1503010	15.0	3.0	1.0

Maximum dimensions available: Length up to 20mm, Width up to 7mm

Available thickness options: 0.1mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1.2mm, 1.5mm, 1.7mm, 2.0mm
