Name: Colorless 8X8 Monocrystalline Diamond 0.3mm CVD Single Crystal Diamond
Brand: Shaper Diamond Technology Co., Ltd
SKU: CVD
Price: 1,000.00 USD
Availability: InStock

Home Products MCD Diamond

Colorless 8X8 Monocrystalline Diamond 0.3mm CVD Single Crystal Diamond

Product Details:

Place of Origin:	Hunan, China
Brand Name:	Infi
Model Number:	CVD

Payment & Shipping Terms:

Minimum Order Quantity:	1-1000PCS
Price:	To be negotiated
Packaging Details:	Plastic bag, opp box or requsted
Delivery Time:	3-7 Work days
Payment Terms:	T/T
Supply Ability:	>1000PCS To be negotiated

Contact Now

Detailed Product Description

Customized Support:	OEM, ODM	Color:	Colorless
Orientation:	4pt/100	Application:	CVD Seeds, Research
Shape:	Square， Retangle	Grade:	Normal Grade
Highlight:	8X8 Monocrystalline Diamond , Colorless Monocrystalline Diamond , 0.3mm CVD Single Crystal Diamond

Colorless 8X8 Monocrystalline Diamond 0.3mm CVD Single Crystal Diamond

Product Specifications

Customized support	OEM, ODM
Color	Colorless
Orientation	4pt/100
Application	CVD seeds, research
Shape	Square, Rectangle
Grade	Normal grade

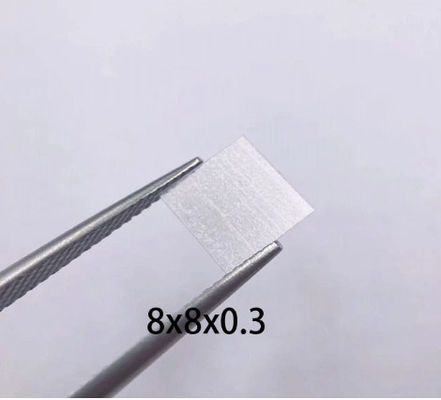

8 X 8 X 0.3 Monocrystalline CVD Diamond Seeds

We supply high-quality CVD diamond seeds in bulk quantities to companies and research institutes worldwide. Our seeds range in size from 3mm to 20mm and are renowned for their exceptional quality and high customer satisfaction rate.

Key Features

Our monocrystalline diamond seeds feature few defects and serve as excellent substrates for CVD single crystal diamond growth. They enhance grown diamond quality and purity while increasing reuse frequency and reducing seed costs.

Available Sizes

3x3x0.3	4x4x0.3	5x5x0.3
6x6x0.3	7x7x0.3	8x8x0.3
9x9x0.6	10x10x0.3	11x11x0.3
12x12x0.3	13x13x0.3	15x15x0.3

Product Advantages

Precisely controlled dimensions with regular shapes and uniform sizes
High cost performance with excellent customer satisfaction and repurchase rates
No visible growth lines and impurity-free under 100x magnification
Optimal stress characteristics for high reuse frequency and crack resistance
Superior quality compared to other seeds available in the market

Technical Specifications

Crystal growth process	Single crystal CVD
Color	Near colorless
Orientation	4pt/100
Shape	Square, Rectangle
Edges	Green Laser Cut
Laser Kerf	< 2°
Lateral Tolerance	+0.2/-0 mm
Thickness Tolerance	+0.1mm/-0 mm
Roughness Options (Ra)	1. Two sides polished, Ra < 10 nm 2. One side polished, other side is cutting/growth surface 3. Both sides unpolished
