Single Crystal CVD Optical Diamonds | Round Optical Window Premium Choice

Product Details:

Place of Origin:	China ， Hunan
Brand Name:	INFI
Model Number:	Round Optical Diamond

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Please contact us
Packaging Details:	Courier Box
Supply Ability:	1000

Contact Now

Detailed Product Description

Single Crystal CVD Optical Diamonds | Round Optical Window Premium Choice

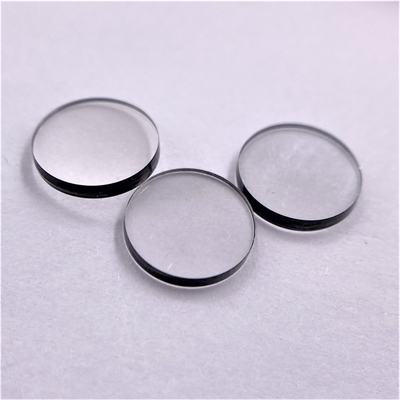

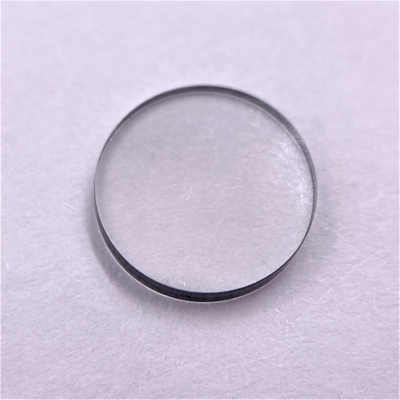

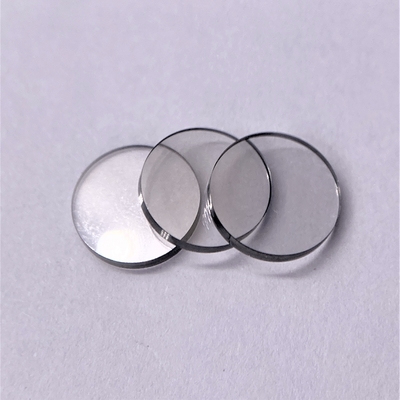

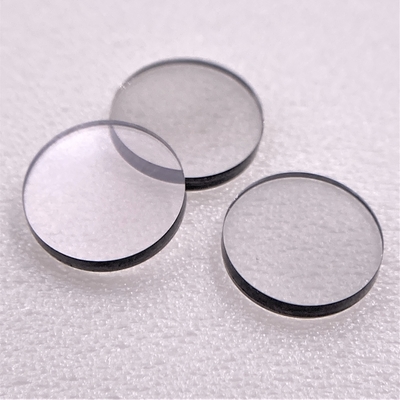

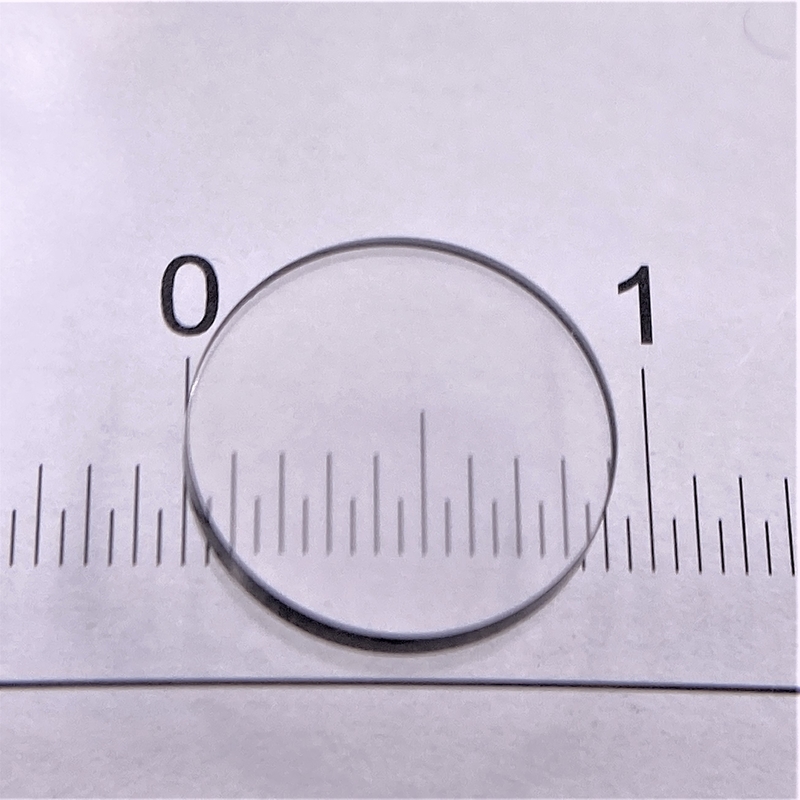

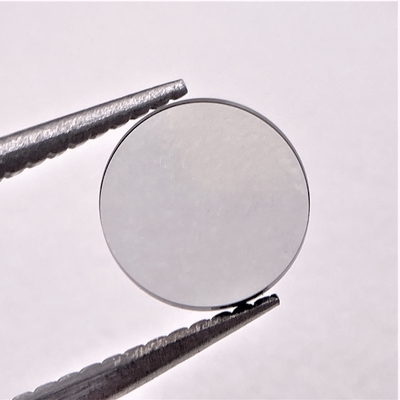

Round Optical Single Crystal CVD Diamonds

Featuring exceptional optical and physical properties, optical-grade CVD single crystals provide excellent transmission, high-quality crystal structure, dimensional stability, wear resistance, and thermal stability. They satisfy rigorous requirements for optical equipment, improving reliability and performance in diverse optical fields.

Key Properties

With broad wavelength transmission and low IR scatter, CVD diamond is chemically inert and extremely hard. This makes it optimal for high-power, large-area applications needing strength and hazardous material resistance. Such capabilities permit compact material geometries for lightweight solutions, while diamond processing innovations address new optical problems.

Industry Applications

Laser optics (resonators/output windows/mirrors)
Telescopes, cameras, and sensor lenses
Interferometer components (mirrors/beam splitters/gratings)
Spectrometers, scanners, and photodetectors
Astronomical observation devices
Fiber optic communication components
Interferometers and Raman spectrometers
Medical imaging (endoscopes/microscopes/laser devices)
Laser etching systems

Performance Benefits

Miniaturized Design: 50% size reduction vs traditional optics

Wide Operational Range: Functions from -200°C to 850°C

Signal Clarity: 40 dB improved SNR over sapphire alternatives

Specification

Available size	Up to 15*15mm²
Available thickness	0.1~2mm
Lateral tolerance	+0.1,-0mm
Thickness precision	±0.02mm @≤10mm ±0.03mm @10~15mm
Face orientation	{100}
Surface finish	Polished, Ra<2nm
Edges	Laser Cut
Laser Kerf	<3°
Density	3.52g/cm³
Raman FWHM	~2.1cm-1
Nitrogen concentation	<0.5ppm
Thermal conductivity	1900~2200W/(m*K) @300 K
Transmission	>70% @1064nm
Refractiveindex	2.379 @10.6um
