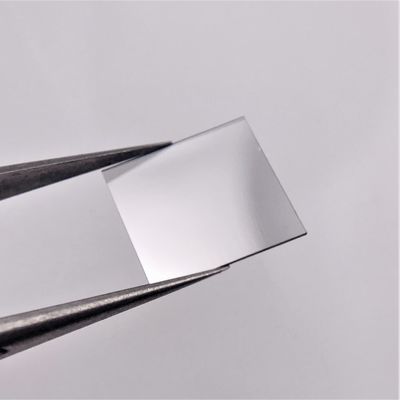

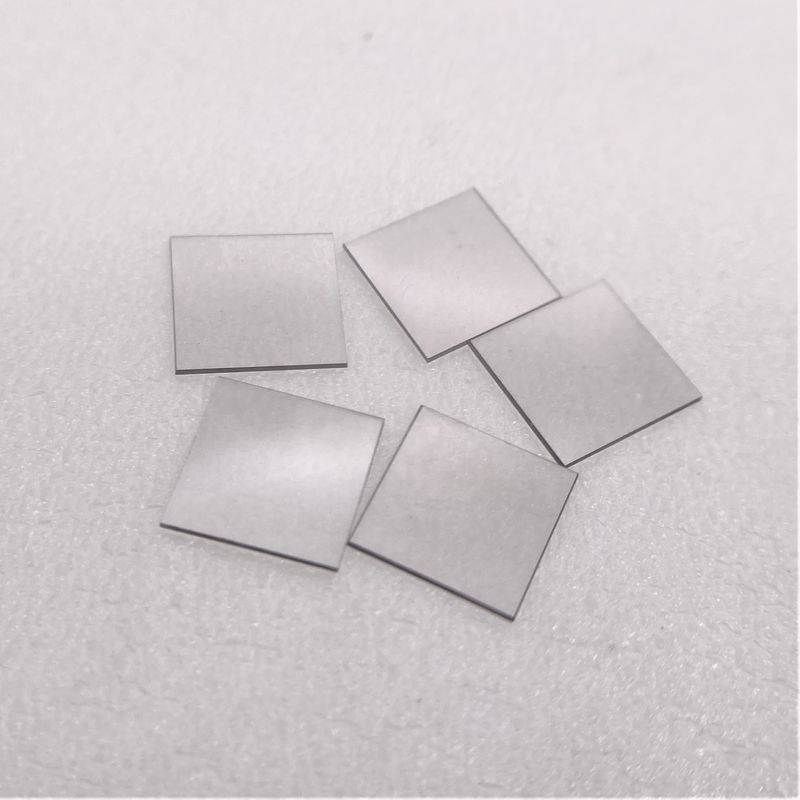

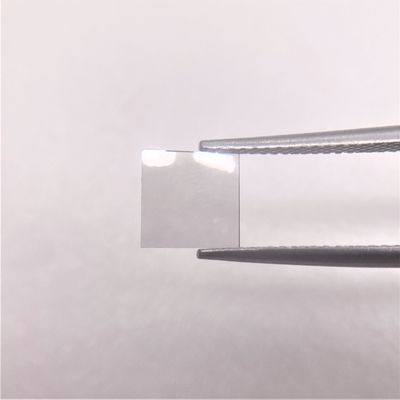

High Quality CVD Diamond | Optical-Grade Single Crystal CVD Diamond: Superior Light Transmission
Product Properties
Refractive Index (1064nm) 2.392
Refractive Index (600nm) 2.415
Transmission (1064nm) ＞68%
Transmission (8μm-25μm) ＞70%
Thermal Conductivity ＞2000 W/mK
Crystallographic Orientation 100 110 111
Miscut for Main Face Orientation ±3°
Common Product Size 2mm×2mm×6mm
2mm×2mm×7mm
4mm×4mm×7mm
Transverse Tolerance ±0.05mm
Thickness Tolerance ±0.1mm
Parallelism ＜2′
Surface Roughness ＜10nm
Edge Cutting Laser Cutting
CVD-grown diamond achieves unmatched optical performance with the broadest transmission spectrum among solids - spanning 225 nm (UV) to 25 μm (IR) excluding 1.8-2.5 μm - plus exceptional microwave transparency. Its unique fusion of radiation resistance, extreme hardness, thermal conductivity, chemical inertness, and ultra-low expansion establishes it as the premier infrared optical window solution.
Critical Performance Specifications
  • Refractive Index: ~2.4 enabling high-efficiency transmission across 1-30 μm mid-IR bands
  • Surface Precision: <50 nm roughness for minimal light scattering
  • Dimensional Accuracy: Maximum 0.2 mm tolerance

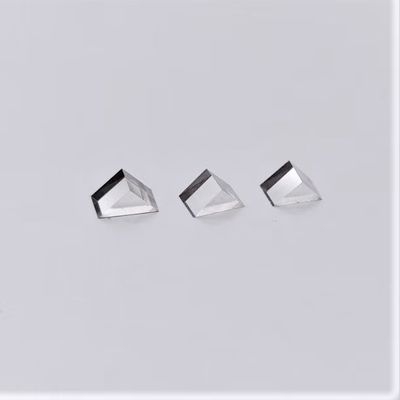

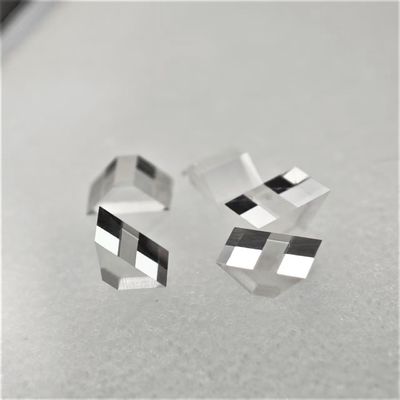

  • Triangular Prism Optimization: Ideal for infrared radiation measurement systems
High-Performance Applications
  • Laser Systems: CO₂ lasers, disc lasers, Raman lasers
  • Long-Wave IR Detection: 8-14 μm imaging sensors
  • Spectroscopic Analysis: Precision wavelength measurement
  • RF Power Systems: Gyrotrons and high-power generators
  • Advanced Optics: Miniaturized diamond lenses
Engineering Advantages
  • Minimal Optical Scatter: Maintains clarity in demanding IR environments
  • Hazard Resistance: Withstands corrosive/abrasive conditions
  • Geometric Flexibility: Enables compact, high-strength optical designs
  • Material Innovation: Cutting-edge shaping techniques solve complex optical challenges
