Polycrystalline CVD Diamond

Product Details:

Place of Origin:	China
Brand Name:	INFI

Payment & Shipping Terms:

Price:	Please contact customer service

Contact Now

Detailed Product Description

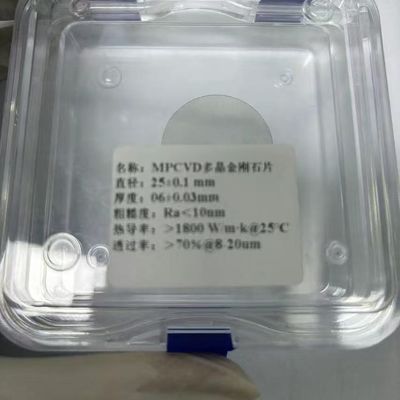

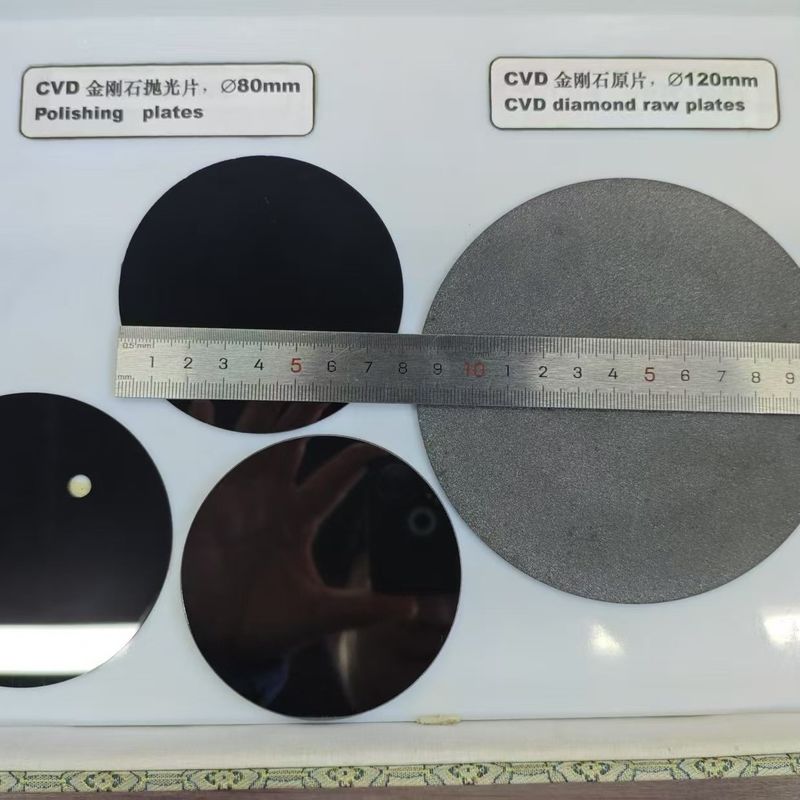

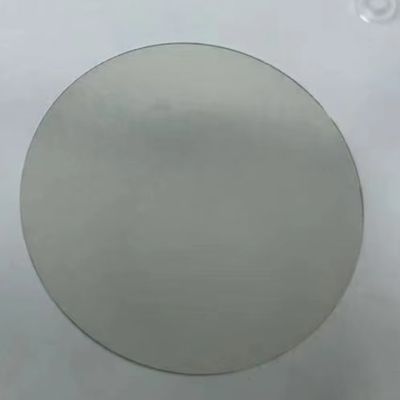

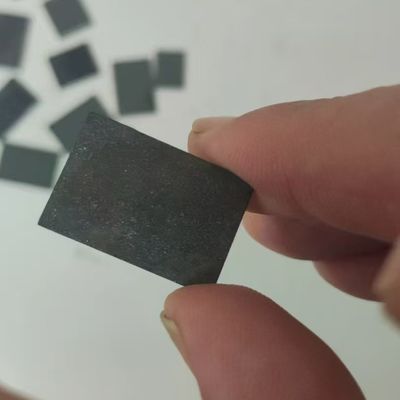

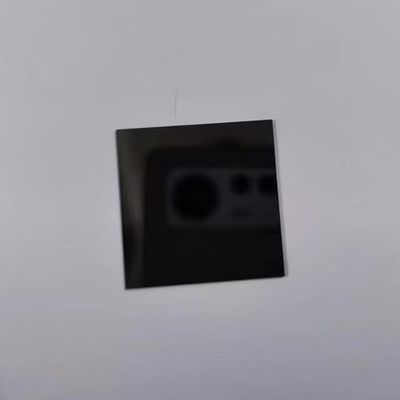

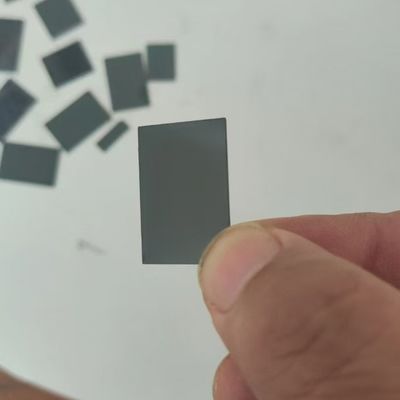

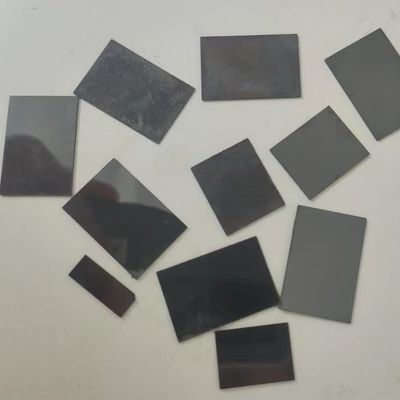

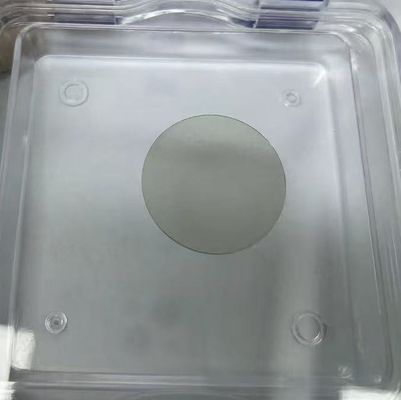

Polycrystalline CVD Diamond

Chemical Vapor Deposition (CVD) is a process that uses gaseous or vaporous substances in the gas phase or gas-solid interface reaction to generate solid-state deposits. Under low-pressure conditions, carbon-containing gas is activated to create supersaturated carbon atoms on substrate (seed crystals), which deposit and grow into diamond. This method involves a series of chemical reactions during carbon source activation and deposition.

Product Characteristics

No metallic or non-metallic additives
High hardness and wear resistance with easy processing
Excellent thermal conductivity and full-band electromagnetic wave transmission
Chemically stable against acid and alkali corrosion
Customization services available

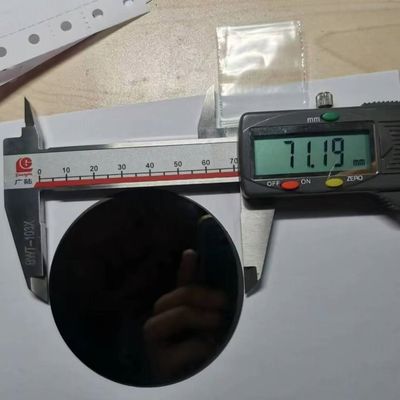

Standard specifications include Φ50.8×0.3mm, Φ50.8×0.4mm, Φ25.4×0.3mm, Φ25.4×0.4mm, with custom dimensions available

Product Properties

Optical Properties

Useful transmission range	Full-band transmission of electromagnetic wave
Refractive index	2.41@5900A

Physical Properties

Density	3.52 g/cm³
Sonic velocity	>16,000 m/s

Thermal Properties

Thermal conductivity

800~2000 W/m*k

Mechanical Properties

Young's modulus	>1,000 GPa
Hardness (Knoop)	>8,000 kg/mm²
Fracture toughness	5~7 Mpa
Fracture energy	25 J/M
Flexural strength	500~1,000 MPa
Compressive strength	9 GPa
Friction coefficient	0.1 (Relative to steel)
