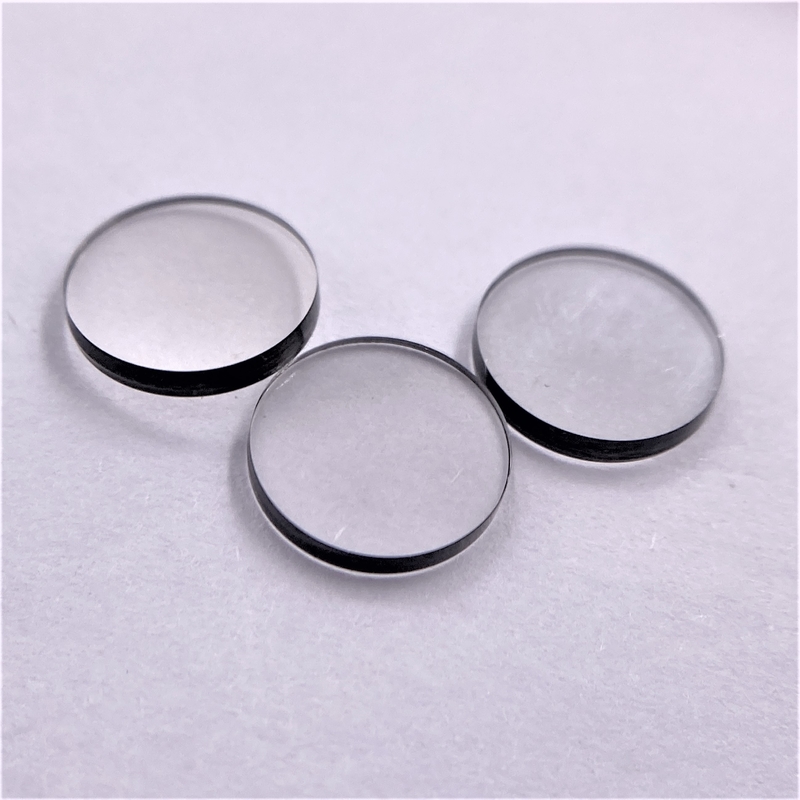

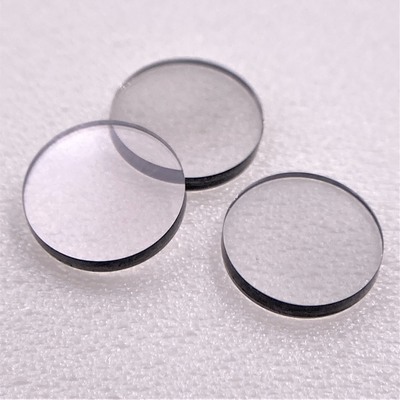

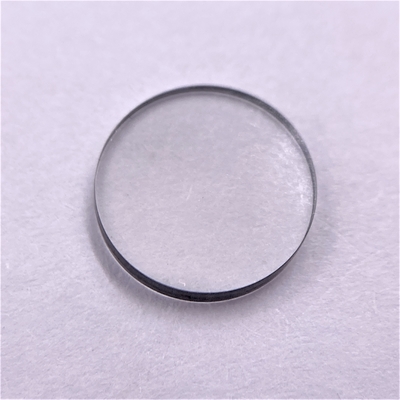

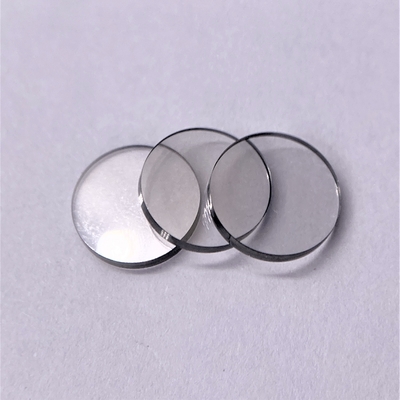

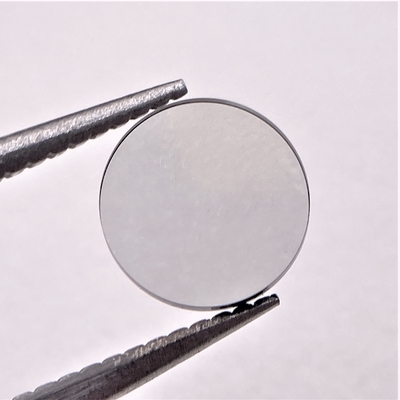

Round Optical CVD Diamond Components | Optical Grade Single Crystal CVD Diamonds

Product Details:

Place of Origin:	China ， Hunan
Brand Name:	INFI
Model Number:	Round Optical Diamond

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Please contact us
Packaging Details:	Courier Box
Supply Ability:	1000

Contact Now

Detailed Product Description

Round Optical CVD Diamond Components | Optical Grade Single Crystal CVD Diamonds

Optical Grade Single Crystal CVD Diamonds

These optically classified CVD single crystals offer exceptional optical and physical properties including superior light transmission, premium crystalline structure, dimensional stability, wear resistance, and high-temperature tolerance. Engineered to meet the most demanding requirements for optical systems, they significantly enhance performance and reliability across diverse optical applications.

Optical Applications

Laser Components: Resonators, output windows, mirrors
Windows & Lenses: Telescopes, cameras, sensors
Interferometer Elements: High-precision mirrors, beam splitters, gratings
Sensors: Spectrometers, optical scanners, photodetectors
Astronomical Observation Instruments
Fiber Optic Communication: Couplers, modulators, demodulators
Precision Measurement: Interferometers, Raman spectrometers
Medical Imaging: Endoscopes, optical microscopes, laser devices
Industrial: Laser etching equipment

Competitive Advantages

Compact Component Design: 50% smaller than conventional optics

Extreme Temperature Operation: -200°C to 850°C range

Enhanced Signal Integrity: 40 dB higher SNR vs. sapphire windows

Material Properties

CVD diamond provides exceptionally high broadband wavelength transmission with minimal IR scatter. Its extreme hardness and chemical inertness make it ideal for high-power, large-area applications requiring hazardous material resistance and strength. These properties enable compact geometries for lightweight solutions. Advanced diamond shaping techniques address novel optical challenges.

Specifications

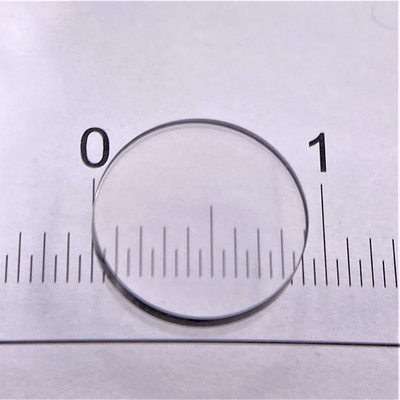

Available size	Up to 15*15mm²
Available thickness	0.1~2mm
Lateral tolerance	+0.1,-0mm
Thickness precision	±0.02mm @≤10mm ±0.03mm @10~15mm
Face orientation	{100}
Surface finish	Polished, Ra<2nm
Edges	Laser Cut
Laser Kerf	<3°
Density	3.52g/cm³
Raman FWHM	~2.1cm-1
Nitrogen concentration	<0.5ppm
Thermal conductivity	1900~2200W/(m*K) @300 K
Transmission	>70% @1064nm
Refractive index	2.379 @10.6um
