Polycrystalline CVD logs | for Diamond Multi-Point Dressers

Product Details:

Place of Origin:	China
Brand Name:	INFI
Model Number:	Logs

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Courier Box
Supply Ability:	1000

Contact Now

Detailed Product Description

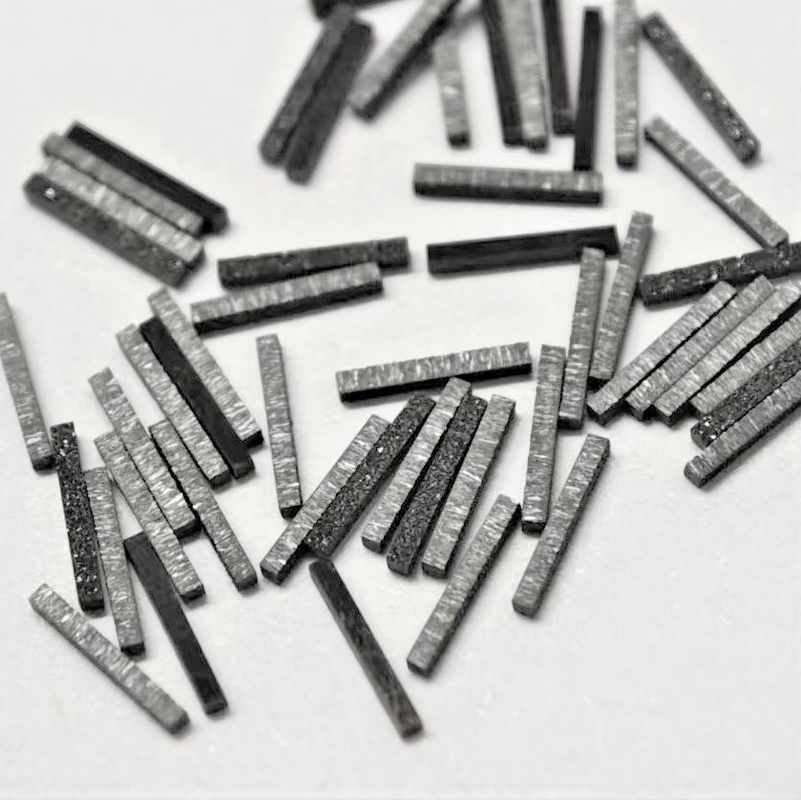

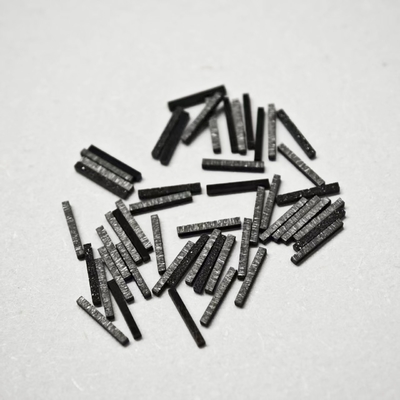

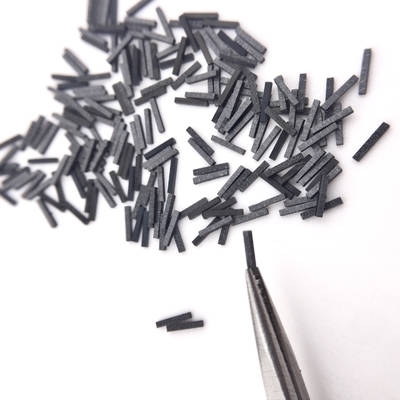

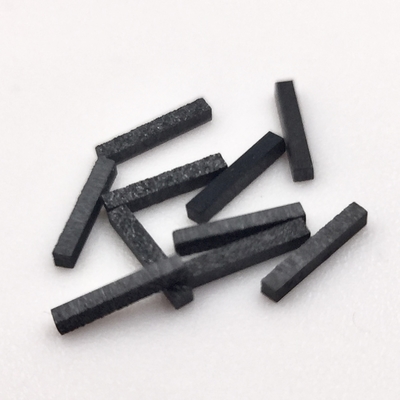

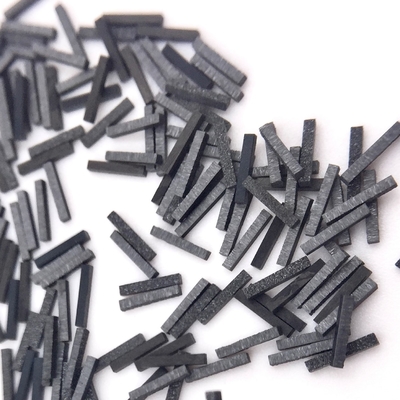

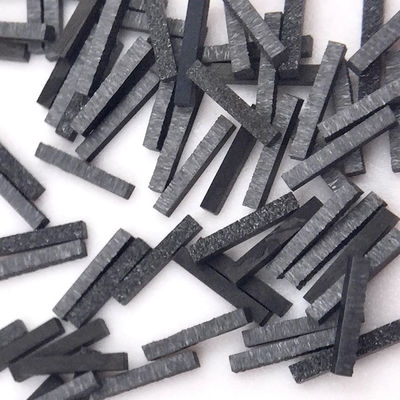

Polycrystalline CVD Logs for Diamond Multi-Point Dressers

These high-performance CVD Polycrystalline logs are engineered for manufacturing diamond bar dressers, delivering exceptional stability and longevity in precision machining and grinding wheel conditioning applications.

Key Features

Uniform wear characteristics for extended tool life
Superior chipping resistance for high-volume applications
Excellent for precision grinding and complex profile machining
Reduces downtime through improved operational efficiency

Standard Sizes

3×0.6×0.6 mm

3×0.8×0.8 mm

3×1.0×1.0 mm

3×1.2×1.2 mm

4×0.4×0.4 mm

4×0.6×0.6 mm

4×0.8×0.8 mm

4×1.0×1.0 mm

4×1.2×1.2 mm

4×1.5×1.5 mm

5×0.6×0.6 mm

5×0.8×0.8 mm

5×1.0×1.0 mm

5×1.2×1.2 mm

6×0.6×0.6 mm

6×0.8×0.8 mm

6×1.0×1.0 mm

6×1.2×1.2 mm

Material Properties

High hardness and exceptional wear resistance
Superior strength and elevated elastic modulus
Excellent thermal conductivity
Minimal friction coefficient
Strong adhesion resistance
Remarkable chemical stability and corrosion resistance

Custom Dimensions Available

Width: Up to 7mm
Length: Up to 20mm
Thickness: 0.1mm to 2.0mm in various increments

Technical Specifications

Available size	2-20mm
Available thickness	0.2mm - 3mm
Lateral tolerance	+0.15, -0mm
Thickness tolerance	+0.1, -0.05mm
Edges	Laser Cut
Laser Kerf	<3°

Also available in other materials (CVD/MCD):
