Custom HPHT Diamond Logs | Precision Grinding Wheel Dressing Tools

Product Details:

Place of Origin:	China
Brand Name:	INFI
Model Number:	Logs

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Courier Box
Supply Ability:	1000

Contact Now

Detailed Product Description

Custom HPHT Diamond Logs | Precision Grinding Wheel Dressing Tools

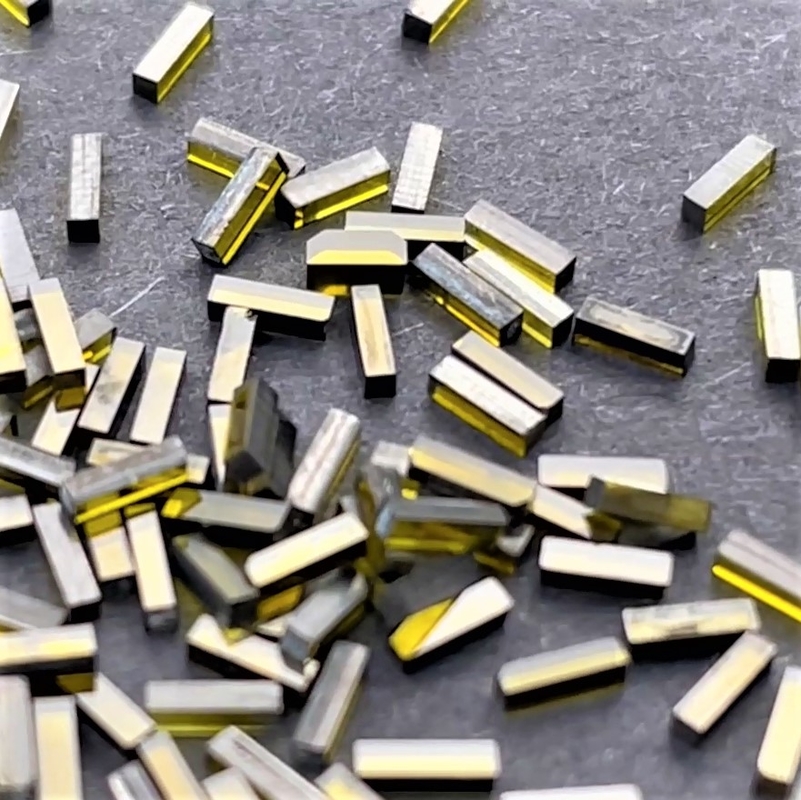

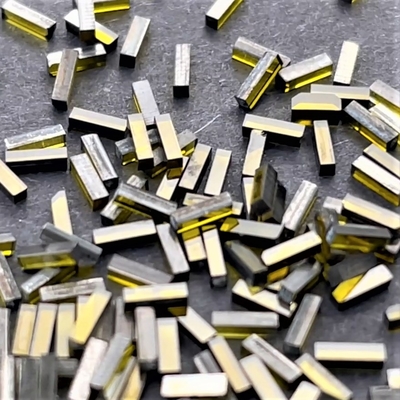

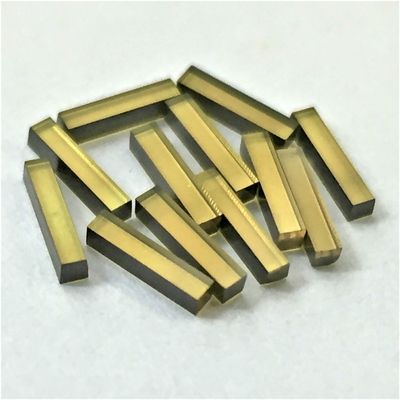

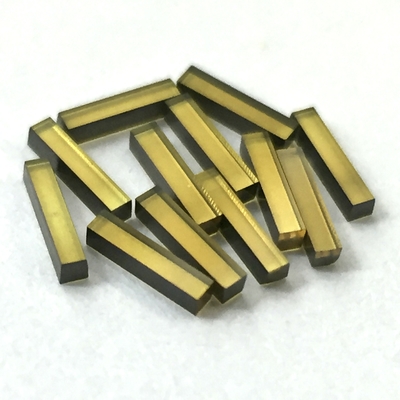

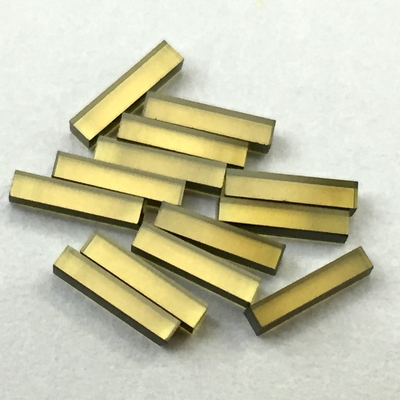

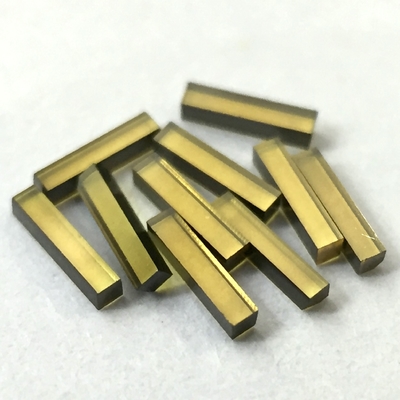

HPHT Diamond Logs | Robust Dressing Solutions for Grinding Applications

Manufactured from pure single crystal diamonds, these HPHT diamond logs are precision-engineered for high-performance bar dresser production. They provide exceptional stability and durability in demanding operations, especially for precision machining and grinding wheel conditioning.

Key Attributes

Easy edge sharpening
Excellent toughness and edge collapse resistance
Superior sharpness for complex precision dressing

Material Characteristics

Exhibits high hardness, outstanding wear resistance, superior strength, high elastic modulus, efficient thermal conductivity, low friction coefficient, strong adhesion resistance, along with exceptional corrosion resistance and chemical stability - satisfying all precision cutting tool requirements.

Primary Applications

Diamond Multi-point/Strip Dressing Pens
Flat Tip & Pointed Tip Grinding Wheel Dressing Pens
Diamond Pen Plate Dressing Knives
Diamond Dressing Rollers

Industrial Implementation

Abrasive wheel conditioning via precision dressers
Non-metallic/non-ferrous material processing with specialized blades
Surface finishing refinement using burnishing instruments
High-friction environment wear-resistant components
Custom tooling for niche manufacturing

Standard Dimensions

3x0.6x0.6

3x0.8x0.8

3x1.0x1.0

3x1.2x1.2

4x0.4x0.4

4x0.6x0.6

4x0.8x0.8

4x1.0x1.0

4x1.2x1.2

4x1.5x1.5

Customization Capabilities

Maximum length: 20mm
Maximum width: 7mm
Thickness options: 0.1mm to 2.0mm in various increments
Variable shapes and crystal orientations

Technical Specifications

Available size	2~20mm
Available thickness	0.2mm - 3mm
Lateral tolerance	+0.15,-0mm
Thickness tolerance	+0.1,-0.05mm
Face orientation	{100}> or {110}
Crystallographic Orientation (Miscut)	±3°
Surface finish	Polished, Ra<10nm
Edges	Laser Cut
Laser Kerf	<3°
