Precision-Grade CVD Diamond Logs | Custom Sizes for Industrial Tooling

Product Details:

Place of Origin:	China
Brand Name:	INFI
Model Number:	Logs

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Courier Box
Supply Ability:	1000

Contact Now

Detailed Product Description

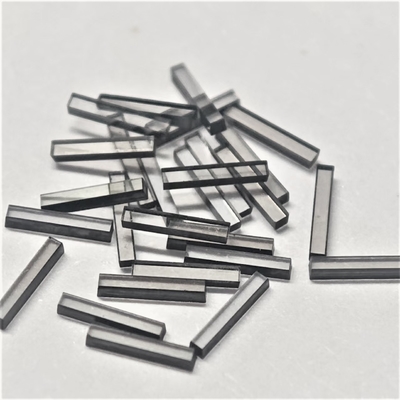

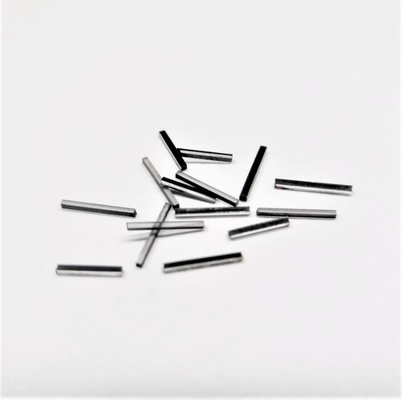

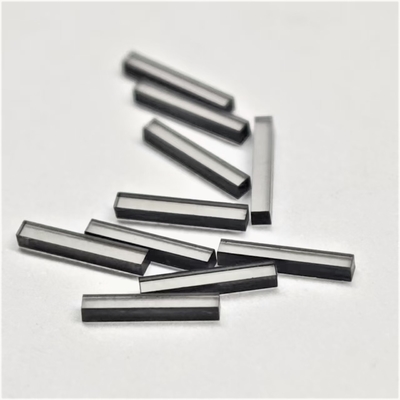

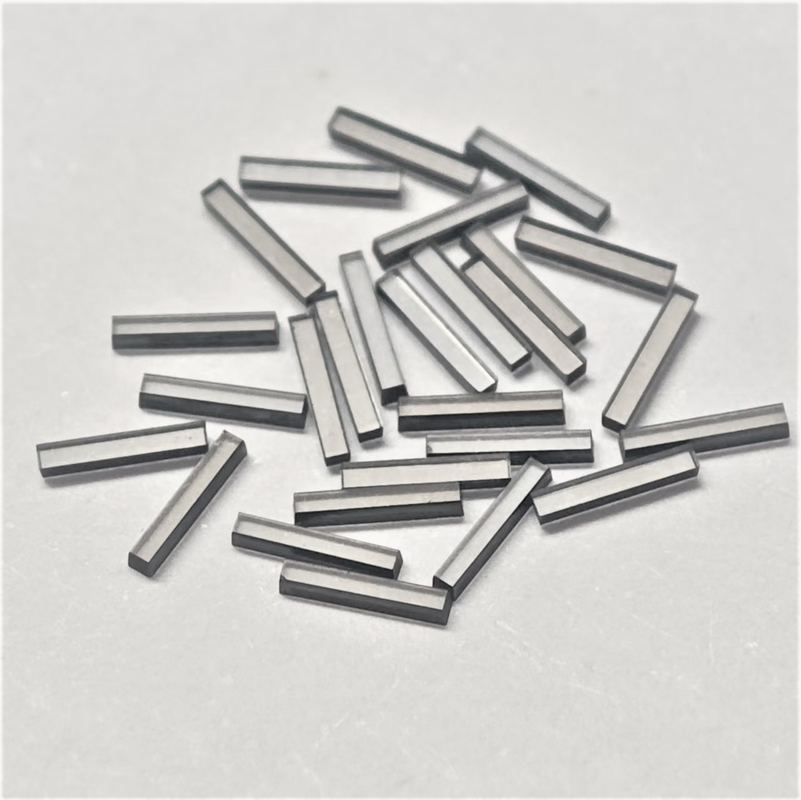

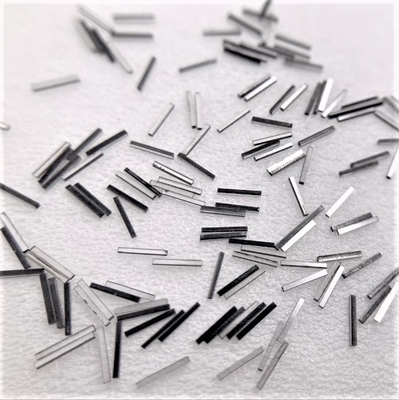

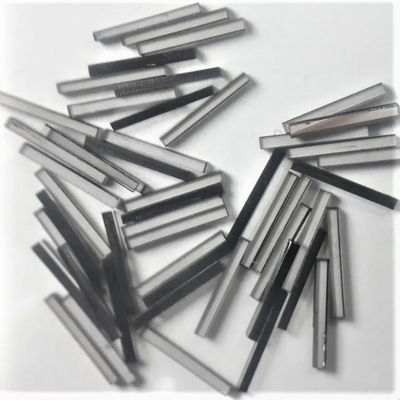

Precision-Grade CVD Diamond Logs | Custom Sizes for Industrial Tooling

These industrial-grade CVD diamond logs are precision-crafted from pure single crystal diamonds, specifically designed for manufacturing high-performance bar dressers. They deliver unmatched durability and stability in rigorous applications, particularly for grinding wheel conditioning and precision machining tasks.

Critical Performance Features

Enables complex profile machining and precision grinding
Enhances operational efficiency with reduced downtime
Ensures reliable bulk supply via scalable production

Industry Utilization

Conditioning abrasive wheels with precision dressers
Processing non-metallic/non-ferrous materials with specialized blades
Refined surface finishing using burnishing tools
Wear-resistant components for high-friction settings
Custom tooling solutions for niche manufacturing

The material boasts exceptional characteristics: high hardness, excellent wear resistance, superior strength, elevated elastic modulus, effective thermal conductivity, minimal friction coefficient, strong adhesion resistance, coupled with remarkable corrosion resistance and chemical stability - fulfilling all criteria for precision cutting tools.

Mechanical Grade CVD Applications Include:

Cutting tools and milling equipment
Dies for wire drawing machines
Surgical instruments (ophthalmic/neurosurgical blades, biological slicers)
Tool dressing solutions
Orifices for water jet nozzles

Dimension Customization:

Custom lengths up to 20mm
Custom widths up to 7mm
Available thicknesses: 0.1mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1.2mm, 1.5mm, 1.7mm, 2.0mm
Adjustable shapes and crystal orientations

Technical Specifications

Available size	2~20mm
Available thickness	0.2mm - 3mm
Lateral tolerance	+0.15,-0mm
Thickness tolerance	+0.1,-0.05mm
Face orientation	{100}> or {110}
Crystallographic Orientation (Miscut)	±3°
Surface finish	Polished, Ra<10nm
Edges	Laser Cut
Laser Kerf	<3°
