Precision CVD Diamond for Industrial Tools / Semi-circular shape

Product Details:

Place of Origin:	China
Brand Name:	INFI
Model Number:	Semicircular

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Courier Box
Supply Ability:	1000

Contact Now

Detailed Product Description

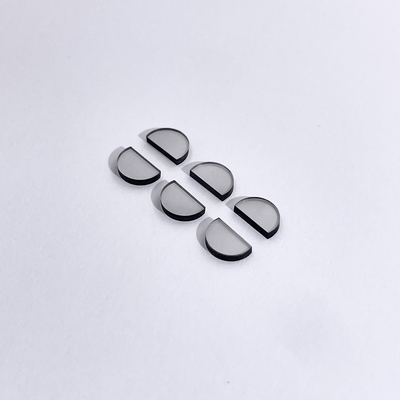

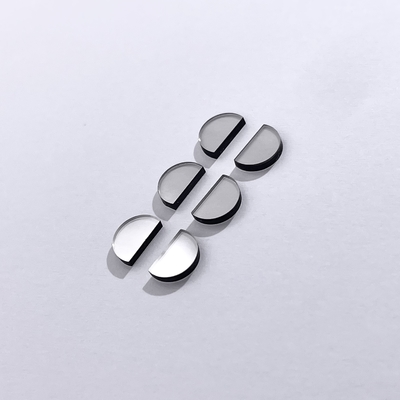

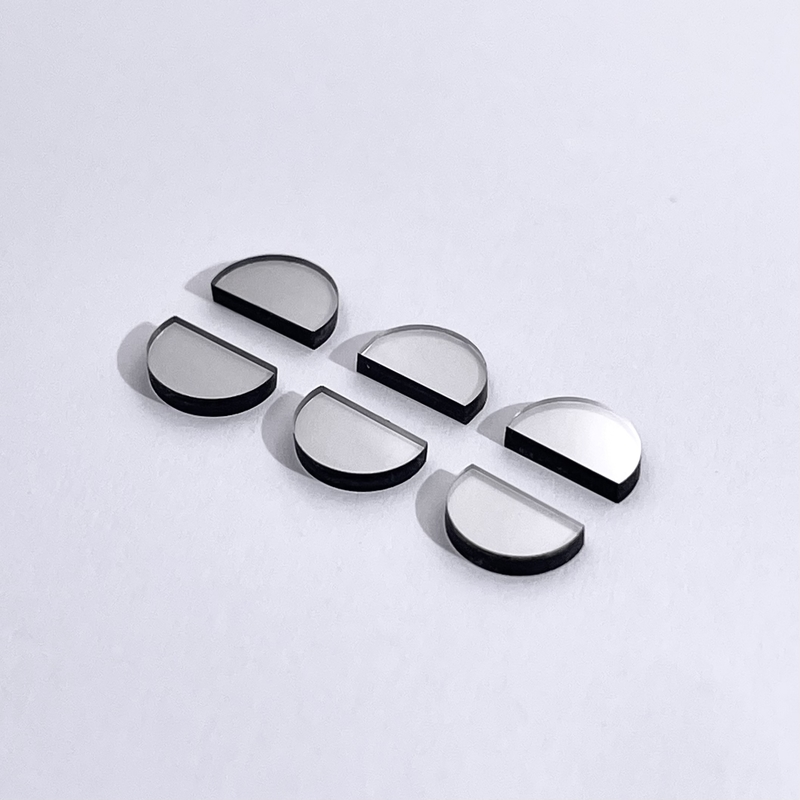

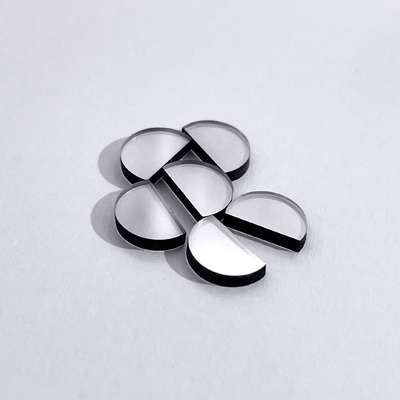

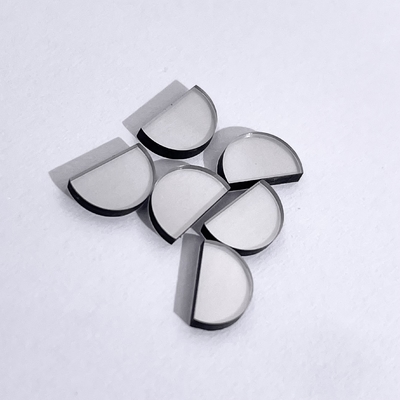

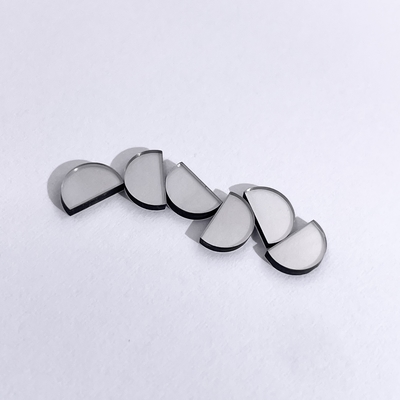

Precision CVD Diamond for Industrial Tools / Semi-circular shape

Product Overview

Semi-circular shape of mechanical-grade single crystal CVD diamond offering:

Maximum hardness and wear resilience
High strength/elastic modulus
Optimal thermal transfer
Chemical/corrosion immunity
Low friction and anti-adhesion

Certified for precision cutting applications.

Application Scope

Diamond dressing systems
Water jet nozzle components
Wire drawing die inserts
Cutting/milling tooling

Configurable Dimensions

Length capacity: ≤20mm
Width capacity: ≤7mm
Standard thicknesses: 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.2, 1.5, 1.7, 2.0mm
Orientation/shape personalization

Technical Specifications

Available size	2~20mm
Available thickness	0.2mm - 3mm
Lateral tolerance	+0.15,-0mm
Thickness tolerance	+0.1,-0.05mm
Face orientation	{100}> or {110}
Crystallographic Orientation (Miscut)	±3°
Surface finish	Polished, Ra<10nm
Edges	Laser Cut
Laser Kerf	<3°

Production Method

Synthetic diamond (lab-grown/CVD/chemical vapor deposition diamond) is manufactured artificially. Two primary methods exist:

HPHT: High-pressure (5 GPa) high-temperature (1500°C) press-based synthesis

CVD: Low-pressure (<27 kPa) substrate deposition providing:

Large-area coverage
Material property control
Versatile substrate compatibility
