Name: Semicircular mechanical grade single crystal CVD diamonds
Brand: Shaper Diamond Technology Co., Ltd
SKU: Semicircular
Price: 1,000.00 USD
Availability: InStock

Home Products Mechanical CVD Diamond

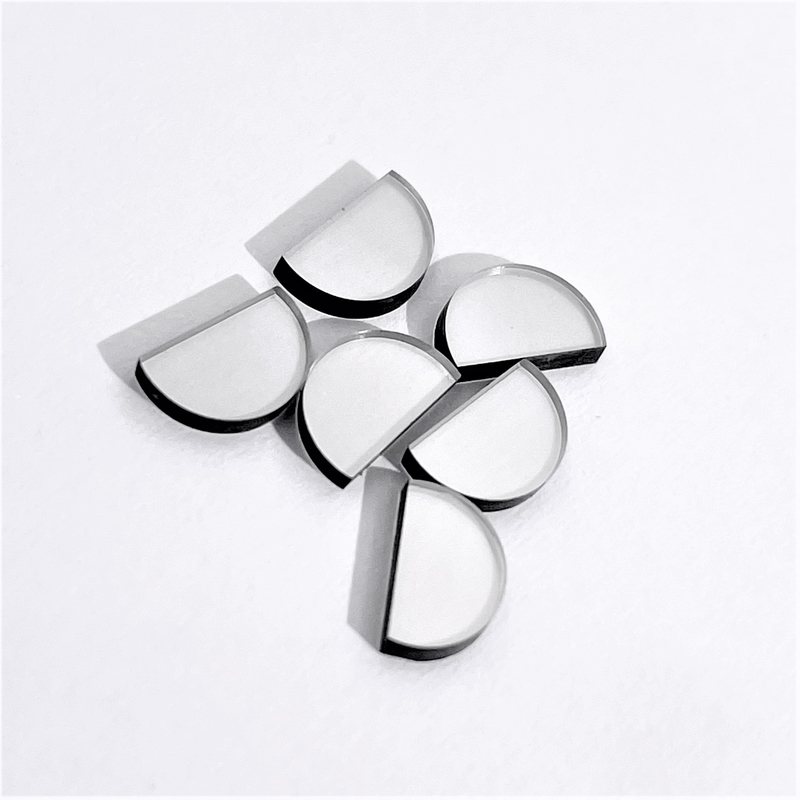

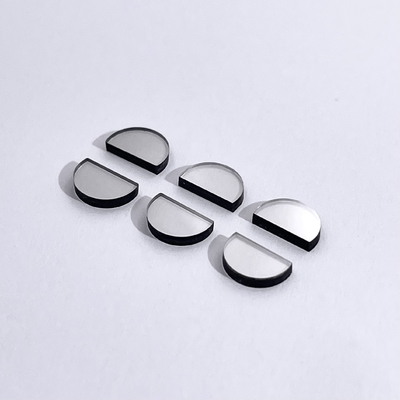

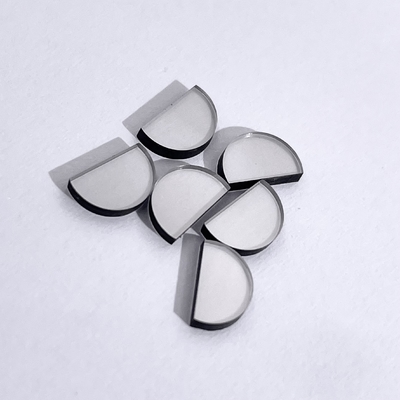

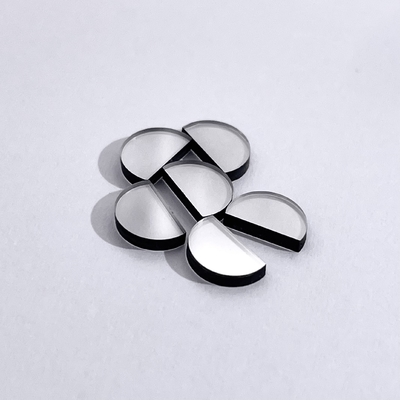

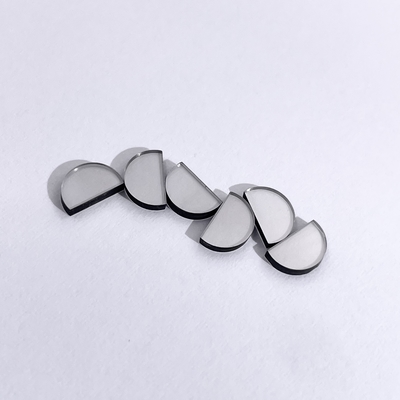

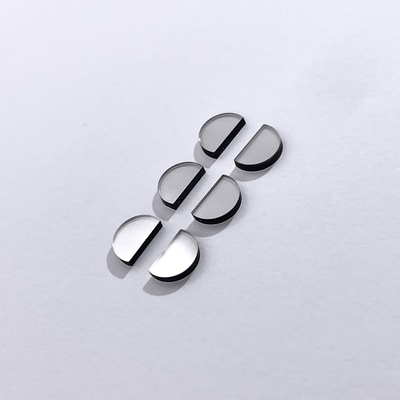

Semicircular mechanical grade single crystal CVD diamonds

Product Details:

Place of Origin:	China
Brand Name:	INFI
Model Number:	Semicircular

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Courier Box
Supply Ability:	1000

Contact Now

Detailed Product Description

Semicircular Mechanical Grade Single Crystal CVD Diamonds

Product Features

High strength and elastic modulus
Excellent thermal conductivity
Superior wear and corrosion resistance
Chemical stability and low friction
Adhesion prevention

Meets ultra-precision cutting material requirements.

Key Applications

Diamond dressing tools
Water jet nozzle orifices
Wire drawing machine dies
Surgical, neurosurgical, and ophthalmic blades
Milling and cutting instruments

Custom Specifications

Maximum length: 20mm

Maximum width: 7mm

Thickness options: 0.1mm to 2.0mm (13 discrete sizes)

Shape/orientation customization available

Material Science

CVD diamond (laboratory-created synthetic diamond via chemical vapor deposition) contrasts with natural diamonds. Primary production techniques:

HPHT: Cost-effective high-pressure (5 GPa) high-temperature (1500°C) process

CVD: Low-pressure (<27 kPa) carbon deposition enabling large-scale production, substrate flexibility, and precise property engineering

Technical Specifications

Available size	2-20mm
Available thickness	0.2mm - 3mm
Lateral tolerance	+0.15, -0mm
Thickness tolerance	+0.1, -0.05mm
Face orientation	{100}> or {110}
Crystallographic Orientation (Miscut)	±3°
Surface finish	Polished, Ra<10nm
Edges	Laser Cut
Laser Kerf	<3°
