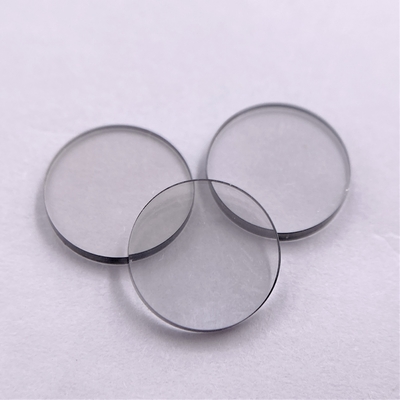

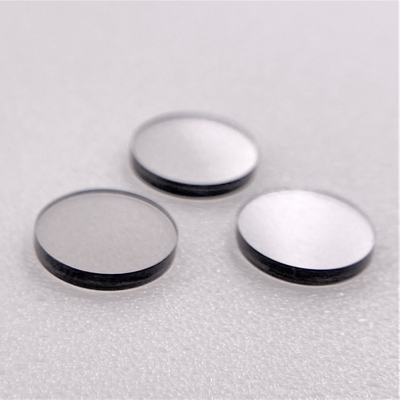

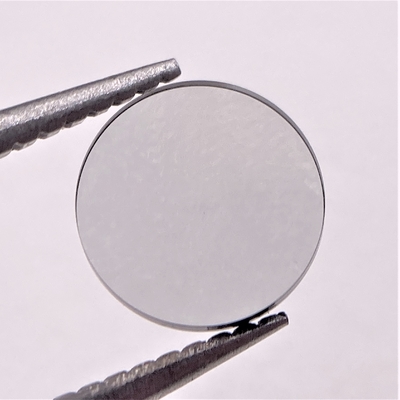

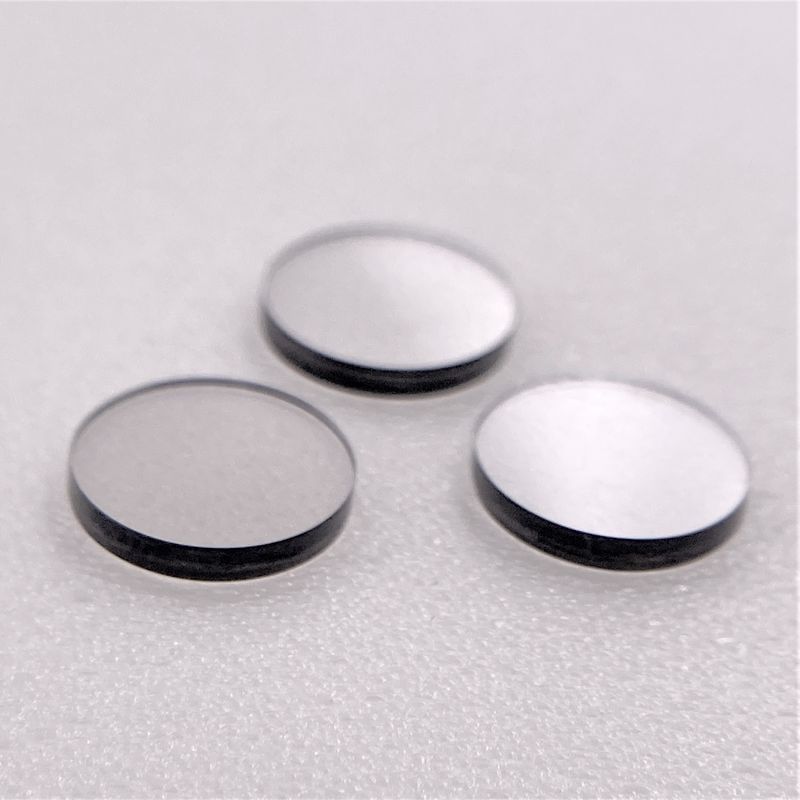

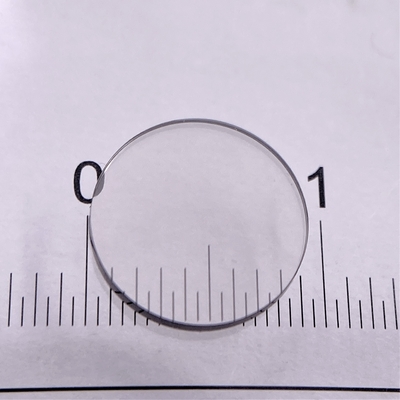

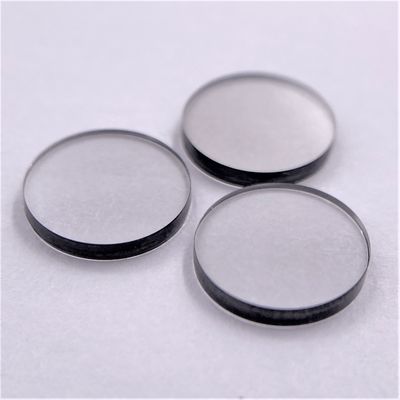

Round Optical Single Crystal CVD Diamonds

Product Details:

Place of Origin:	China
Brand Name:	INFI
Model Number:	Round Optical Diamond

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Courier Box
Supply Ability:	1000

Contact Now

Detailed Product Description

Round Optical Single Crystal CVD Diamonds

Optical Grade Single Crystal CVD

Our optical grade CVD single crystals possess exceptional optical and physical properties including superior optical performance, high-quality crystal structure, dimensional stability, wear resistance, and high-temperature stability. These characteristics make them ideal for demanding optical equipment and systems, enhancing performance and reliability across various optical applications.

Applications of Optical Grade Single Crystal CVD Diamond

Laser Optical Components (resonators, output windows, mirrors)
Optical Windows and Lenses (telescopes, cameras, sensors)
Interferometer Elements (high-precision mirrors, beam splitters, gratings)
Optical Sensors (spectrometers, optical scanners, photodetectors)
Astronomical Observations
Fiber Optic Communication (optical couplers, modulators, demodulators)
High-Precision Optical Measurements (interferometers, Raman spectrometers)
Medical Imaging Equipment (endoscopes, optical microscopes, medical lasers)
Laser Etching Equipment

Specifications

Available size	Up to 15×15mm²
Available thickness	0.1-2mm
Lateral tolerance	+0.1,-0mm
Thickness precision	±0.02mm @≤10mm ±0.03mm @10-15mm
Face orientation	{100}
Surface finish	Polished, Ra<2nm
Edges	Laser Cut
Laser Kerf	<3°
Density	3.52g/cm³
Raman FWHM	~2.1cm⁻¹
Nitrogen concentration	<0.5ppm
Thermal conductivity	1900-2200W/(m*K) @300 K
Transmission	>70% @1064nm
Refractive index	2.379 @10.6μm

Competitive Advantages

Zero Redundancy Design: 50% smaller than conventional optics

Harsh Environment Survival: -200°C to 850°C operational range

Signal Fidelity: 40 dB better SNR vs. sapphire windows

CVD diamond offers exceptionally high transmission across a broad wavelength range with low scatter in IR applications. Its extreme hardness and chemical inertness make it the optimal choice for applications requiring higher power, larger area, resistance to hazardous materials, or greater strength. These properties enable smaller material geometries, facilitating new lightweight applications. Our advanced diamond creation and shaping techniques provide innovative solutions to complex optical challenges.
