CVD Diamond Single Crystal High Quality Diamond | Discover the Versatility of CVD Lab Grown Diamonds for Your Business Growth

Product Details:

Place of Origin:	China
Brand Name:	INFI

Payment & Shipping Terms:

Price:	Please contact us

Contact Now

Detailed Product Description

CVD Diamond Single Crystal High Quality Diamond

Discover the Versatility of CVD Lab Grown Diamonds for Your Business Growth

CVD Single Crystal Diamond Properties

Diamond has the widest transmission spectrum among all solid materials available, ranging from 225nm in the ultraviolet to 25 μm in the infrared (except for wavelengths of 1.8μm-2.5μm), as well as excellent transmission in the microwave range. Due to its excellent optical properties, strong resistance to radiation damage, strong hardness, high thermal conductivity, high chemical stability, and low coefficient of expansion, diamond is an ideal material for the production of modern infrared optical windows.

Applications

High power CO₂ lasers
Long wavelength IR imaging (8-14 micron)
Spectroscopy
High power RF generators and gyrotrons
Disc lasers
Raman lasers
Diamond lenses

Product Properties

Refractive Index (1064nm)	2.392
Refractive Index (600nm)	2.415
Transmission (1064nm)	>68%
Transmission (8μm-25μm)	>70%
Thermal Conductivity	>2000 W/mK

Crystallographic Orientation	100 110 111
Miscut for Main Face Orientation	±3°
Common Product Size	2mm×2mm×6mm 2mm×2mm×7mm 4mm×4mm×7mm
Transverse Tolerance	±0.05mm
Thickness Tolerance	±0.1mm
Parallelism	<2′
Surface Roughness	<10nm
Edge Cutting	Laser Cutting

Compared to Other High Gain Raman Crystals

	Single Crystal CVD Diamond	KGW KGD(WO4)2	YVO4	BA(NO3)2
Raman Gain(g)	15	4	5	11
Raman Frequency Shift ∆λ cm-1	1332	901	892	1047
Crystal Length(L)mm	8	25	25	25
Thermal Conductivity(k)Wm-1K-1	>2000	5	5.2	1.2
Raman Figure of Merit	1440	3	20	1

Diamond has an exceptionally high transmission over a very broad range of wavelengths and low scatter in IR applications. It is extremely hard and chemically inert; making CVD diamond the optimal choice in applications demanding higher power, larger area, and resistance to hazardous materials or greater strength. These abilities also enable smaller material geometries to be used, which opens up new lightweight applications. Advances in the creation and shaping of diamond enable us to provide solutions to novel optical problems.

Key Product Features

The refractive index of diamond should be ~2.4. We need to achieve broad and high transmission in the mid-infrared at wavelengths from 1 micron to 30 microns.
The surface roughness should be well below 50nm for good transmission from 1μm wavelength.
The error should not exceed 0.2mm.
Applied to infrared radiation measuring device, the triangular diamond prism is good for mid-infrared transmission.

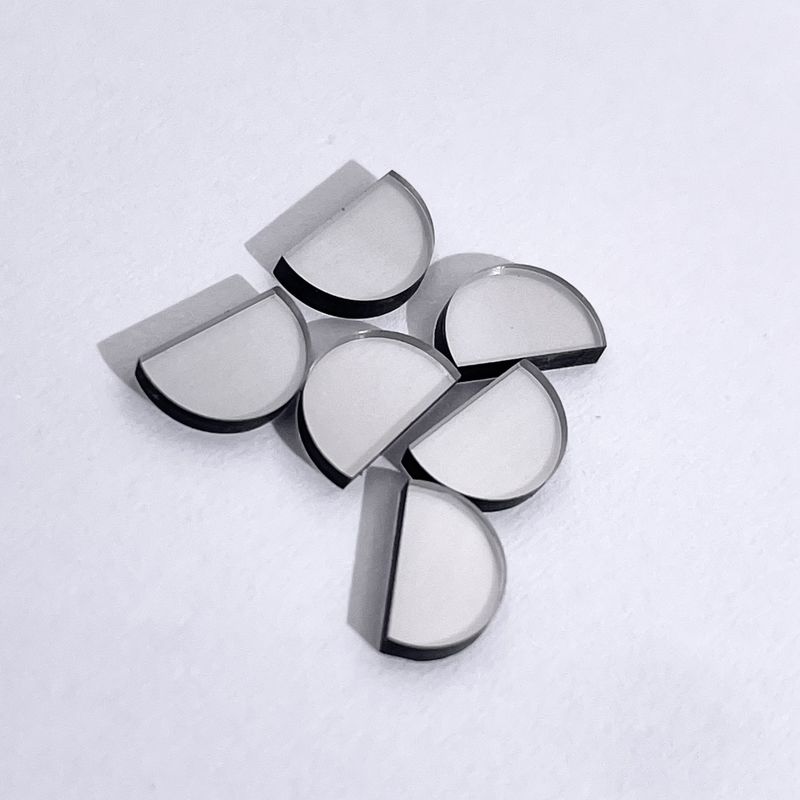

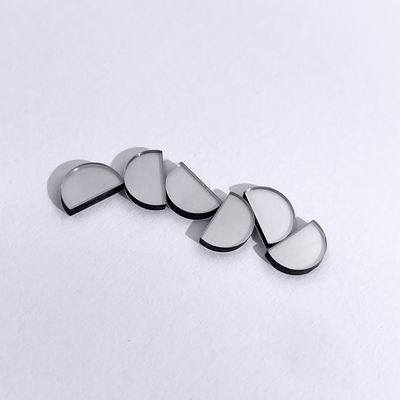

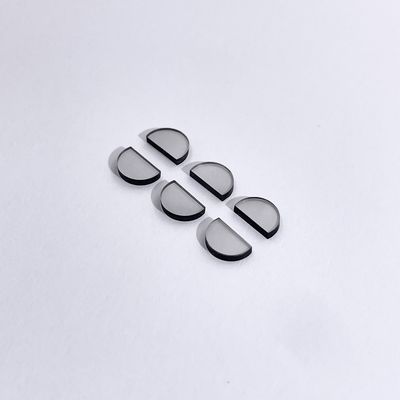

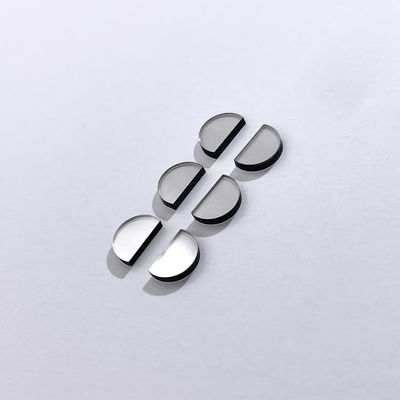

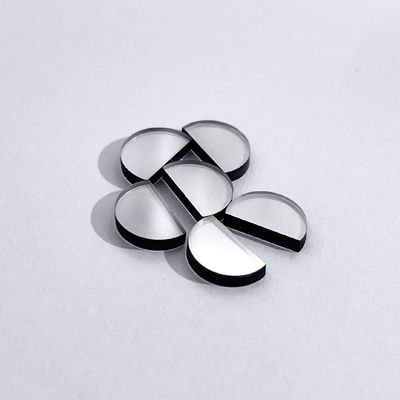

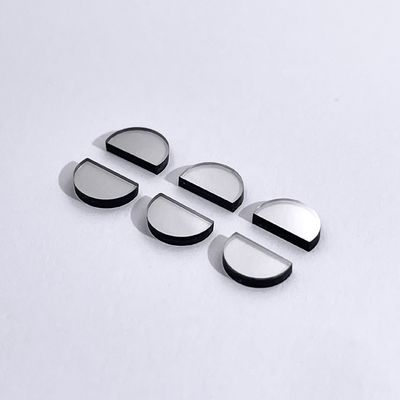

Product Images
