Electronic Grade Lab Grown Diamond | Single Crystal CVD Diamond | Find the Perfect Diamonds for Your Customer Requirements

Product Details:

Place of Origin:	China
Brand Name:	INFI

Contact Now

Detailed Product Description

Electronic-Grade CVD Diamond: Engineered for Advanced Technologies
Produced through chemical vapor deposition (CVD), this lab-grown diamond achieves unparalleled purity with minimal defects. Designed for cutting-edge applications, it combines extreme thermal conductivity, electrical insulation, and mechanical robustness—surpassing natural diamonds in precision engineering.

Key Applications

Quantum Technologies: Leveraging nitrogen-vacancy (NV) centers, CVD diamonds enable breakthroughs in quantum sensors and stable qubit development.
High-Power Electronics: Optimizes thermal management in lasers, transistors, and semiconductors for enhanced device longevity.
Medical Innovations: Biocompatible surgical tools and radiation detection systems benefit from diamond’s precision and durability.
Industrial Durability: Extends tool lifespan in cutting, drilling, and grinding operations through unmatched wear resistance.
Optical Systems: Transparent, rugged windows and lenses perform reliably in extreme environments.

Technical Specifications

Dimensions: 1×1 mm to 20×20 mm
Thickness: 0.3 mm to 3 mm
Surface Finishes:
- As-grown (natural deposition state)
- Precision-polished
- Lapped for specialized smoothness
Edge Processing: Laser-trimmed or polished edges

Performance Grades

Electronic Grade: Quantum optics, radiation detectors
Optical Grade: Sensors, anvil cells, precision windows
Thermal/Mechanical Grade: Industrial cutting tools

Size Available:

Crystal growth process:	Mono crystal CVD diamond
Color:	Normal grade - Near colorless, Mechanic grade - Brown
Advantage:	1) Regular shape, uniform size. The size can be strictly controlled according to customer needs.
	2) High repurchase rate and high cost performance, well received by customers.
	3) No visible growth lines,under 100x microscope, no black spots, no impurities, no crack.
	4) The stress is good, the number of times of reuse is high, and it is not easy to crac
Size	77 88 99 1010 1111 1212 1313 1414 Thickness: 0.05-3mm
Orientation:	4pt/100
Shape:	Square,Triangles, rectangles, swords
Lateral Dimensions Measured	to smaller side
Edges	Laser Cut
Laser Kerf	< 3°
Lateral Tolerance:	+0.1/-0 mm
Roughness, Ra	1. Two sides polished, Ra <10- 30 nm
	2. One side polished, the other size is The other side is the cutting surface, or grow
	3.Both sides are unpolished

Summary: A multifunctional material, electronic-grade CVD diamond drives innovation across quantum computing, medical devices, industrial engineering, and high-performance optics.

Picture details:

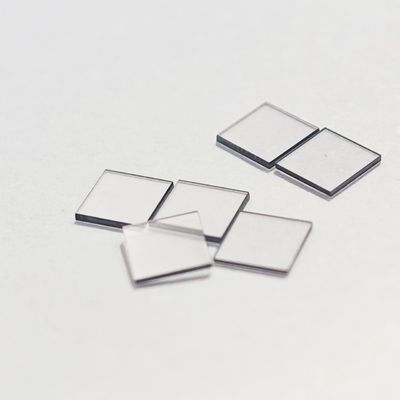

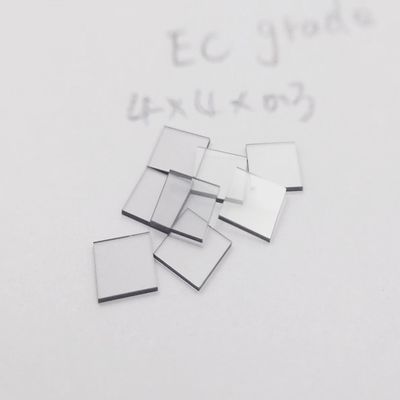

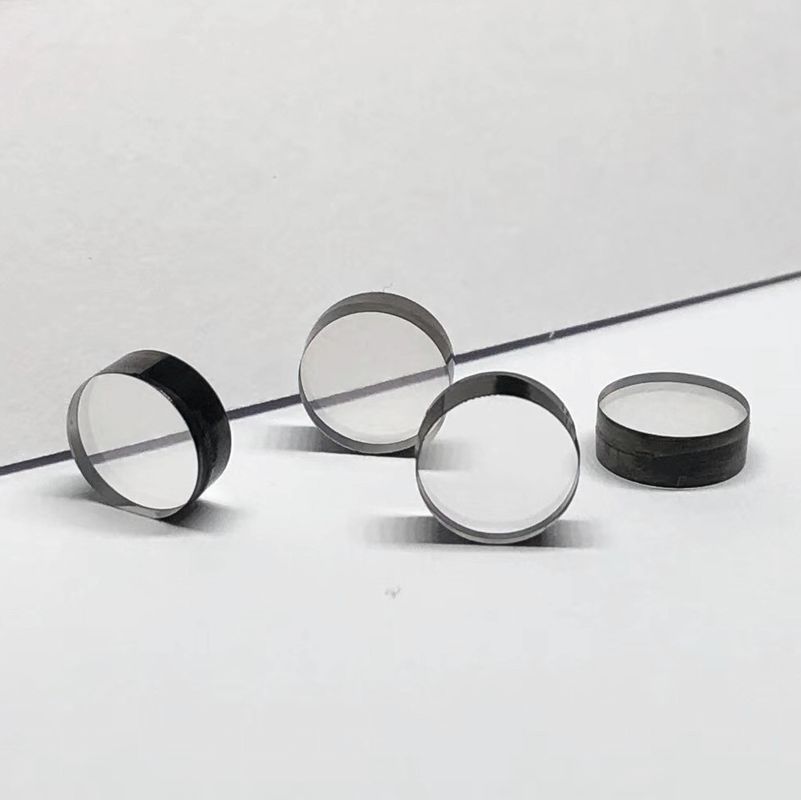

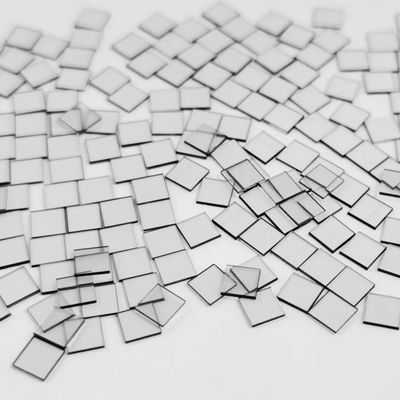

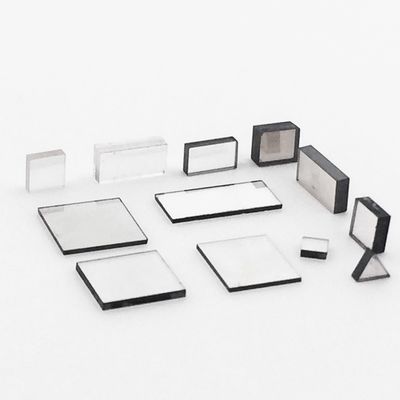

Electronic Grade Lab Grown Diamond | Single Crystal CVD Diamond | Find the Perfect Diamonds for Your Customer Requirements 0
