CVD Lab Grown Diamonds | Top Grade CVD Diamonds for Laser Crystal and Single Crystal Manufacturing

Product Details:

Place of Origin:	Hunan, China
Brand Name:	INFI
Certification:	Non Certificate
Model Number:	CVD

Payment & Shipping Terms:

Price:	Please contact customer service
Packaging Details:	Plastic bags, with bubble sheet covered, then to paper cartons;
Delivery Time:	5-7 Work days

Contact Now

Detailed Product Description

CVD Lab Grown Diamonds | Top Grade CVD Diamonds for Laser Crystal and Single Crystal Manufacturing

CVD Diamond Laser Crystal Single Crystal High Quality Diamond

Product name	CVD diamond stick
Usage	Optical part and machine use
Available Shape	Customizable
Color	Colorless or light brown
Size	Dia 2.6x3 mm
Material	Single Crystal CVD diamond
Advantage	High quality no defect and competitive price
Customized support	OEM, ODM
Type	Diamond
Tolerance	0.05 mm
Min. order	5PCS

Optical-Grade CVD Single Crystal Diamond: Key Attributes

Renowned for its unparalleled optical performance, CVD single crystal diamond exhibits the broadest transmission spectrum across solid materials. It operates effectively from 225 nm (ultraviolet) to 25 μm (infrared), excluding the 1.8-2.5 μm range, while maintaining exceptional microwave transmission. Combining extreme hardness, radiation resistance, thermal conductivity, chemical stability, and minimal thermal expansion, it is the premier choice for advanced infrared optical windows.

Synthetic Diamond via CVD Technology

Produced through chemical vapor deposition, single crystal CVD diamond delivers unmatched mechanical and thermal properties. This material is revolutionizing precision applications in optics, electronics, and industrial manufacturing.

Optical Applications

Laser Systems: Resonators, output windows, and reflective optics
Sensing & Imaging: Spectrometers, photodetectors, medical endoscopes
High-Precision Instruments: Interferometers, beam splitters, Raman spectrometers
Astronomy & Communications: Telescope lenses, fiber optic couplers, demodulators
Industrial Tools: Laser etching systems, optical microscopes

Critical Specifications for Mid-IR Transmission

Refractive Index: ~2.4 ensures high transmission across 1-30 μm wavelengths
Surface Roughness: <50 nm for optimal light propagation above 1 μm
Dimensional Precision: ≤0.2 mm tolerance
Triangular Prism Advantage: Ideal for mid-infrared radiation measurement systems

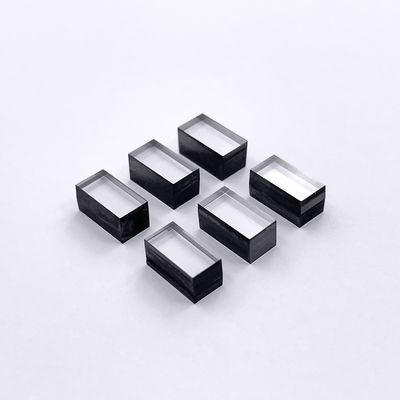

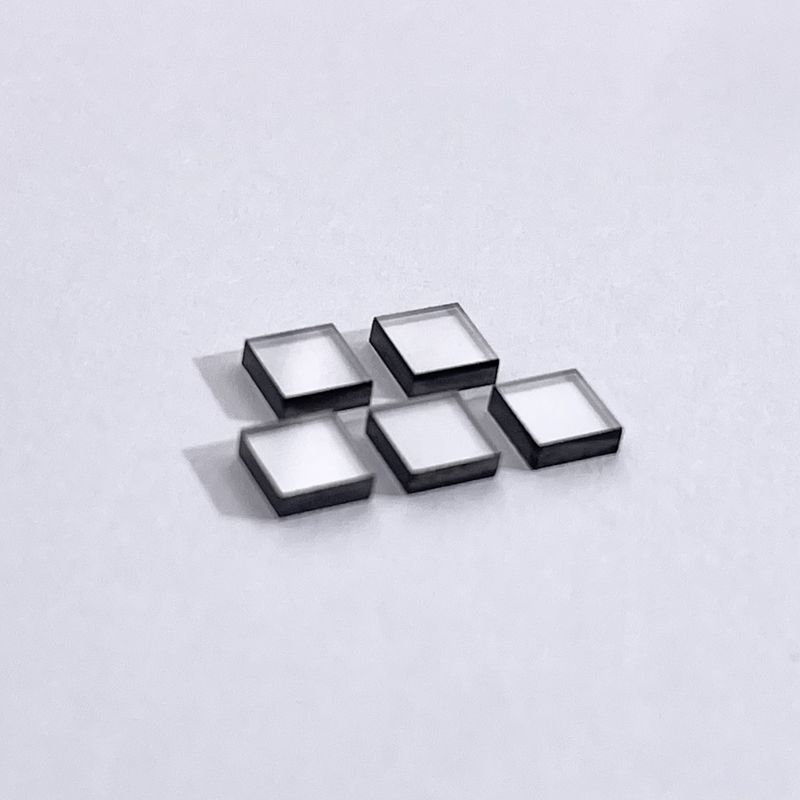

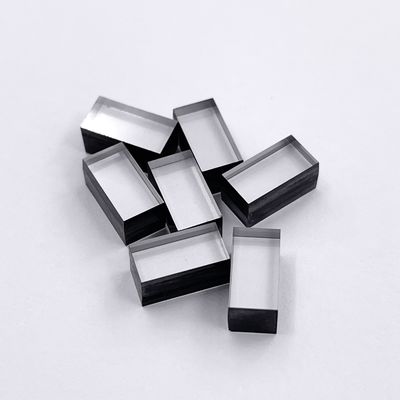

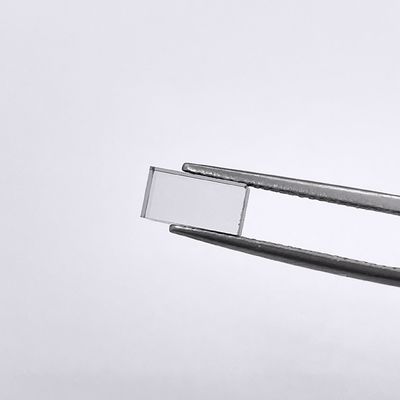

Product Images
