Electronic Grade Single Crystal CVD Diamond Lab Grown Diamond

Electronic Grade Single Crystal CVD Diamond Lab Grown Diamond

Electronic Grade Single Crystal CVD Diamond Lab Grown Diamond
video
Electronic Grade Single Crystal CVD Diamond Lab Grown Diamond
Product Details:
Place of Origin: China
Brand Name: INFI
Payment & Shipping Terms:
Price: Please contact customer service
Contact Now
Detailed Product Description

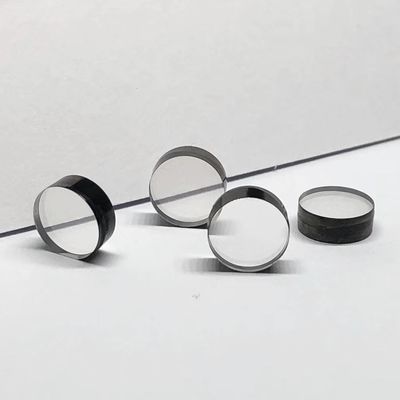

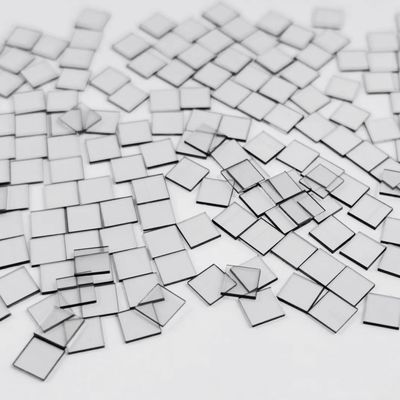

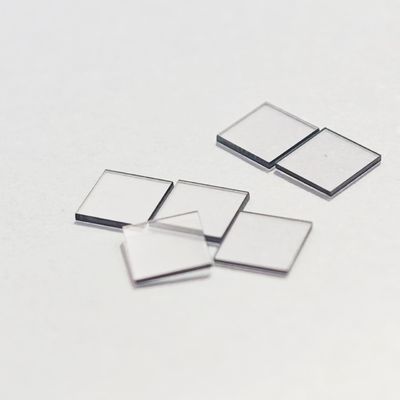

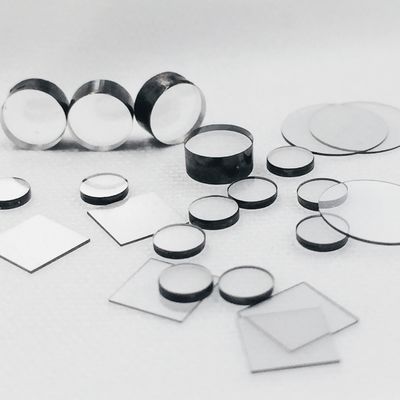

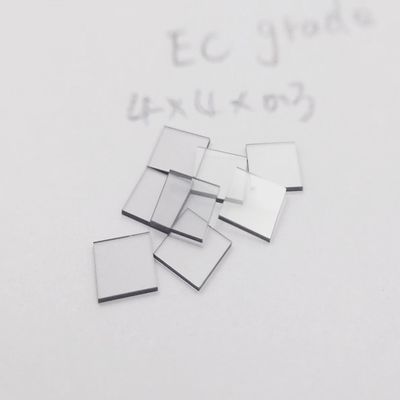

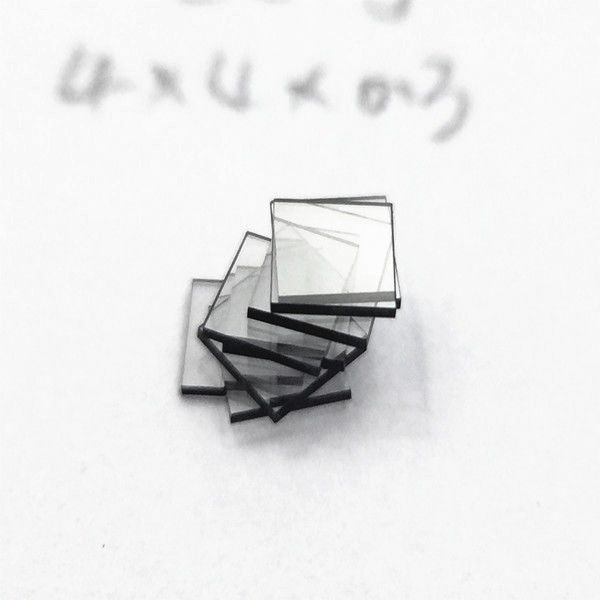

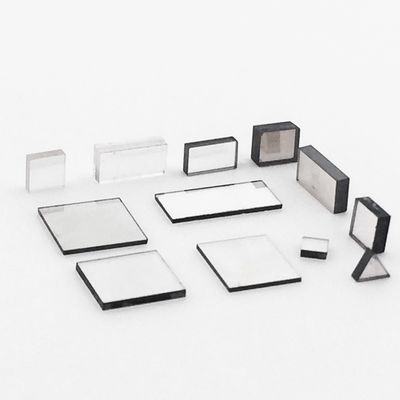

Electronic Grade Single Crystal CVD Diamond
Premium Lab Grown Diamond for Industrial Applications
Key Advantages
  • Regular shape with uniform size, precisely controlled to customer specifications
  • High repurchase rate and exceptional cost performance
  • Flawless structure: no visible growth lines, black spots, impurities, or cracks under 100x magnification
  • Excellent stress resistance for high reuse frequency and durability
Technical Specifications
Crystal Growth Process Mono crystal CVD diamond
Color Options Normal grade (Near colorless), Mechanic grade (Brown)
Available Sizes 7×7mm to 14×14mm (Thickness: 0.05-3mm)
Orientation 4pt/100
Shape Options Square, Triangles, Rectangles, Swords
Lateral Dimensions Measured to smaller side
Edges Laser Cut
Laser Kerf < 3°
Lateral Tolerance +0.1/-0 mm
Quality Assurance

Our electronic grade CVD diamonds undergo rigorous quality control to ensure consistent performance in industrial applications. Each crystal meets strict standards for purity, dimensional accuracy, and structural integrity.

Tag:

Electronic Grade CVD Diamond,

CVD Diamond for Electronic,

CVD Electronic Grade Diamond
