MCD Optical Plate | HPHT Optical Diamond | six sides polished MCD diamond plate good for optical use

MCD Optical Plate | HPHT Optical Diamond | six sides polished MCD diamond plate good for optical use

MCD Optical Plate | HPHT Optical Diamond | six sides polished MCD diamond plate good for optical use
video
MCD Optical Plate | HPHT Optical Diamond | six sides polished MCD diamond plate good for optical use
Product Details:
Place of Origin: China
Brand Name: INFI
Payment & Shipping Terms:
Price: Please contact customer service
Contact Now
Detailed Product Description

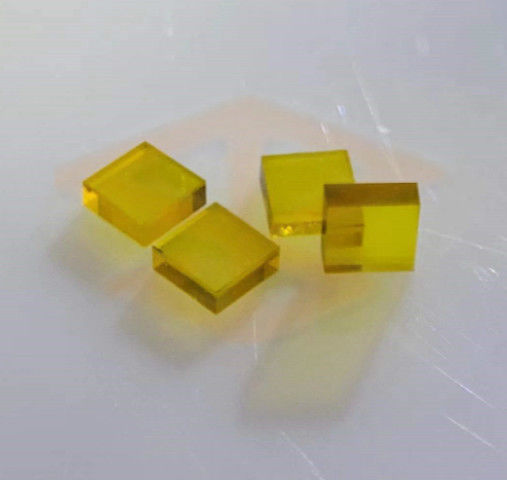

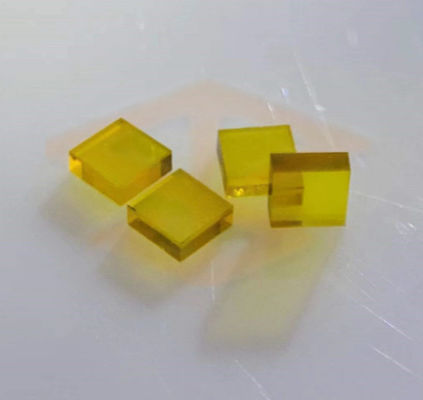

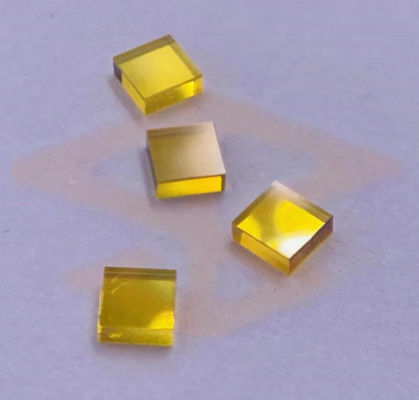

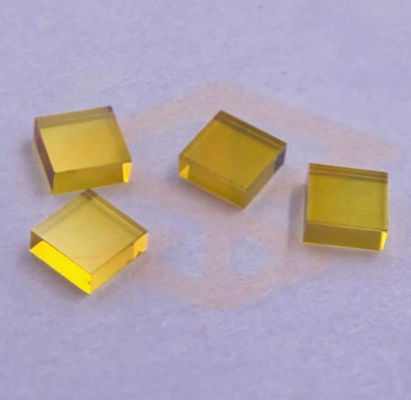

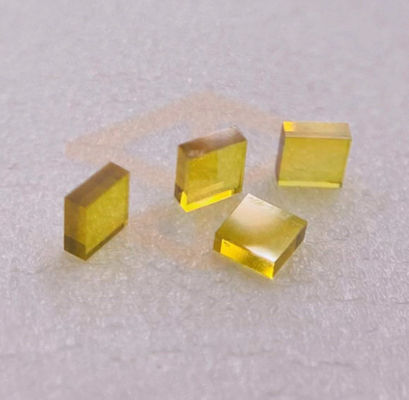

MCD Optical Plate | HPHT Optical Diamond
Six-Side Polished MCD Diamond Plate for Optical Applications
Suggested Application

Optical Window Use

Key Features
  • Available in various thicknesses to meet diverse customer requirements (maximum size: 5mm)
  • Inclusion-free with high clarity and six-side high-quality polishing
  • Exceptional surface finishes with high customer repurchase rate
Technical Specifications
Crystal Growth Process:
HPHT
Color:
Yellow
Orientation:
4pt/100
Shape:
Square
Lateral Dimensions:
Measured to smaller side
Edges:
Polished
Edge Orientation:
<100> edges
Face Orientation:
{100} faces
Laser Kerf:
< 3°
Lateral Tolerance:
+0.1/-0 mm
Surface Finish:
Six sides polished, Ra < 20 nm
Thickness Tolerance:
+/- 0.05 mm
Boron Concentration [B]:
<0.05 ppm
Nitrogen Concentration:
< 50 ppm
MCD Optical Plate | HPHT Optical Diamond | six sides polished MCD diamond plate good for optical use 0 MCD Optical Plate | HPHT Optical Diamond | six sides polished MCD diamond plate good for optical use 1
