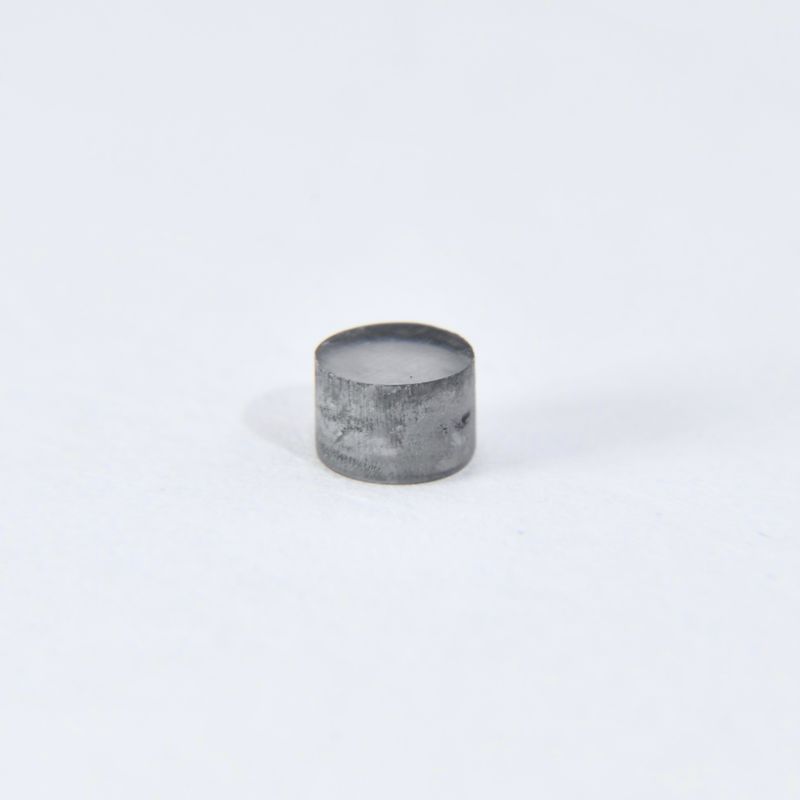

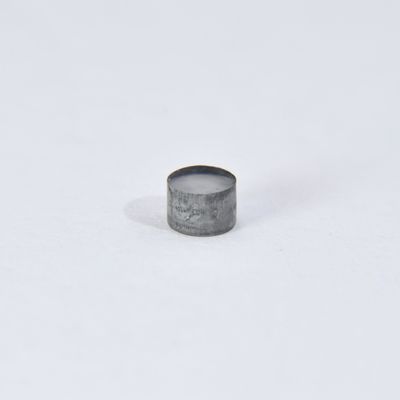

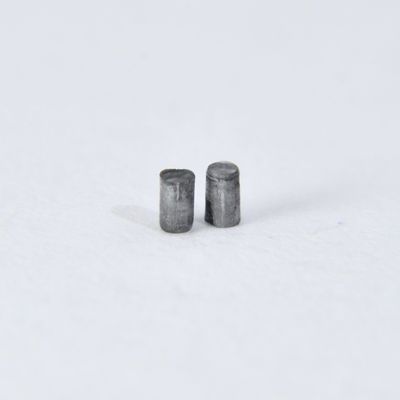

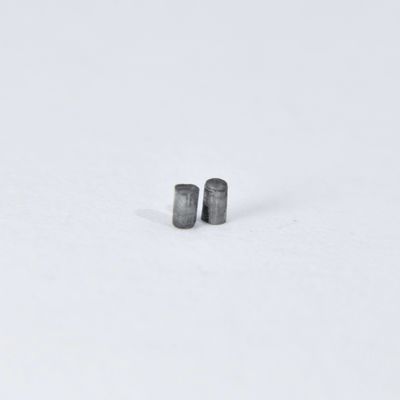

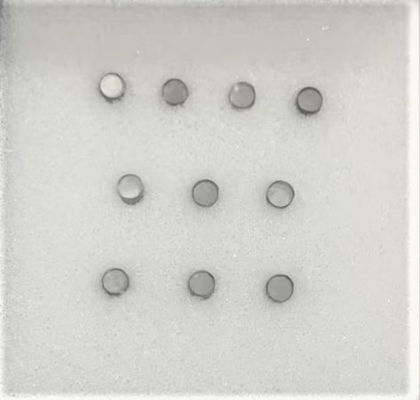

CVD Diamond Wire Drawing Dies 3x Longer Life for Tungsten / Gold Wire Production

Product Details:

Place of Origin:	China
Brand Name:	INFI

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	To be negotiated
Packaging Details:	packed in box then into carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	100pcs/7days

Contact Now

Detailed Product Description

Highlight:

CVD Diamond Wire Drawing Dies

Precision Wire Manufacturing CVD Diamond

CVD Diamond Wire Drawing Dies - (111) Crystal Orientation

The Ultimate Solution for Precision Wire Manufacturing

Key Specifications

Exceptional Mechanical Properties

Young's Modulus: 1150-1300 GPa
Microhardness: 80-150 GPa
Adjustable Nitrogen Content: 30-200 ppm

Flawless Monocrystalline Structure

Inclusion/Dislocation Free
Wear Rate Variation <5%
Custom Solutions: Lattice Engineering for Hard/Soft Wires

Unrivaled Durability

Fracture Strength >8 GPa (3-Point Bending Test)
5,000km Crack-Free Operation (φ0.03mm Cu Wire)
92% Lower Cracking Rate vs PCD Dies

Atomic-Level Precision

(111) Orientation Accuracy <0.5° (XRD Aligned)
Bore Tolerance: ±0.05mm
Surface Roughness Ra <0.1μm

Competitive Advantages of (111)-Oriented CVD Diamond

Crystal Orientation Engineering: (111) plane maximizes shear strength along <110> wire drawing direction, 3x more wear-resistant than PCD
Defect-Free Reliability: Monocrystalline structure eliminates intergranular fracture risks in polycrystalline materials
Intelligent Thermal Management: 2000 W/m*K thermal conductivity prevents localized overheating
Nano-Scale Precision: Laser-machined bore surface (Ra<0.1μm) reduces wire surface scratches by 95%

Technical Superiority
