Home ProductsMCD CVD Diamond Cutter

Diamond Contour End Mill MCD PCD CVD Tools For Aerospace Medical Precision Molding

Diamond Contour End Mill MCD PCD CVD Tools For Aerospace Medical Precision Molding

Diamond Contour End Mill MCD PCD CVD Tools For Aerospace Medical Precision Molding
video
Diamond Contour End Mill MCD PCD CVD Tools For Aerospace Medical Precision Molding
Product Details:
Place of Origin: China
Brand Name: Infi
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: To be negotiated
Packaging Details: packed in box then into carton
Delivery Time: 7 working days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 100pcs/7days
Contact Now
Detailed Product Description
Cutting Edge Material: Polycrystalline Diamond (PCD) Application: Precision Cutting Of Hard And Brittle Materials
Cutting Edge Tolerance: ±0.001mm Suitable For: Precision Molding
Cutting Edge Wear Resistance: Excellent Cutting Edge Surface Roughness: Ra < 0.1 μm
Highlight:

MCD Diamond Contour End Mill

,

PCD Diamond Contour End Mill

Diamond Contour End Mill MCD PCD CVD Tools For Aerospace Medical Precision Molding
Product Specifications
Attribute Value
Cutting Edge Material Polycrystalline Diamond (PCD)
Application Precision cutting of hard and brittle materials
Cutting Edge Tolerance ±0.001mm
Suitable For Precision Molding
Cutting Edge Wear Resistance Excellent
Cutting Edge Surface Roughness Ra < 0.1 μm
Material Advantages
  • MCD (Monocrystalline Diamond): Nano-scale edge precision (Ra0.01μm) with extreme hardness (90+ GPa)
  • PCD (Polycrystalline Diamond): Impact-resistant for stainless steel/cemented carbide roughing
  • CVD (Chemical Vapor Deposition): Thermal stability >1000°C for prolonged machining consistency

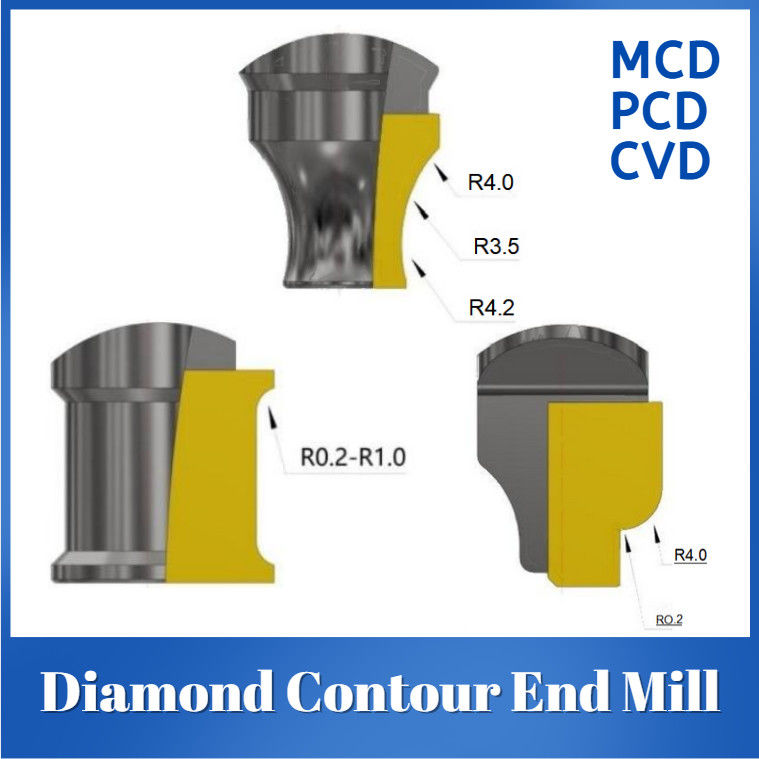

Contour Profiles

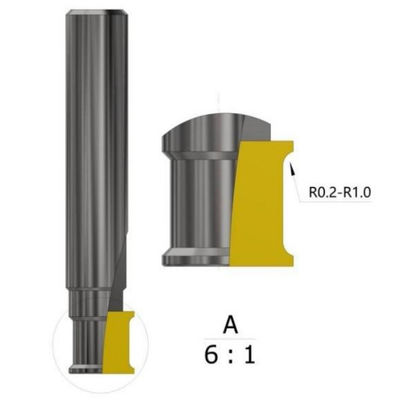

Linear + Multi-Radius Tangents
  • Seamless 90°-arc transitions (R0.1-1.0mm)
  • Applications: Jewelry band edges, turbine blade roots
  • Tolerance: ±3μm (ISO 2768-f)
Diamond Contour End Mill MCD PCD CVD Tools For Aerospace Medical Precision Molding 0

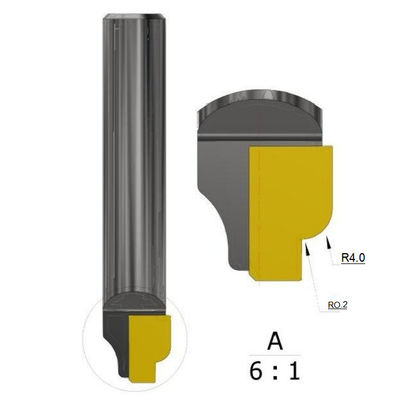

Radius + Linear Tangents
  • Smooth arc-plane transitions (±2μm linear accuracy)
  • Applications: Medical plate radiusing, automotive die channels
  • Tolerance: ±4μm (ASME Y14.5)
Diamond Contour End Mill MCD PCD CVD Tools For Aerospace Medical Precision Molding 1

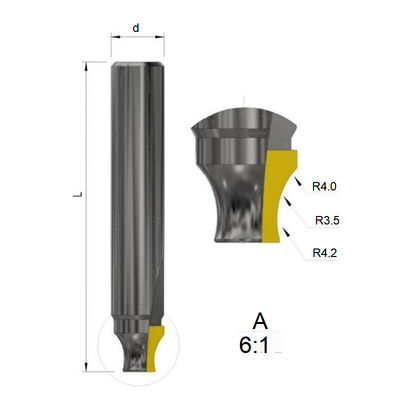

Multi-Arc Tangents
  • Complex curvature-continuous profiles (±5μm radius)
  • Applications: Turbine film holes, watchcase contours
  • Tolerance: ±5μm (DIN 3966 Class 2)
Diamond Contour End Mill MCD PCD CVD Tools For Aerospace Medical Precision Molding 2
Key Features
  • Smart Shank System: HSK-63A interface for 5-axis machining
  • Hybrid Coating: AlCrN+TiSiN extends tool life by 300%
  • Modular Design: Contour change in <30 seconds
Applications
  • Aerospace: Ti-6Al-4V/Inconel 718 complex cavities
  • Medical: CoCrMo implant contours
  • Precision Molding: Mirror-finish plastic molds (Ra0.05μm)
  • Jewelry: 18K gold relief engraving

Tag:

CVD Diamond Cutter,

MCD Diamond Tools,

MCD Diamond Cutter
