Home ProductsMCD CVD Diamond Cutter

Micro Pave Setting Cutter PCD MCD Diamond Tools Precision Positioning

Micro Pave Setting Cutter PCD MCD Diamond Tools Precision Positioning

Micro Pave Setting Cutter PCD MCD Diamond Tools Precision Positioning
video
Micro Pave Setting Cutter PCD MCD Diamond Tools Precision Positioning
Product Details:
Place of Origin: China
Brand Name: Infi
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: To be negotiated
Packaging Details: packed in box then into carton
Delivery Time: 7 working days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 100pcs/7days
Contact Now
Detailed Product Description
Highlight:

Precision Positioning MCD Diamond Tools

,

PCD Micro Pave Setting Cutter

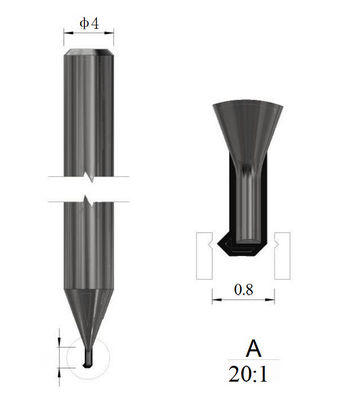

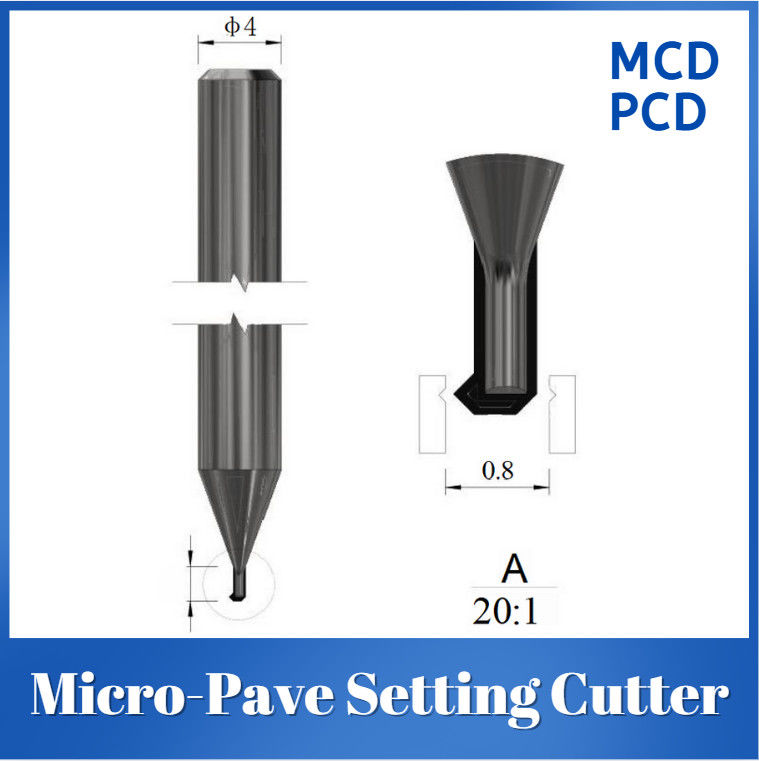

Micro-Pave Setting Cutter | PCD/MCD



          Tool parameter table (mm)

Tr

BH

ZH

D

F

R angle

90°

0.8-1.0

0.1-0.3

0.6-2.0

1

0.05-0.1



1. R&D Objective
Traditional micro-pave diamond setting faces critical challenges:

Failed gem seating for diamonds <1.5mm

Uneven surfaces in cluster settings (flatness tolerance >0.1mm)

＞30% rework rate due to tool limitations



2. Features

Ultra-Precision Edges:

PCD/MCD cutting edges with Ra0.02-0.05μm sharpness

Diameter range: 0.8-1.5mm (±0.005mm tolerance)

Patent-Pending Geometry:

45° self-centering tip design

Zero tool marks on prong seats



3. Applications

Precision positioning for 0.8-1.5mm diamonds

High-density micro-pave settings (＞100 stones/cm²)

Tag:

CVD Diamond Cutter,

MCD Diamond Tools,

MCD Diamond Cutter
