Home ProductsMCD CVD Diamond Cutter

Multi Radius Contour End Mill 10x Faster PCD MCD Diamond Tools

Multi Radius Contour End Mill 10x Faster PCD MCD Diamond Tools

Multi Radius Contour End Mill 10x Faster PCD MCD Diamond Tools
video
Multi Radius Contour End Mill 10x Faster PCD MCD Diamond Tools
Product Details:
Place of Origin: china
Brand Name: Infi
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: To be negotiated
Packaging Details: packed in box then into carton
Delivery Time: 7 working days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 100pcs/7days
Contact Now
Detailed Product Description
Wear Resistance: High Surface Finish: Polished
Applications: Precision Cutting, Drilling, And Grinding Material: MCD CVD Diamond
Material Utilization Rate: ＞92% Hybrid Process: PCD Roughing + MCD/CVD Finishing
Highlight:

Multi Radius Contour End Mil

,

10x Faster MCD Diamond Tools

Multi Radius Contour End Mill 10x Faster PCD MCD Diamond Tools
Product Specifications
Attribute Value
Wear Resistance High
Surface Finish Polished
Applications Precision cutting, drilling, and grinding
Material MCD CVD Diamond
Material utilization rate ＞92%
Hybrid process PCD roughing + MCD/CVD finishing

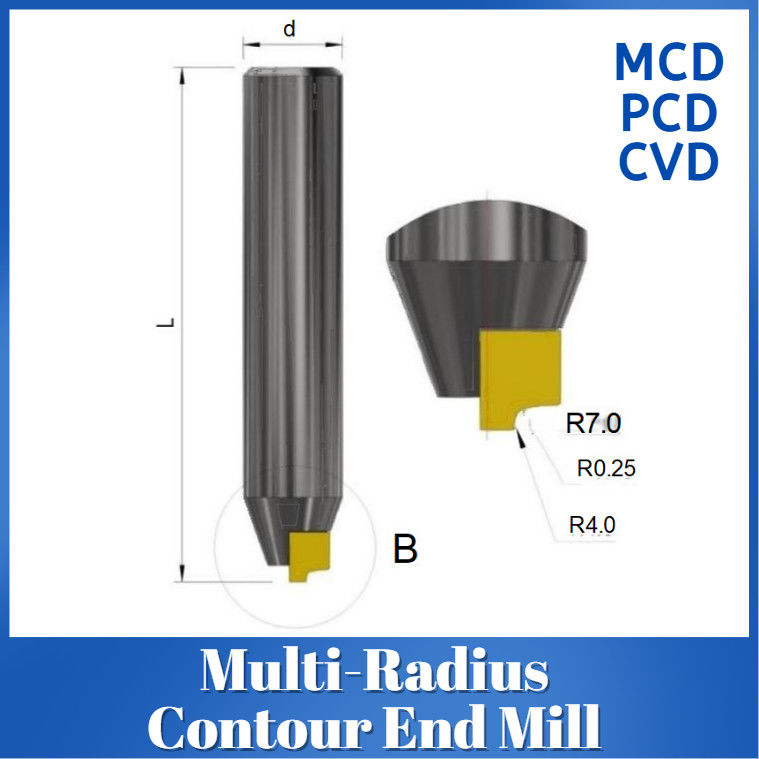

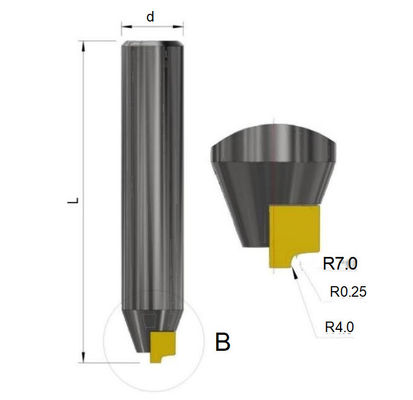

Multi-Radius Contour End Mill | PCD/MCD/CVD
R & D Objective

Traditional manufacturing of complex multi-arc transition contours relies on ball-nose end mills for surface machining, resulting in:

  • Time-consuming processes (3-5x longer cycle times)
  • Persistent tool marks requiring extensive post-processing
  • Material waste exceeding 15%
  • Poor surface integrity (Ra0.4-0.8μm)
Features & Advantages
Form-Relieved Contour Geometry: Seamless multi-arc transitions with ± 0.05mm contour accuracy
Hybrid process: PCD roughing + MCD/CVD finishing
Performance Metrics
  • 10x productivity increase vs conventional methods
  • Achieves Ra0.1 μm mirror finishes without post-polishing
  • Material utilization rate ＞92%
Certified Precision
  • DIN 3966 Class 1 contour tolerance
  • ISO 13399-compliant tool specifications

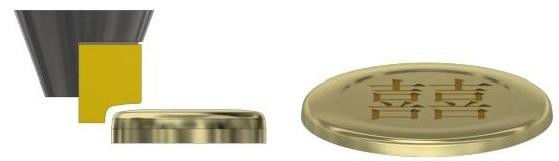

Machining Schematic
Multi Radius Contour End Mill 10x Faster PCD MCD Diamond Tools 0

Tag:

CVD Diamond Cutter,

MCD Diamond Tools,

MCD Diamond Cutter
