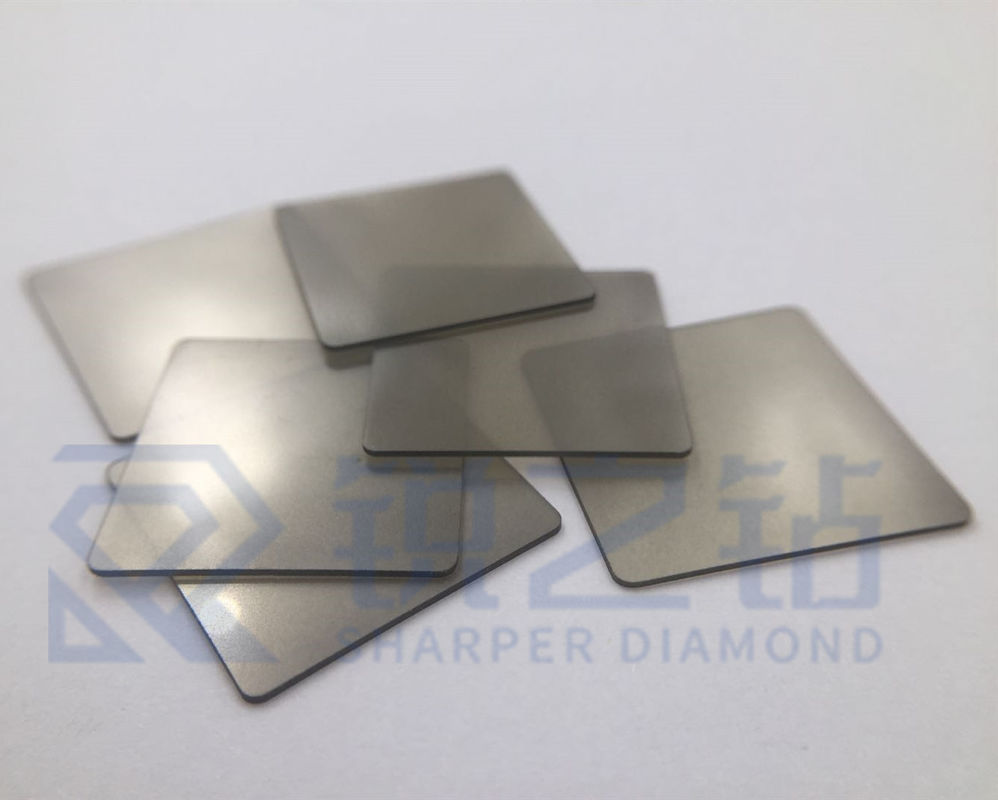

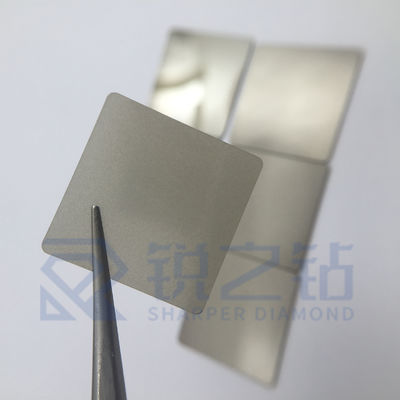

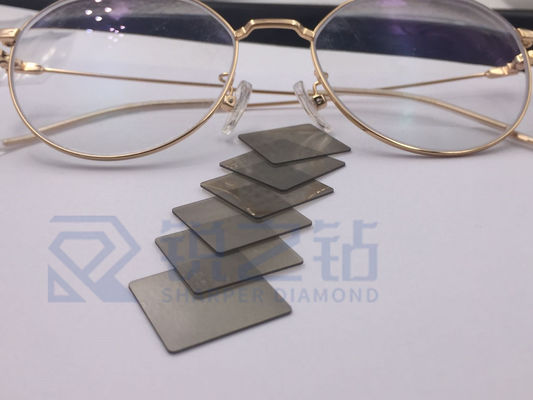

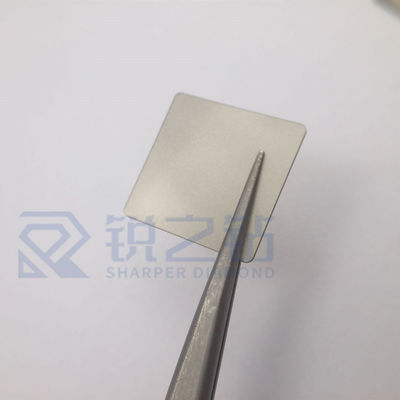

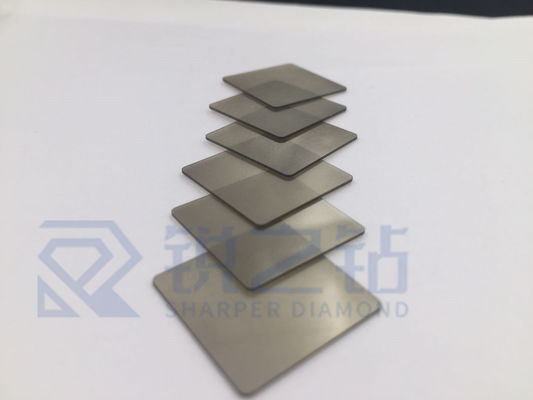

Big Size 10-20mm Heat Sink Poly CVD Diamond Plate Corrosion Resistant

Big Size 10-20mm Heat Sink Poly CVD Diamond Plate Corrosion Resistant

Big Size 10-20mm Heat Sink Poly CVD Diamond Plate Corrosion Resistant
video
Big Size 10-20mm Heat Sink Poly CVD Diamond Plate Corrosion Resistant
Product Details:
Place of Origin: China
Brand Name: Chenguang
Model Number: SCD
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: To be negotiated
Packaging Details: packed in box then into carton
Delivery Time: 7 working days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 100pcs/7days
Contact Now
Detailed Product Description
Thermal Stability: Can Withstand Temperatures Up To 800°C Hardness: 10 On Mohs Scale
Appearance: Light Brown, Brown Biocompatibility: Non-toxic And Biocompatible
Availability: Commercially Available Production Method: Chemical Vapor Deposition (CVD)
Wear Resistance: Highly Resistant To Wear And Abrasion Chemical Stability: Highly Resistant To Most Acids And Alkalis
Material: Poly Diamond Thermal Conductivity: 1000-1200 W/mK
Electrical Conductivity: Insulator Applications: Heat Sink
Corrosion Resistance: Highly Resistant To Corrosion Transparency: Transparent In Visible And Infrared Spectrum
Highlight:

Heat Sink Poly CVD Diamond Plate

,

Corrosion Resistant Poly CVD Diamond Plate

Big Size 10-20mm Heat Sink Poly CVD Diamond Plate Corrosion Resistant
Key Features
  • Exceptional thermal conductivity (1000-1200 W/mK)
  • High thermal stability (up to 800°C)
  • Superior hardness (10 on Mohs scale)
  • Excellent corrosion and chemical resistance
  • Outstanding wear resistance
  • Biocompatible and non-toxic
  • Transparent in visible and infrared spectrum
Technical Specifications
Attribute Value
Material Poly Diamond
Production Method Chemical Vapor Deposition (CVD)
Thermal Conductivity 1000-1200 W/mK
Thermal Stability Up to 800°C
Hardness 10 on Mohs scale
Electrical Conductivity Insulator
Chemical Stability Highly resistant to most acids and alkalis
Appearance Light brown, brown
Product Description

Polycrystalline CVD diamond offers exceptional performance characteristics, making it an ideal material for demanding thermal management applications. Its unique combination of broadband optical transparency (from ultraviolet to far infrared), extremely high thermal conductivity, and outstanding mechanical properties including hardness, wear resistance, and chemical inertness, make it a durable solution for high-performance heat sink applications.

Primary Applications
  • High-performance heat sinks
  • Thermal management solutions
  • Demanding industrial applications
