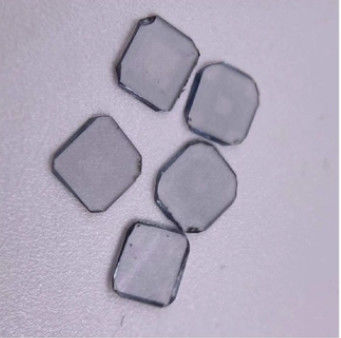

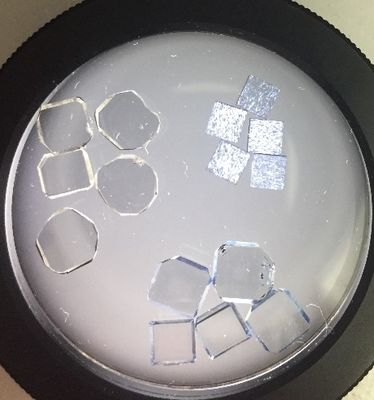

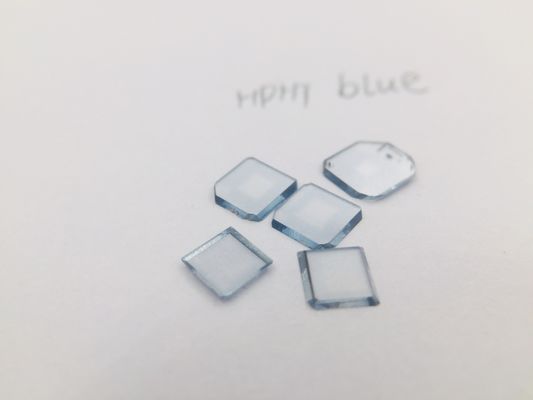

Name: Light or Heavy HPHT Boron Doped Diamond Single Crystal Diamond Plate for Substrate
Brand: Shaper Diamond Technology Co., Ltd
SKU: cs
Price: 100 USD
Availability: InStock

Home Products Boron Doped Diamond

Light or Heavy HPHT Boron Doped Diamond Single Crystal Diamond Plate for Substrate

Product Details:

Place of Origin:	China
Brand Name:	Infi
Certification:	no centification
Model Number:	cs

Payment & Shipping Terms:

Minimum Order Quantity:	3pcs
Price:	100+
Packaging Details:	Carton packaging
Delivery Time:	5-8 working days
Payment Terms:	T/T,Western Union
Supply Ability:	30000

Contact Now

Detailed Product Description

Color:	Light BLue And Dark Blue	Diamond Size:	1-7mm
Thickness:	0.1-2mm	Color:	Clear
Symmetry:	Excellent	Material:	Diamond
Shape:	Square Or Irregulare	Clarity:	IF (Internally Flawless)
Model:	Diamond
Highlight:	Boron Doping Single Crystal Diamond Plate , Heavy HPHT Boron Doped Diamond

Light or Heavy HPHT Boron Doped Diamond Single Crystal Diamond Plate for Substrate

Product Attributes

Attribute	Value
Color	Light Blue and Dark Blue
Diamond Size	1-7mm
Thickness	0.1-2mm
Symmetry	Excellent
Material	Diamond
Shape	Square or Irregular
Clarity	IF (Internally Flawless)
Model	Diamond

Product Description

Light or Heavy Boron Doping HPHT Boron-Doped Diamond (BDD) Single Crystal Diamond Plate Blue Diamond for Substrate

Developed using HPHT technology (high pressure, high temperature), synthetic HPHT monocrystal diamond (MCD) is achieved by combining a mixture of carbon and transitional metals at very high pressures and temperatures.

Advantages of MCD Diamond

High hardness and wear resistance
High efficiency and low cost
High surface finish can be obtained on your workpiece

Applications

Super finishing and Miller finishing for Aluminum, Copper, Brass, Gold, Nickel (Other Non Ferrous metals)
Ultra Precision Cutting
Clear Plastics

Specifications

Suggested application	MCD Cutting Tools
Model	JSD23
Crystal growth process	Single crystal HPHT
Color	Yellow and dark yellow
Usage	Cutting tools
Quality	High quality
Feature	Wear Resistant
Applied fields	Industry
Orientation	4pt/100
Shape	Square or round
Size range	1.0mm -7.0 mm
Lateral Dimensions Measured	to smaller side
Edge Orientation	<100> edges
Corner Orientation	<111>
Face Orientation	{100} faces
Lateral Tolerance	'+0.5/-0 mm
Surface Roughness, Ra	Polished, Ra < 30 nm
Thickness Tolerance	+/- 0.05 mm

Shipping Details

Place Of Origin	Hunan, China
Delivery Time	1 - 15 Working Days Base on Order Quantity
Payment Terms	100% Payment In Advance
Shipping way	DHL, FedEx, SF Express, UPS, EMS, TNT etc
M.O.Q	Negotiable
Port	main port in China

Frequently Asked Questions

Q1: How is your quality?

A1: We have a very serious control system. We guarantee the high performance of our products.

Q2: What is the Warranty for your products?

A2: For one year from the date of purchase. If any problem on our side, we will make prompt response, and take the shipping cost and send replacement.

Q3: Do you have different quality for different kind of stone?

A3: Yes, according to hardness of stone and stone's feature, we have different typology respectively.

Q4: If we need technical support, can you offer us?

A4: Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product management staff, engineers and technicians.

Q5: How can we be your agent in our country?

A5: Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution for you.

Q6: Do you offer free samples?

A6: Normally we do not offer free samples, but we guarantee our product's quality.
