Name: Yellow Single Crystal MCD Diamond Plates , Cutting Tool Diamond Round Disc
Brand: Shaper Diamond Technology Co., Ltd
SKU: cs
Price: 100 USD
Availability: InStock

Home Products MCD Diamond

Yellow Single Crystal MCD Diamond Plates , Cutting Tool Diamond Round Disc

Product Details:

Place of Origin:	China
Brand Name:	Infi
Certification:	no centification
Model Number:	cs

Payment & Shipping Terms:

Minimum Order Quantity:	3pcs
Price:	100+
Packaging Details:	Carton packaging
Delivery Time:	5-8 working days
Payment Terms:	T/T,Western Union
Supply Ability:	30000

Contact Now

Detailed Product Description

Color:	Light Yellow And Dark Yellow	Diamond Size:	1-7mm
Thickness:	0.1-2mm	Color:	Clear
Symmetry:	Excellent	Material:	Diamond
Shape:	Square Or Irregulare	Clarity:	IF (Internally Flawless)
Model:	Diamond
Highlight:	Single Crystal MCD Diamond Plates , Single Crystal Cutting Tool Diamond , Round Disc MCD Diamond Plates

Yellow Single Crystal MCD Diamond Plates, Cutting Tool Diamond Round Disc

Product Overview

High-quality synthetic HPHT monocrystal diamond (MCD) plates developed using high pressure, high temperature technology. These diamond cutting tools combine carbon and transitional metals to create superior performance cutting surfaces.

Key Attributes

Material: Diamond
Colors Available: Light yellow and Dark Yellow
Diamond Size Range: 1-7mm
Thickness Options: 0.1-2mm
Clarity: IF (Internally Flawless)
Symmetry: Excellent
Shape Options: Square or Irregular

Product Advantages

Exceptional hardness and wear resistance
High efficiency with low operational costs
Delivers high surface finish on workpieces

Applications

Ideal for super finishing and miller finishing of non-ferrous metals including Aluminum, Copper, Brass, Gold, and Nickel. Also suitable for ultra precision cutting and clear plastics processing.

Technical Specifications

Model	JSD23
Crystal Growth Process	Single crystal HPHT
Orientation	4pt/100
Shape Options	Square or round
Size Range	1.0mm - 7.0 mm
Lateral Dimensions	Measured to smaller side
Edge Orientation	<100> edges
Corner Orientation	<111>
Face Orientation	{100} faces
Lateral Tolerance	+0.5/-0 mm
Surface Roughness (Ra)	Polished, Ra < 30 nm
Thickness Tolerance	+/- 0.05 mm

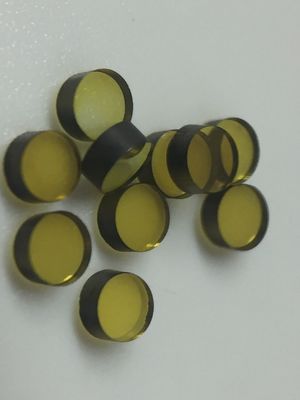

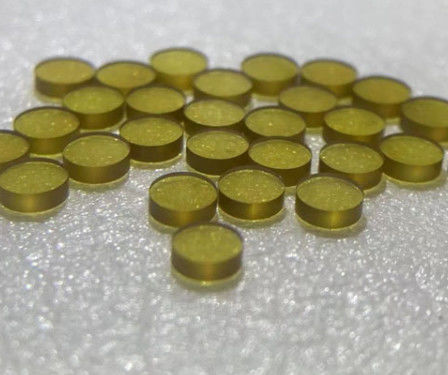

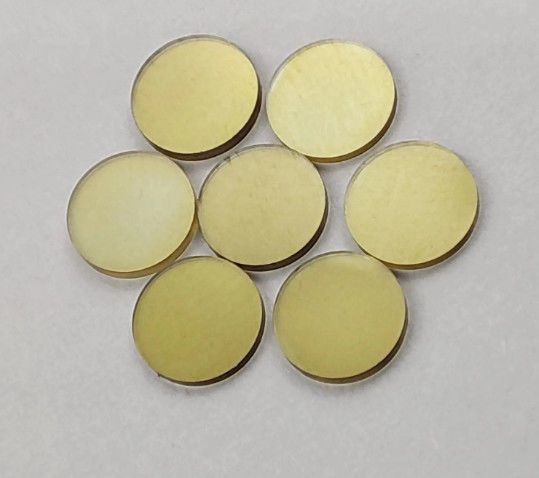

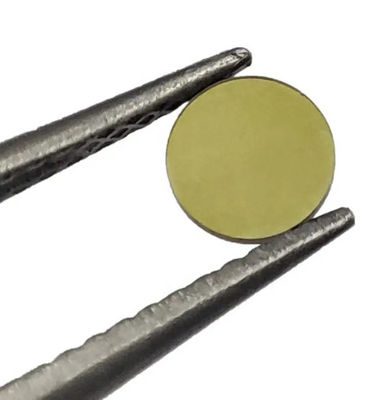

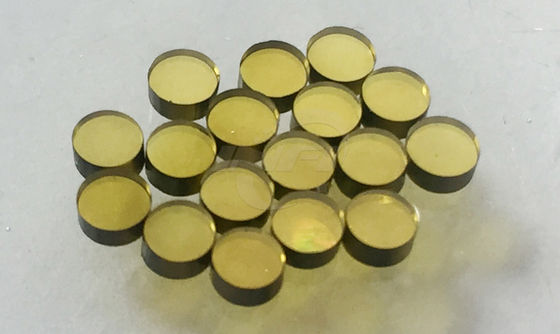

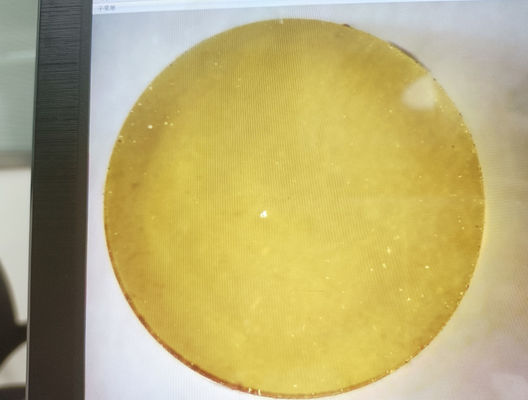

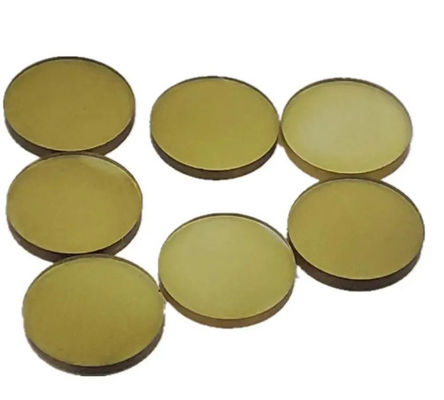

Product Images

Shipping & Order Information

Place of Origin	Hunan, China
Delivery Time	1-15 Working Days (Based on Order Quantity)
Payment Terms	100% Payment In Advance
Shipping Methods	DHL, FedEx, SF Express, UPS, EMS, TNT
Minimum Order Quantity	Negotiable
Port	Main ports in China

Frequently Asked Questions

Q1: How is your quality control?

A1: We maintain strict quality control systems to guarantee high performance of all our diamond products.

Q2: What is your product warranty?

A2: One year warranty from purchase date. We cover shipping costs for any replacements needed due to manufacturing issues.

Q3: Do you offer different quality grades?

A3: Yes, we provide different diamond typologies based on material hardness and specific application requirements.

Q4: Do you provide technical support?

A4: Our experienced team offers technical advice and application-specific recommendations from engineers and technicians.

Q5: How can we become your agent?

A5: Contact us with your company details for partnership discussions and customized solutions.

Q6: Do you offer free samples?

A6: While we typically don't provide free samples, we guarantee our product quality and performance.
