Name: Mpcvd Flawless Single Crystal CVD Diamond 13x13x0.5mm For Industrial And Scientific
Brand: Shaper Diamond Technology Co., Ltd
SKU: JSD
Price: 1,000.00 USD
Availability: InStock

Home Products Mechanical CVD Diamond

Mpcvd Flawless Single Crystal CVD Diamond 13x13x0.5mm For Industrial And Scientific

Product Details:

Place of Origin:	Hunan, China
Brand Name:	Infi
Model Number:	JSD

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	To be negotiated
Packaging Details:	packed in box then into carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	100pcs/7days

Contact Now

Detailed Product Description

Color:	Colorless	Size:	13x13x0.5mm
Product Name:	Cvd Diamond Flwaless Seed	Customized Support:	OEM, ODM
Hardness (microhardness):	80～150GPa	Young's Modulus:	1150～130OGPa
Highlight:	Industrial Flawless Lab Grown Diamonds , Mpcvd Flawless Lab Grown Diamonds , Colorless Single Crystal CVD Diamond

MPCVD Flawless Single Crystal CVD Diamond 13×13×0.5mm

Product Specifications

Attribute	Value
Color	Colorless
Size	13×13×0.5mm
Product Name	CVD Diamond Flawless Seed
Customized Support	OEM, ODM
Hardness (microhardness)	80～150GPa
Young's modulus	1150～1300GPa

Product Description

Single crystal diamond CVD (chemical vapor deposition) is produced using a process where carbon-containing gases are decomposed under controlled conditions, forming a single crystal diamond layer on a substrate. This material is renowned for its exceptional hardness and thermal conductivity, making it ideal for industrial and scientific applications including cutting tools, heat spreaders, and optical components.

Key Advantages

Highly ordered crystal structure for superior physical properties
Exceptional thermal conductivity (1500-2000 W/(m·K))
Outstanding hardness (80-150GPa)
No polycrystalline black spots or cracks under 20x magnification
Perfect cutting without missing corners
Uniform stress distribution under polarizer

Technical Specifications

Nitrogen content: <50ppm

Coefficient of friction: 0.05~0.05

Thermal expansion coefficient: 10^-6 K^-1

Orientation: 4pt/100

Edge Orientation: <100> edges

Face Orientation: {100} faces

Boron Concentration [B]: <0.05 ppm

Nitrogen Concentration: < 20 ppm

Available Sizes

3×3×0.3mm, 4×4×0.3mm, 5×5×0.3mm, 6×6×0.3mm, 7×7×0.3mm, 8×8×0.3mm, 9×9×0.6mm, 10×10×0.3mm, 11×11×0.3mm, 12×12×0.3mm, 13×13×0.3mm, 15×15×0.3mm

Product Images

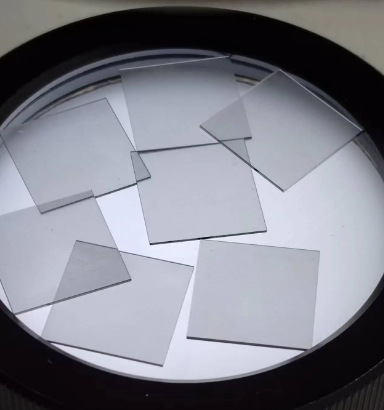

Flawless single crystal CVD diamond plate 13×13×0.5mm
