Unregular Square CVD HPHT Lab Grown Diamonds Mono Diamond Substrate 0.3mm 0.5mm 1mm

Product Details:

Place of Origin:	China
Brand Name:	Chenguang
Model Number:	SCD

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	To be negotiated
Packaging Details:	packed in box then into carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	100pcs/7days

Contact Now

Detailed Product Description

Porduct:	HPHT Diamond Substrate Diamond Seeds	Color:	Yellow, White, Blue
Shape:	Unregular Square	Avaialbe Size:	3x3mm, 4x4mm, 5x5mm, 6x6mm
Available Thickness:	0.3mm, 0.5mm, 1mm
Highlight:	Unregular Hpht Lab Grown Diamonds , Unregular Square Cvd Hpht Diamond , 0.5mm HPHT Mono Diamond

Unregular Square CVD HPHT Lab Grown Diamonds Mono Diamond Substrate 0.3mm 0.5mm 1mm

Product Specifications

Attribute	Value
Product	HPHT diamond substrate diamond seeds
Color	Yellow, white, blue
Shape	Unregular square
Available size	3x3mm, 4x4mm, 5x5mm, 6x6mm
Available thickness	0.3mm, 0.5mm, 1mm

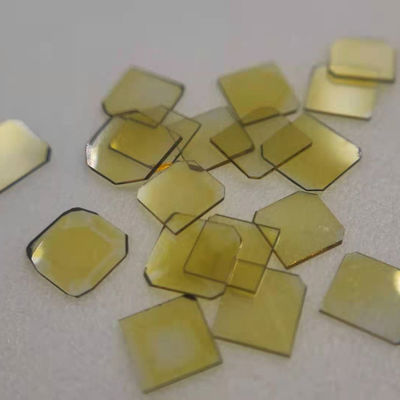

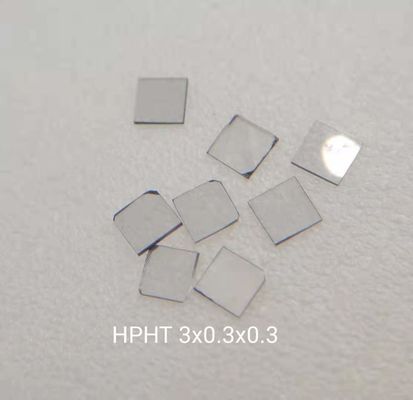

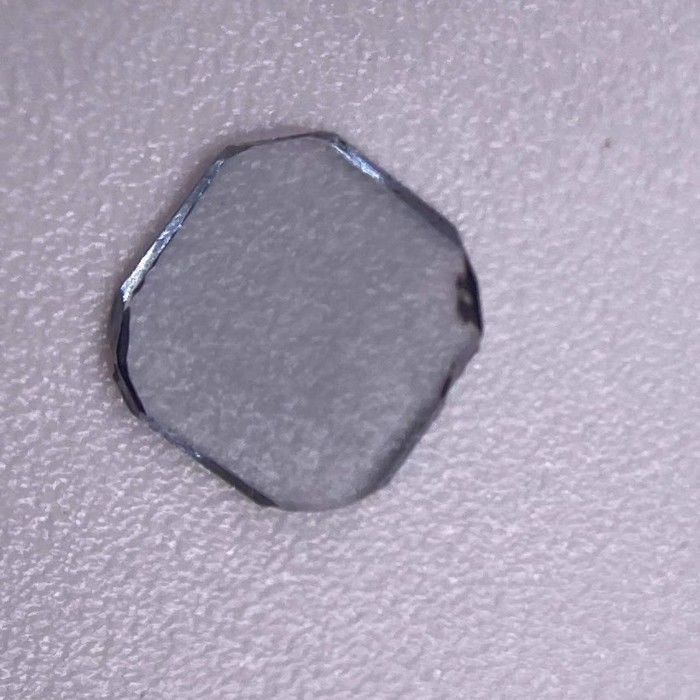

Yellow, White, Blue HPHT Mono Diamond Square Substrate CVD Diamond Seeds

Single crystal CVD uses a single crystal diamond substrate as a base to grow single crystal diamond by vapor phase epitaxy. The single crystal diamond substrate used can be natural diamond, HPHT diamond or CVD diamond. HPHT diamond has lower stress distribution than CVD diamond and is easier available than natural diamond, making it an excellent diamond seed for growing CVD diamond.

Technical Specifications

Suggested application	Substrate for single crystal CVD growth
Crystal growth process	HPHT
Color	Pale yellow
Benefits	A variety of thicknesses can meet the various needs of customers The crystal structure is good with few defects and high success rate Customer repurchase rate is high High quality surface finishes
Orientation	4pt/100
Shape	Near square
Lateral Dimensions Measured	to smaller side
Edges	Laser Cut
Edge Orientation	<100> edges
Face Orientation	{100} faces
Laser Kerf	< 3°
Lateral Tolerance	+0.4/-0 mm
Side 1, Roughness, Ra	polished, Ra < 30 nm
Thickness Tolerance	+/- 0.05 mm
Boron Concentration [B]	<0.05 ppm
Nitrogen Concentration	< 100 ppm

3PT/111 seeds is also available
