Name: 1-7mm MCD Diamond Logs Single Crystal Synthetic Diamond For Dressing Tools
Brand: Shaper Diamond Technology Co., Ltd
SKU: JSD
Price: 10.00 USD
Availability: InStock

Home Products MCD Diamond

1-7mm MCD Diamond Logs Single Crystal Synthetic Diamond For Dressing Tools

Product Details:

Place of Origin:	Hunan, China
Brand Name:	Infi
Certification:	Non Certificate
Model Number:	JSD

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Sample price: $10.00/piece
Packaging Details:	Plastic bag, opp box or requsted
Delivery Time:	3-7 Work days
Payment Terms:	T/T, L/C, D/A
Supply Ability:	>1000pcs per month

Contact Now

Detailed Product Description

Color:

Yellow

Availble Shape:

Rectangle, Square, Round, Customized

Size:

1-7mm

Material:

Synthetic Diamond

Highlight:

MCD Single Crystal Synthetic Diamond

MCD Diamond Logs For Dressing Tools

1-7mm MCD Diamond Logs Single Crystal Synthetic Diamond For Dressing Tools

Product Overview

Mechanical single crystal MCD diamond logs are precision-cut from plates to meet specific size and shape requirements for dressing tools and other industrial applications. These synthetic diamonds offer exceptional machining properties including high hardness, wear resistance, and predictable performance.

Key Attributes

Color: Yellow

Available Shapes: Rectangle, square, round, customized

Size Range: 1-7mm

Material: Synthetic diamond

Technical Specifications

Property	Value
Type	Super hard material
Orientation	Ordinary 4pt (100 on six sides)
Nitrogen content	<200 ppm
Lateral Tolerance	+0.1/-0 mm
Edges	Laser Cut
Polish	Upper and bottom polished
Polish Roughness	Ra < 30 nm
Thickness Tolerance	±0.05 mm

Standard Available Sizes

3×0.6×0.6mm
3×0.8×0.8mm
3×1.0×1.0mm
3×1.2×1.2mm
4×0.4×0.4mm
4×0.6×0.6mm
4×0.8×0.8mm
4×1.0×1.0mm
4×1.2×1.2mm

Key Advantages

Maintains consistent width and thickness throughout use
Performance remains stable with no degradation
Requires no manipulation during tool operation
Delivers high-quality surface finishes
Ideal for processing non-ferrous metals (gold, silver, copper, aluminum)
Excellent for hard/brittle materials (graphite, carbon fiber, ceramics)

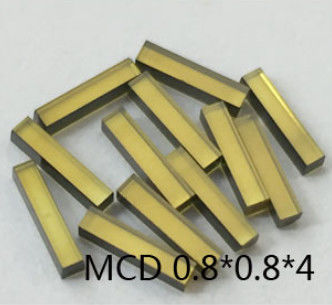

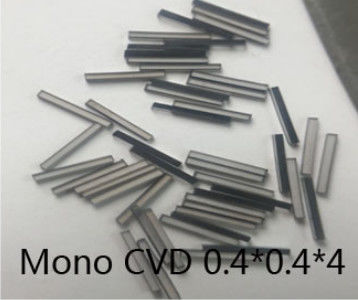

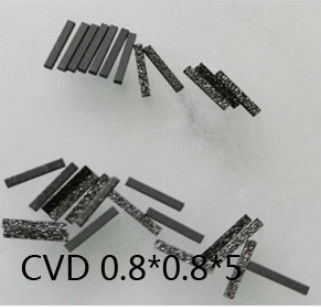

Product Images

Packaging & Shipping

Each diamond log is securely packaged in a sealed plastic bag within a protective carton. Standard delivery time is 3-7 working days after payment confirmation. Available shipping methods include DHL, TNT, FedEx, UPS, or as per customer request.

Selling Units: Single item

Single Gross Weight: 0.005 kg

Customization: OEM/ODM supported
