3x3x1mm CVD Lab Grown Diamonds 2PT 110 Single Crystal Diamond Plate

3x3x1mm CVD Lab Grown Diamonds 2PT 110 Single Crystal Diamond Plate

  • 3x3x1mm CVD Lab Grown Diamonds 2PT 110 Single Crystal Diamond Plate
  • 3x3x1mm CVD Lab Grown Diamonds 2PT 110 Single Crystal Diamond Plate
  • 3x3x1mm CVD Lab Grown Diamonds 2PT 110 Single Crystal Diamond Plate
  • 3x3x1mm CVD Lab Grown Diamonds 2PT 110 Single Crystal Diamond Plate
  • 3x3x1mm CVD Lab Grown Diamonds 2PT 110 Single Crystal Diamond Plate
3x3x1mm CVD Lab Grown Diamonds 2PT 110 Single Crystal Diamond Plate
Product Details:
Place of Origin: Hunan, China
Brand Name: Infi
Certification: Non Certificate
Model Number: CVD
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: To be negotiated
Packaging Details: packed in box then into carton
Delivery Time: 7 working days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 100pcs/7days
Contact Now
Detailed Product Description
Size: 3x3x1mm Color: Brownish
Shape: Square Product Name: Mono CVD
Grade: Normal Grade Orientation: 2pt/110
Highlight:

3x3x1mm CVD Lab Grown Diamonds

,

CVD Lab Grown Diamonds 2PT 110

,

CVD Single Crystal Diamond Plate

3x3x1mm CVD Lab Grown Diamonds 2PT 110 Single Crystal Diamond Plate
Product Specifications
Attribute Value
Size 3x3x1mm
Color Brownish
Shape Square
Product Name Mono CVD
Grade Normal grade
Orientation 2pt/110
Premium CVD Lab Grown Diamond for Cutting Tools
Our synthetic diamond is composed of pure carbon crystallized in an isotropic 3D form, identical in composition to natural diamonds. These lab-grown diamonds offer exceptional performance for cutting applications.
Key Advantages
  • Sharp edges and high precision with minimal cutting force
  • Superior hardness and wear resistance
  • Excellent corrosion resistance and chemical stability
  • Enables precision and ultra-precision machining
  • Extends tool service life for continuous cutting operations
Technical Details
Crystal growth process Mono CVD
Orientation Options 100 (all 6 planes 100)
110 (Top and bottom 100)
2pt/110
Shape Rectangular
Edges Laser Cut
Laser Kerf 3° - 4°
Lateral Tolerance +0.1/-0 mm
Thickness Tolerance +/- 0.05 mm
Available size 1mm - 15mm
Available thickness 0.1- 5mm
Micro-hardness 80-150Gpa
Young modulus 1150-1130Gpa
Boron Concentration [B] <0.05 ppm
Nitrogen Concentration Mechanical grade 50 ppm - 100 ppm
Product Images

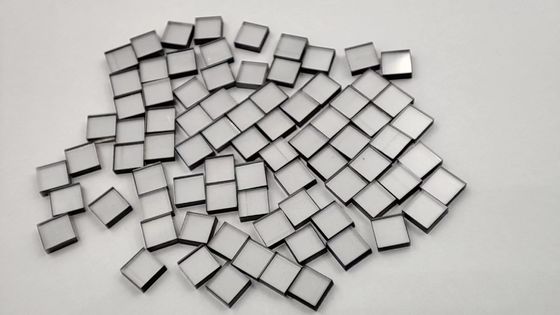

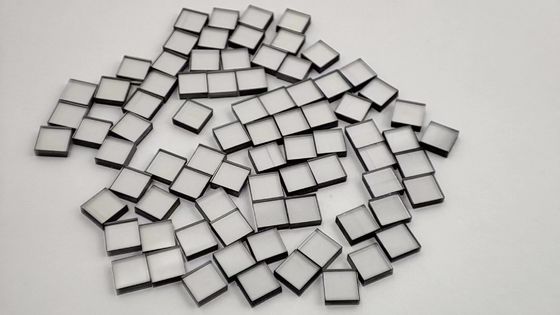

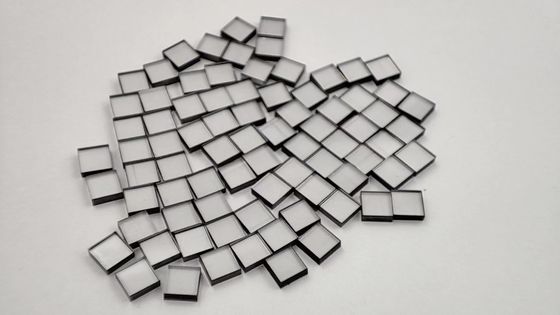

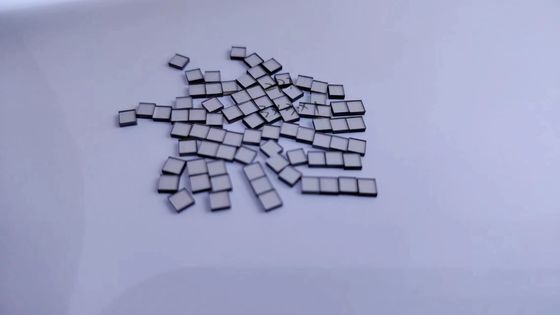

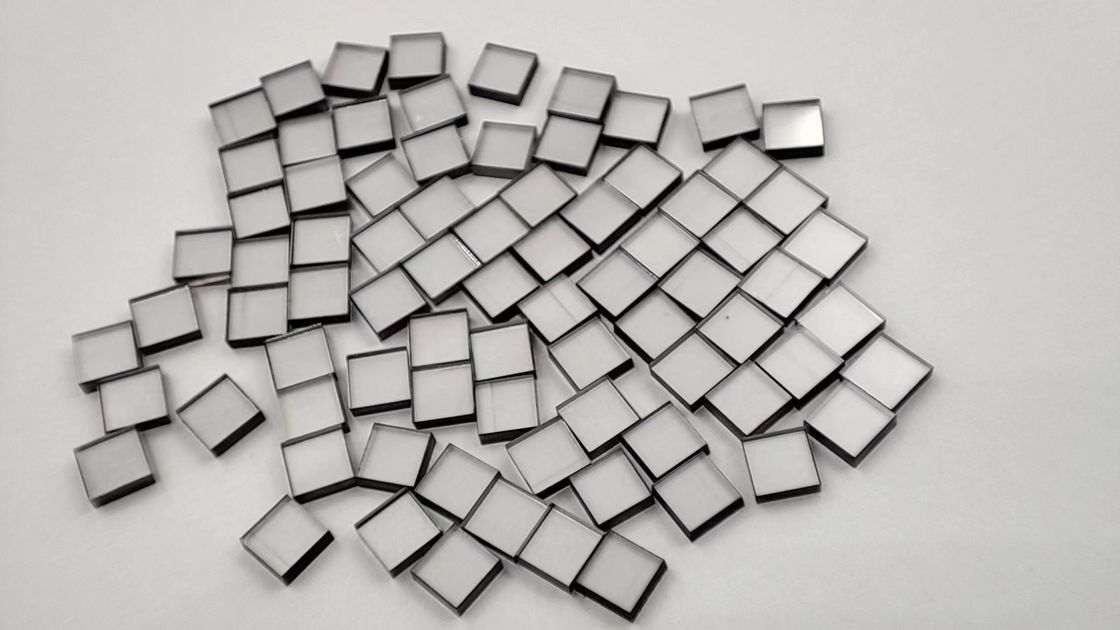

3x3x1mm CVD Lab Grown Diamonds 2PT 110 Single Crystal Diamond Plate 0 3x3x1mm CVD Lab Grown Diamonds 2PT 110 Single Crystal Diamond Plate 1 3x3x1mm CVD Lab Grown Diamonds 2PT 110 Single Crystal Diamond Plate 2 3x3x1mm CVD Lab Grown Diamonds 2PT 110 Single Crystal Diamond Plate 3
Packaging & Shipping Information
Selling Units Single item
Package Size 18X18X10 cm
Gross Weight 0.500 kg
Port Changsha
Packaging: Each diamond plate is securely packed in a sealed plastic bag within a protective carton.
Delivery: Typically shipped within 3-7 working days after payment confirmation via DHL, TNT, Fedex, UPS or as requested.
