Name: Brownish CVD Lab Grown Diamonds 3x3x1mm For Machining And Cutting Tools
Brand: Shaper Diamond Technology Co., Ltd
SKU: CVD
Price: 1,000.00 USD
Availability: InStock

Home Products Mechanical CVD Diamond

Brownish CVD Lab Grown Diamonds 3x3x1mm For Machining And Cutting Tools

Product Details:

Place of Origin:	Hunan, China
Brand Name:	Infi
Certification:	Non Certificate
Model Number:	CVD

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	To be negotiated
Packaging Details:	packed in box then into carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	100pcs/7days

Contact Now

Detailed Product Description

Size:	3x3x1mm	Color:	Brownish
Shape:	Square	Product Name:	Mono CVD
Grade:	Normal Grade	Orientation:	2pt/110
Highlight:	Brownish CVD Lab Grown Diamonds , Machining CVD Lab Grown Diamonds

Brownish CVD Lab Grown Diamonds 3x3x1mm For Machining And Cutting Tools

Product Specifications

Attribute	Value
Size	3x3x1mm
Color	Brownish
Shape	Square
Product Name	Mono CVD
Grade	Normal grade
Orientation	2pt/110

3x3x1 mm CVD Lab Grown Diamond for Machining and Cutting Tools

Synthetic diamond: Synthetic diamond (also referred to as lab grown diamond, lab created diamond, or cultured diamond, man made diamond) is a diamond made of the same material as natural diamonds: pure carbon, crystallized in an isotropic 3D form.

Single crystal CVD diamond: The cutting tool made of CVD has excellent performance. It not only has sharp edge, high precision and small cutting force, but also has high hardness, good wear resistance, corrosion resistance and chemical stability, which can meet the requirements of precision and ultra-precision machining on tool materials, and extend the service life of the tool, enabling long-term continuous cutting and reducing the influence of tool wear on the accuracy of parts.

Technical Details

Crystal growth process	Mono CVD
Color	Mechanical grade - Brownish
Advantages	Regular shape, uniform size. The size can be strictly controlled according to customer needs. High repurchase rate and high cost performance, well received by customers. No visible growth lines, no black spots, no impurities, no crack.
Orientation	100 (all 6 planes 100) 110 (Top and bottom 100, four sides 110) 2pt/110
Shape	Rectangular
Edges	Laser Cut
Laser Kerf	3° - 4°
Lateral Tolerance	+0.1/-0 mm
Thickness Tolerance	+/- 0.05 mm
Available size	1mm - 15mm
Available thickness	0.1- 5mm
Micro-hardness	80-150Gpa
Young modulus	1150-1130Gpa
Boron Concentration [B]	<0.05 ppm
Nitrogen Concentration	Mechanical grade 50 ppm - 100 ppm

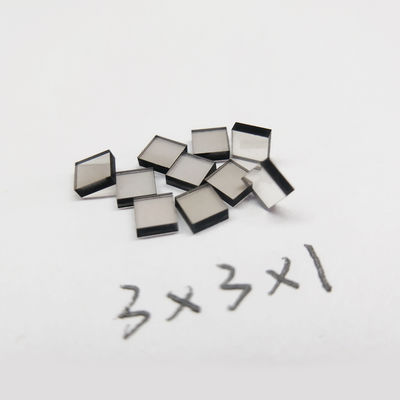

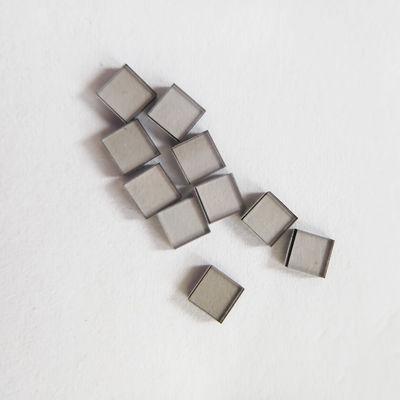

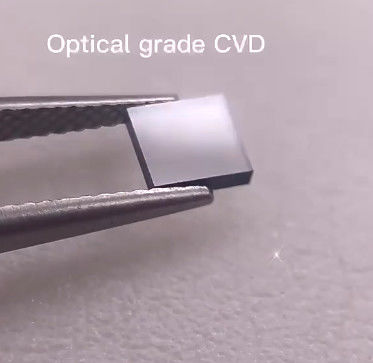

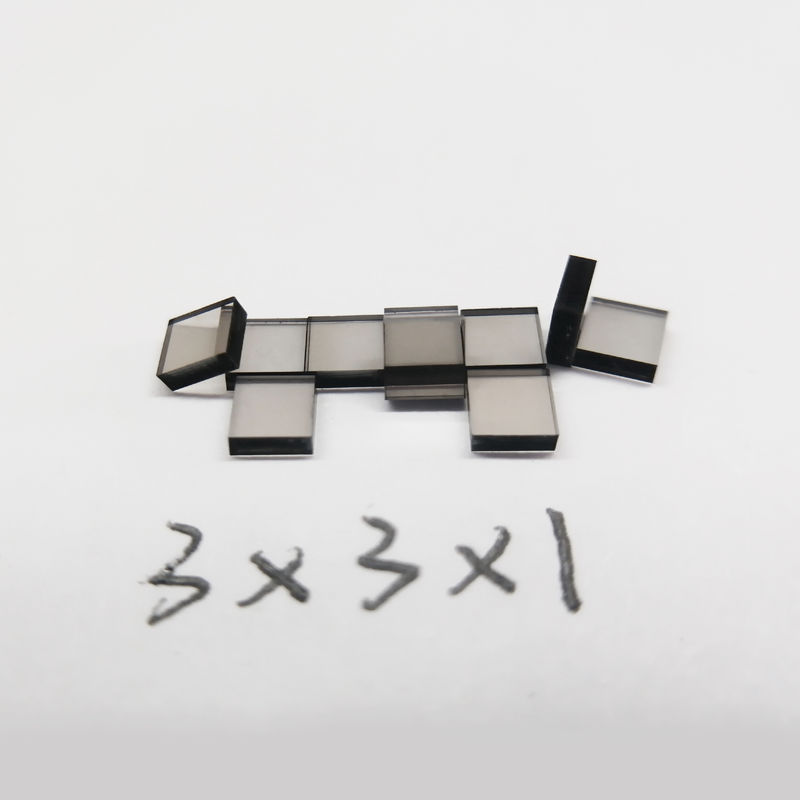

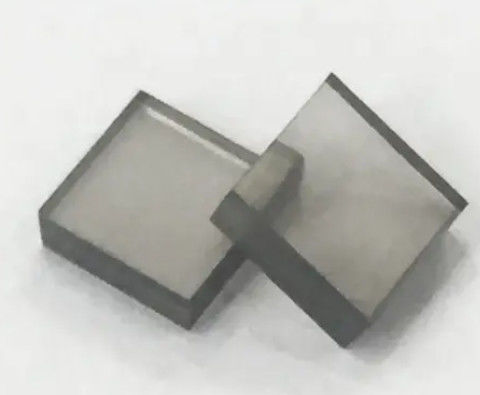

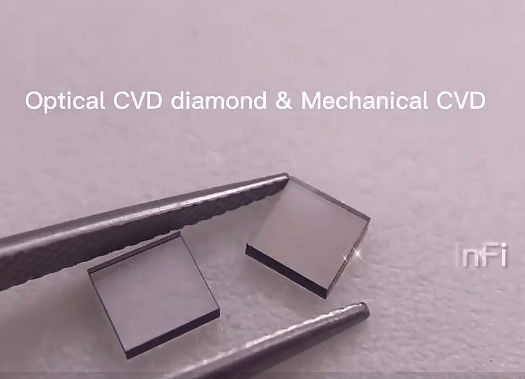

Product Images

Packaging and Shipping

Selling Units	Single item
Single package size	18X18X10 cm
Port	Changsha
Single gross weight	0.500 kg

Package: Small sealed plastic bag and carton (strong and safe package)
Delivery: Usually 3-7 working days after the payment confirmation
Transportation: DHL, TNT, Fedex, UPS or as per your request.
