5x3x1.2mm Mono CVD Lab Grown Diamonds Single Crystal Synthetic Diamonds

Product Details:

Place of Origin:	Hunan, China
Brand Name:	Infi
Certification:	Non Certificate
Model Number:	CVD

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	To be negotiated
Packaging Details:	packed in box then into carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	100pcs/7days

Contact Now

Detailed Product Description

Color:	Brownish	Shape:	Rectangle
Processing:	Mono CVD	Customized Support:	OEM, ODM, OBM
Warranty:	3 Years	Materials:	Lab Grown Diamonds
Highlight:	Mono CVD Lab Grown Diamonds , 5x3x1.2mm CVD Lab Grown Diamonds , Synthetic Lab Grown CVD Diamond

5x3x1.2mm Mono CVD Lab Grown Diamonds Single Crystal Synthetic Diamonds

Product Specifications

Attribute	Value
Color	Brownish
Shape	Rectangle
Processing	Mono CVD
Customized support	OEM, ODM, OBM
Warranty	3 years
Materials	Lab grown diamonds

Technical Details

Product name	5x3x1.2mm rough CVD diamonds
Orientation	100 (all 6 planes 100) 110 (Top and bottom 100, four sides 110) 2pt/110
Edges	Laser Cut
Laser Kerf	< 3°
Lateral Tolerance	+0.1/-0 mm
Roughness, Ra	Two sides polished, Ra < 30 nm
Thickness Tolerance	+0.1/-0.05 mm
Available size	1mm - 20mm
Micro-hardness	80-150Gpa
Young modulus	1150-1130Gpa
Boron Concentration [B]	< 0.05 ppm
Nitrogen Concentration	Mechanical grade 50 ppm - 100 ppm

Applications

Mono CVD (Single crystal CVD) is widely used in three key industries: cutting tools, wire drawing dies, and grinding wheel dressing. When fabricated into tools, Mono CVD delivers superior surface finishes and extended tool life. These tools are primarily used for processing non-ferrous metals including aluminum, copper, and gold. With exceptional hardness second only to natural diamonds, Mono CVD tools are capable of achieving extremely high finishes and are used for both simple chamfering and complex contour applications.

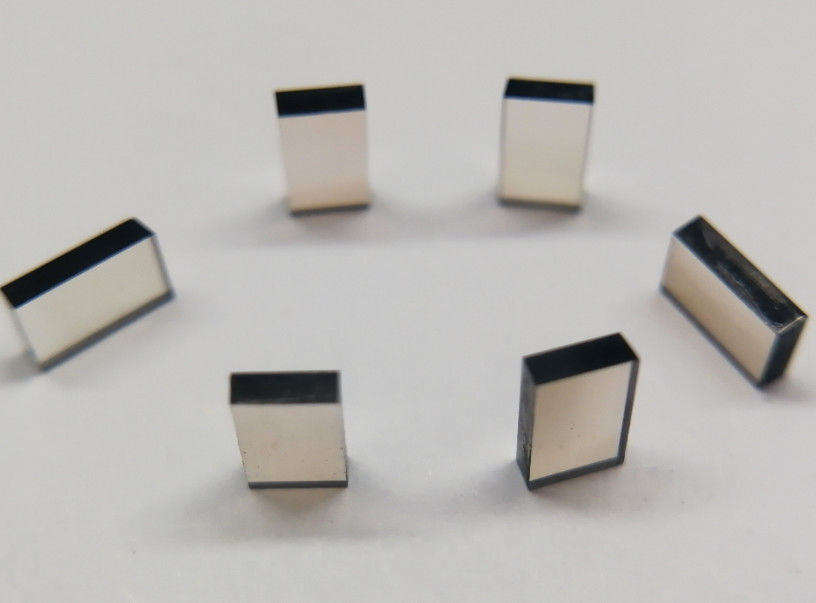

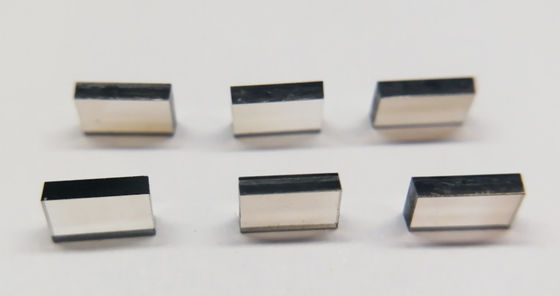

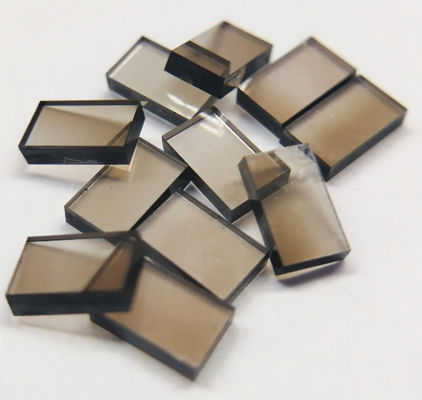

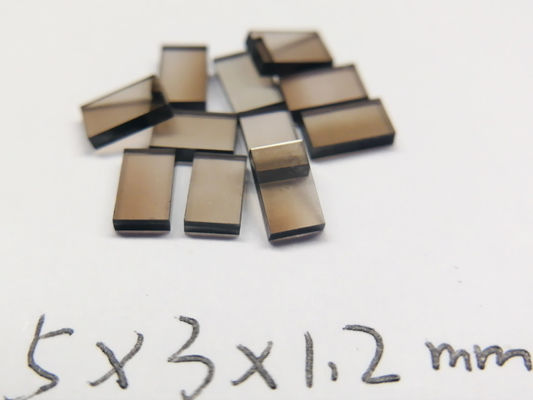

Product Images

Packaging & Shipping

Packaging Details	Plastic bag, OPP bag or as requested
Port	Changsha
Single package size	20X18X15cm
Single gross weight	0.500 kg
Transportation	DHL, TNT, Fedex, UPS or as per request

Additional Information

Service Options: Accepted Delivery Terms: FOB, CFR, CIF, EXW; Accepted Payment Currency: USD, EUR, CNY; Accepted Payment Type: T/T, L/C, MoneyGram, PayPal, Western Union, Cash, Escrow
Quality Assurance: Pre-production samples provided before mass production; Final inspection conducted before shipment
Key Advantages: High quality materials, competitive pricing, fast delivery, excellent customer service
Standard Packaging: Small sealed plastic bag and reinforced carton for secure transportation
Delivery Time: Typically 3-7 working days after payment confirmation
