Name: 5x3x1.2mm Monocrystalline Diamond CVD 2PT 110 / 4PT 100 Mechanic Grade
Brand: Shaper Diamond Technology Co., Ltd
SKU: Super-hard metrial
Price: 1,000.00 USD
Availability: InStock

Home Products MCD Diamond

5x3x1.2mm Monocrystalline Diamond CVD 2PT 110 / 4PT 100 Mechanic Grade

Product Details:

Place of Origin:	Hunan, China
Brand Name:	Infi
Model Number:	Super-hard metrial

Payment & Shipping Terms:

Minimum Order Quantity:	1-5000PCS
Price:	To be negotiated
Packaging Details:	sealed bag or carton or according to customer's request
Delivery Time:	7 Work days
Payment Terms:	T/T
Supply Ability:	5000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Size:	1-15mm	Color:	White, Light Brown
Available Thickness:	0.1-3mm	Model Number:	CVD
Usage:	Sharping Blade, Optical Window, Heat Spreader	Product Name:	2PT(110) & 4PT(100) Monocrystal CVD Diamond
Available Orientation:	100/110(4pt Or 2 Pt)	Diamond Shape And Size:	Customized
Hardness:	Moh's 10
Highlight:	5x3x1.2mm Monocrystalline Diamond , Monocrystalline Diamond CVD

5x3x1.2mm Monocrystalline Diamond CVD 2PT 110 / 4PT 100 Mechanic Grade

Product Attributes

Attribute	Value
Size	1-15mm
Color	White, light brown
Available thickness	0.1-3mm
Model Number	CVD
Usage	sharping blade, optical window, heat spreader
Product name	2PT(110) & 4PT(100) monocrystal CVD diamond
Available orientation	100/110(4pt or 2 pt)
Diamond shape and size	customized
Hardness	Moh's 10

2PT(110) & 4PT(100) Monocrystal CVD Diamond

We can provide mechanical grade and optical grade CVD diamond, 100 and 110 crystal orientations. 1-15mm length, the thickness such as 0.3mm, 0.5mm, 1.0mm 2.0mm or customized size are also available.

Product Details

Crystal size:

5x3x1.2mm

Color:

Mechanic grade - Brownish

Available size:

5x3x1.2, 4x3x1.2, 4x3x0.5, 4x4x1, 5x4x1, 5x5x1.5, 4x4x0.5 etc.

Orientation:

4pt/100/2pt/110

Shape:

Rectangular

Edges:

Laser Cut

Laser Kerf:

< 3°

Lateral Tolerance:

+0.1/-0 mm

Roughness, Ra:

Two sides polished, Ra < 30 nm

Thickness Tolerance:

+/- 0.05 mm

Boron Concentration [B]:

< 0.05 ppm

Nitrogen Concentration:

Mechanical grade - <50 ppm

Advantages

Regular shape, uniform size. The size can be strictly controlled according to customer requirements
High repurchase rate and high cost performance, well received by customers
No visible growth lines, no black spots, no impurities, no crack

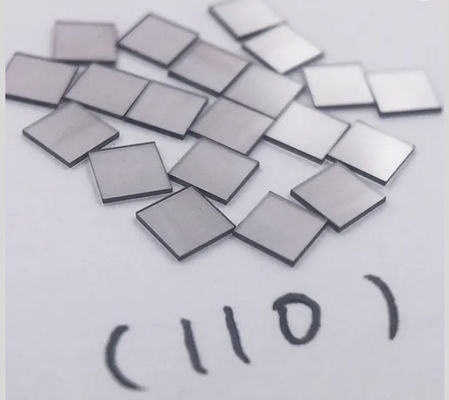

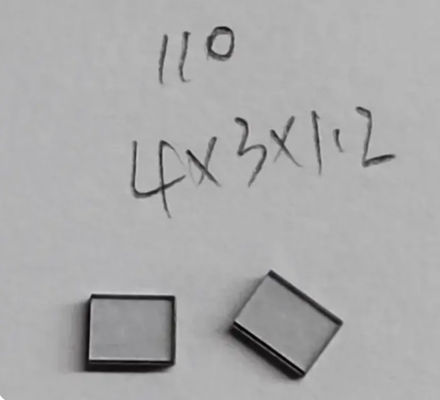

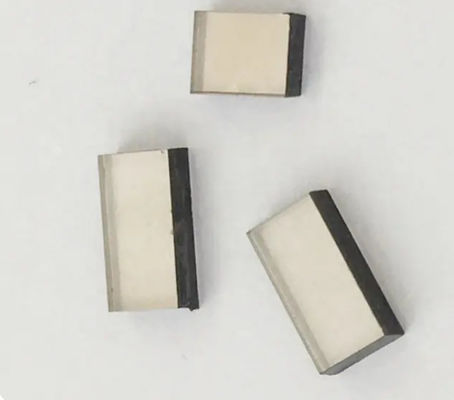

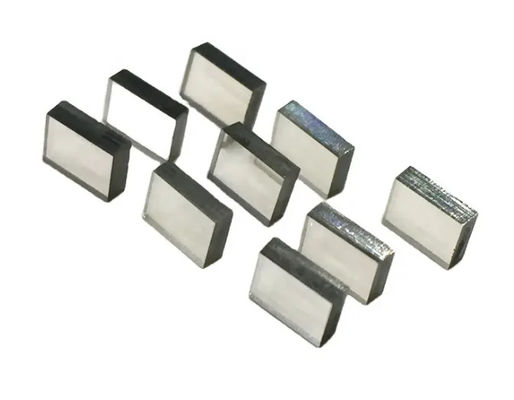

Product Images
