Name: Mono Crystal CVD Lab Created Diamonds 6x3x1.5mm Mechanical Grade For Cutting Tools
Brand: Shaper Diamond Technology Co., Ltd
SKU: CVD
Price: 1,000.00 USD
Availability: InStock

Home Products Mechanical CVD Diamond

Mono Crystal CVD Lab Created Diamonds 6x3x1.5mm Mechanical Grade For Cutting Tools

Product Details:

Place of Origin:	Hunan, China
Brand Name:	Infi
Certification:	Non Certificate
Model Number:	CVD

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	To be negotiated
Packaging Details:	packed in box then into carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	100pcs/7days

Contact Now

Detailed Product Description

Color:	Brownish	Shape:	Rectangle
Processing:	Mono CVD	Customized Support:	OEM, ODM, OBM
Warranty:	3 Years	Materials:	Lab Grown Diamonds
Highlight:	Mechanical CVD Lab Created Diamonds , CVD Lab Created Diamonds 6x3x1.5mm , Mechanical Mono Crystal Diamond

Mono Crystal CVD Lab Created Diamonds 6×3×1.5mm Mechanical Grade For Cutting Tools

Product Specifications

Attribute	Value
Color	Brownish
Shape	Rectangle
Processing	Mono CVD
Customized Support	OEM, ODM, OBM
Warranty	3 years
Materials	Lab grown diamonds

Technical Details

Orientation	100 (all 6 planes 100) 110 (Top and bottom 100, four sides 110) 2pt/110
Edges	Laser Cut
Laser Kerf	< 3°
Lateral Tolerance	+0.1/-0 mm
Roughness, Ra	Two sides polished, Ra < 30 nm
Thickness Tolerance	+0.1/-0.05 mm
Available Size	1mm - 20mm
Micro-hardness	80-150Gpa
Young Modulus	1150-1130Gpa
Boron Concentration [B]	< 0.05 ppm
Nitrogen Concentration	Mechanical grade 50 ppm - 100 ppm

Product Applications

Mono CVD (Single crystal CVD) diamonds are primarily used in three industries: cutting tools, wire drawing dies, and grinding wheel dressing. When fabricated into tools, they achieve superior surface finishes and extended tool life.

These tools are particularly effective for processing non-ferrous metals including aluminum, copper, and gold. Their exceptional hardness enables high precision machining, making them suitable for both simple chamfering and complex contour tool applications.

Mono CVD diamonds offer hardness second only to natural diamonds, providing exceptional durability and performance in industrial applications.

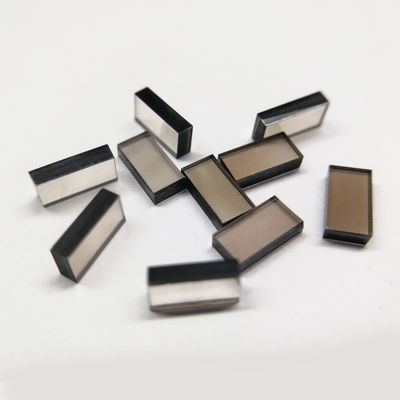

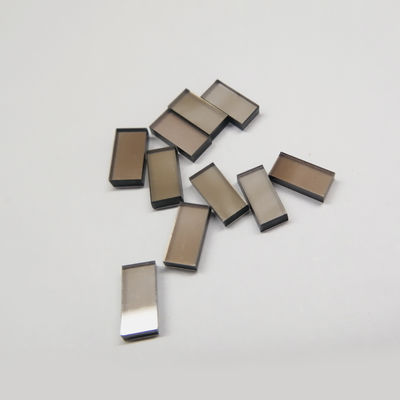

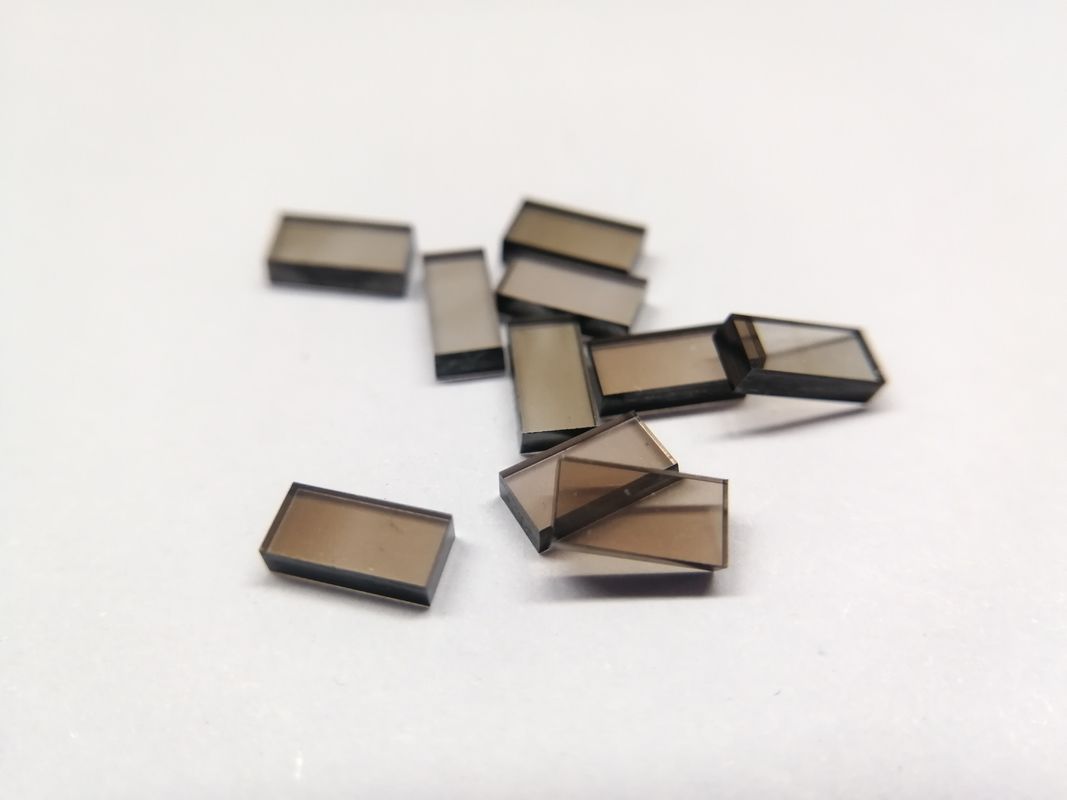

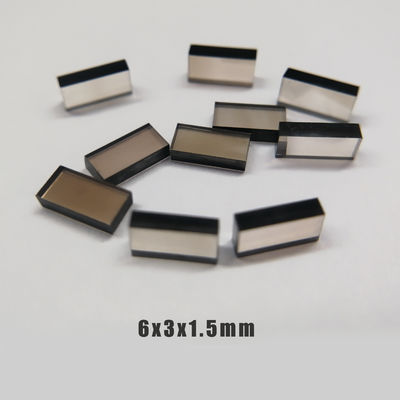

Product Images

Packaging & Shipping

Packaging Details	Plastic bag, OPP bag or as requested
Port	Changsha, Shanghai, Guangzhou, Shenzhen
Single Package Size	20×18×15cm
Single Gross Weight	0.500 kg
Transportation	DHL, TNT, Fedex, UPS or as requested

Additional Information

Service Options: FOB, CFR, CIF, EXW delivery terms available. Payment accepted in USD, EUR, CNY via T/T, L/C, MoneyGram, PayPal, Western Union, Cash, Escrow.

Quality Assurance: Pre-production samples provided before mass production. Final inspection conducted before shipment.

Key Advantages: High quality materials, competitive pricing, fast delivery times, and excellent customer service.

Standard Delivery: Typically 3-7 working days after payment confirmation, packaged in sealed plastic bags within protective cartons.
