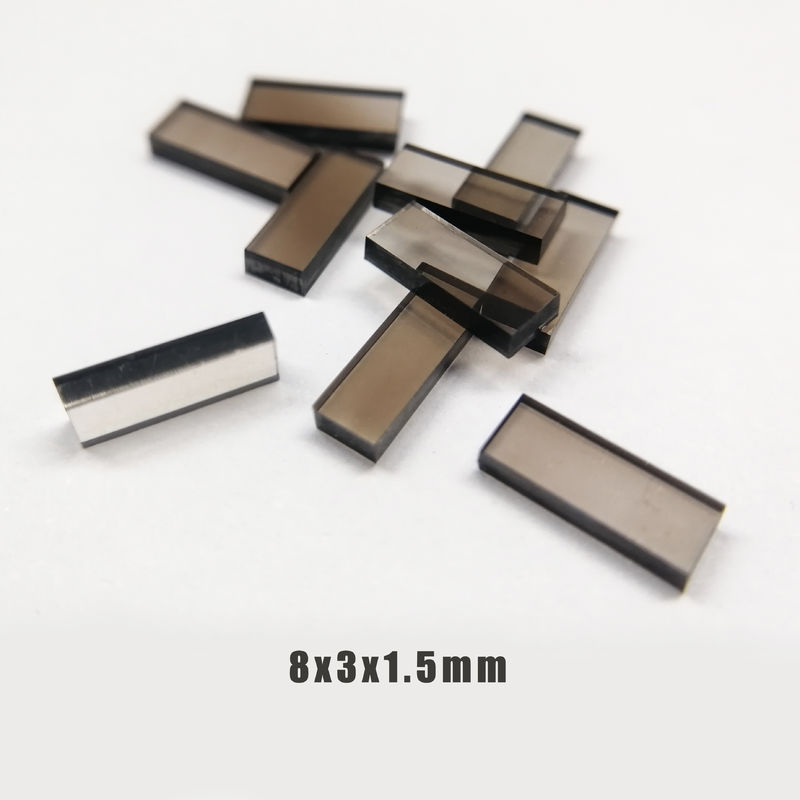

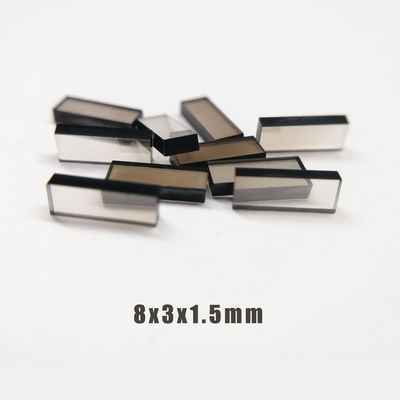

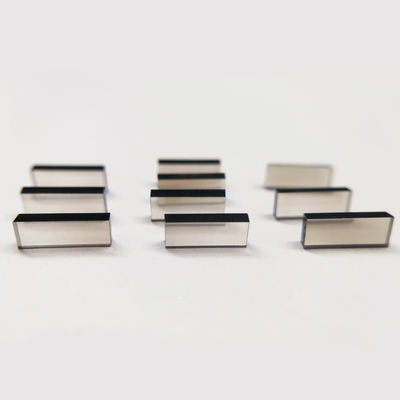

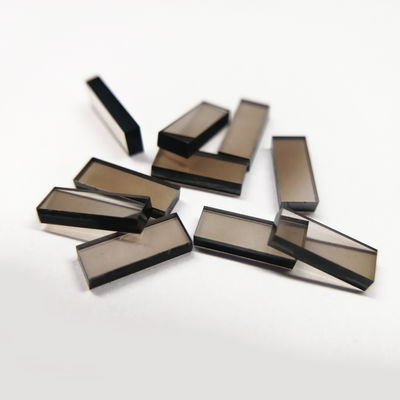

8x3x1.5mm Mono Crystal CVD Diamond Mechanical Grade For Cutting Tools

8x3x1.5mm Mono Crystal CVD Diamond Mechanical Grade For Cutting Tools

  • 8x3x1.5mm Mono Crystal CVD Diamond Mechanical Grade For Cutting Tools
  • 8x3x1.5mm Mono Crystal CVD Diamond Mechanical Grade For Cutting Tools
  • 8x3x1.5mm Mono Crystal CVD Diamond Mechanical Grade For Cutting Tools
  • 8x3x1.5mm Mono Crystal CVD Diamond Mechanical Grade For Cutting Tools
8x3x1.5mm Mono Crystal CVD Diamond Mechanical Grade For Cutting Tools
Product Details:
Place of Origin: Hunan, China
Brand Name: Infi
Certification: Non Certificate
Model Number: CVD
Payment & Shipping Terms:
Minimum Order Quantity: 1-100PCS
Price: To be negotiated
Packaging Details: According to customer needs
Delivery Time: 3-7 Work days
Payment Terms: T/T
Supply Ability: 10000 Carat/Carats per Month
Contact Now
Detailed Product Description
Size: 8x3x1.5mm Color: Mechanical Grade - Brownish
Product Name: Mono CVD Thickness: 0.6-1.5+
Grade: Normal Grade Orientation：: 2pt/110
Highlight:

8x3x1.5mm Crystal CVD Diamond

,

Mono Crystal CVD Diamond

8x3x1.5mm Mono Crystal CVD Diamond Mechanical Grade For Cutting Tools
Product Specifications
Attribute Value
Size 8x3x1.5mm
Color Mechanical grade - Brownish
Product Name Mono CVD
Thickness 0.6-1.5+
Grade Normal grade
Orientation 2pt/110
Product Overview
Single crystal chemical vapor deposition (CVD) produces high-quality diamond crystals for industrial applications. This process involves precise gas mixture introduction into a high-temperature chamber, where materials deposit onto a prepared single crystal substrate under controlled conditions.
Key Features
  • Regular shape & uniform size: Precisely controlled dimensions to meet specifications
  • High quality: No visible growth lines, black spots, impurities, or cracks
  • Cost effective: High customer satisfaction and repurchase rate
  • Precision cutting: Laser-cut edges with kerf angle < 3°
Technical Specifications
Shape Rectangular
Lateral Tolerance +0.1/-0 mm
Thickness Tolerance ±0.05 mm
Available Size Range 1mm - 15mm
Available Thickness 0.1-5mm
Micro-hardness 80-150Gpa
Young Modulus 1150-1130Gpa
Boron Concentration <0.05 ppm
Nitrogen Concentration 50 ppm - 100 ppm
Orientation Selection Guide

Highest strength: Use (100) crystal plane for both front and flank surfaces

Mechanical wear resistance: Use (110) crystal plane for front and rear surfaces

Chemical wear resistance: Use (110) for rake surface and (100) for flank surface

8x3x1.5mm Mono Crystal CVD Diamond Mechanical Grade For Cutting Tools 0 8x3x1.5mm Mono Crystal CVD Diamond Mechanical Grade For Cutting Tools 1 8x3x1.5mm Mono Crystal CVD Diamond Mechanical Grade For Cutting Tools 2 8x3x1.5mm Mono Crystal CVD Diamond Mechanical Grade For Cutting Tools 3 8x3x1.5mm Mono Crystal CVD Diamond Mechanical Grade For Cutting Tools 4
Packaging & Shipping

Package: Small sealed plastic bag in protective carton

Delivery Time: 3-7 working days after payment confirmation

Shipping Options: DHL, TNT, Fedex, UPS or as requested

Tag:

HPHT Lab Grown Diamonds,

Monocrystal Diamond,

Monocrystalline Diamond
