Name: Rectangle Mono Crystal CVD Lab Grown Diamonds Mechanical Grade 12x3x1.5mm
Brand: Shaper Diamond Technology Co., Ltd
SKU: CVD
Price: 1,000.00 USD
Availability: InStock

Home Products Mechanical CVD Diamond

Rectangle Mono Crystal CVD Lab Grown Diamonds Mechanical Grade 12x3x1.5mm

Product Details:

Place of Origin:	Hunan, China
Brand Name:	Infi
Certification:	Non Certificate
Model Number:	CVD

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	To be negotiated
Packaging Details:	packed in box then into carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	100pcs/7days

Contact Now

Detailed Product Description

Color:	Brownish	Shape:	Rectangle
Processing:	Mono CVD	Customized Support:	OEM, ODM, OBM
Warranty:	3 Years	Materials:	Lab Grown Diamonds
Highlight:	Rectangle CVD Lab Grown Diamonds , Mechanical CVD Lab Grown Diamonds

Rectangle Mono Crystal CVD Lab Grown Diamonds Mechanical Grade 12x3x1.5mm

Product Specifications

Attribute	Value
Product Name	12x3x1.5 mm mono crystal CVD mechanical grade CVD for cutting tools
Shape	Rectangle
Color	Brownish
Processing	Mono CVD
Warranty	3 years
Orientation	100 (all 6 planes 100) 110 (Top and bottom 100, four sides 110) 2pt/110
Edges	Laser Cut
Laser Kerf	< 3°
Lateral Tolerance	+0.1/-0 mm
Roughness, Ra	Two sides polished, Ra < 30 nm
Thickness Tolerance	+0.1/-0.05 mm
Available Size	1mm - 20mm
Micro-hardness	80-150Gpa
Young modulus	1150-1130Gpa
Boron Concentration [B]	< 0.05 ppm
Nitrogen Concentration	Mechanical grade 50 ppm - 100 ppm

Product Description

Mono CVD (Single crystal CVD) is widely used in three key industries: cutting tools, wire drawing dies, and grinding wheel dressing. When fabricated into tools, Mono CVD delivers superior surface finishes and extended tool life.

Mono CVD tools are primarily used for processing non-ferrous metals including aluminum, copper, and gold. The exceptional hardness of this material enables extremely high surface finishes. Modern applications extend beyond simple chamfering tools to include complex contour tools.

With hardness second only to natural diamonds, Mono CVD offers exceptional performance for demanding industrial applications.

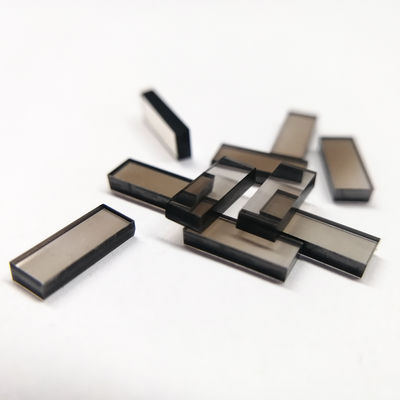

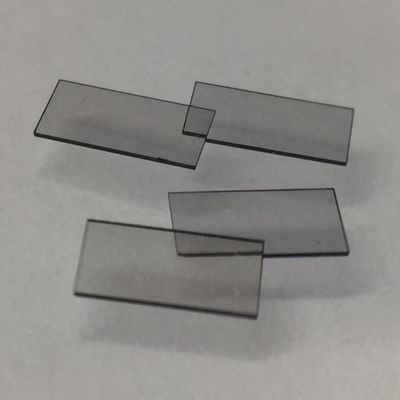

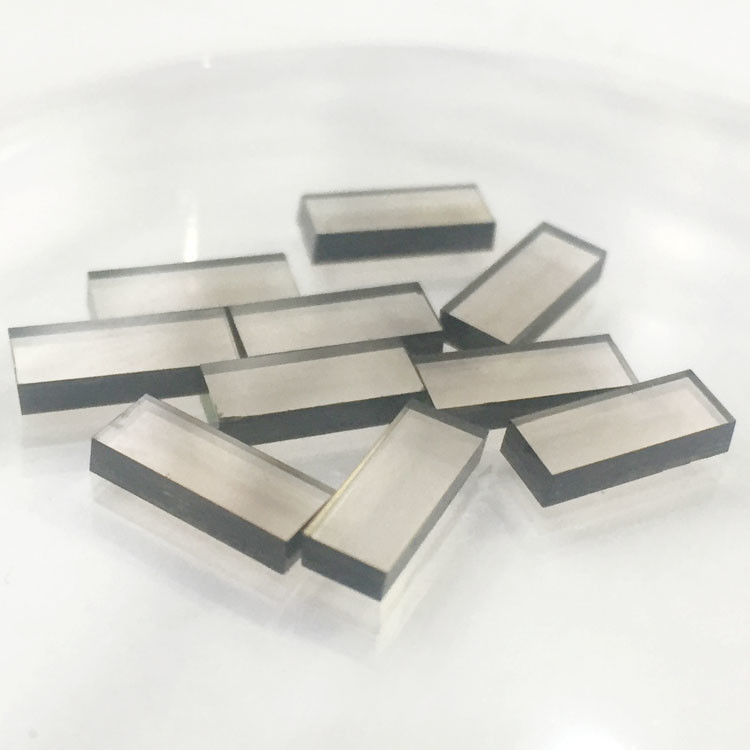

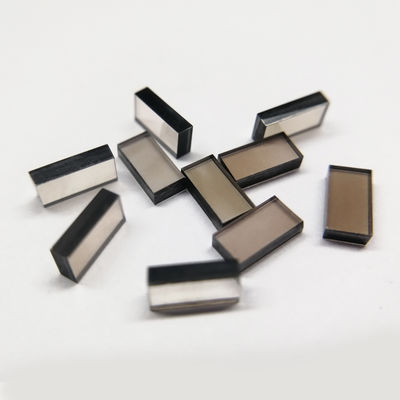

Product Images

Packaging & Shipping

Detail	Specification
Packaging	Plastic bag, OPP bag or as requested
Port	Changsha, Shanghai, Guangzhou, Shenzhen
Package Size	20×18×15cm
Gross Weight	0.500 kg
Transportation	DHL, TNT, Fedex, UPS or as requested

Additional Information

Services Provided:

Accepted Delivery Terms: FOB, CFR, CIF, EXW
Accepted Payment Currency: USD, EUR, CNY
Accepted Payment Methods: T/T, L/C, MoneyGram, PayPal, Western Union, Cash, Escrow

Quality Assurance:
