（111）-Oriented Diamond Wire Drawing Dies | CVD & HPHT Dual-Technology Solutions for Precision Wire Manufacturing

Product Details:

Place of Origin:	China
Brand Name:	INFI

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	To be negotiated
Packaging Details:	packed in box then into carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	100pcs/7days

Contact Now

Detailed Product Description

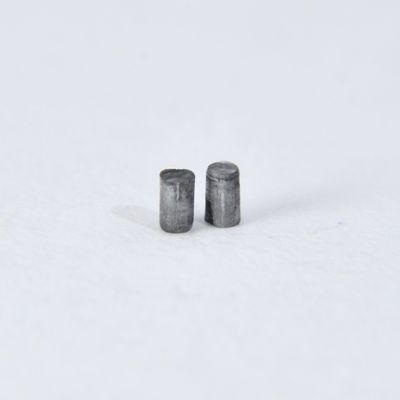

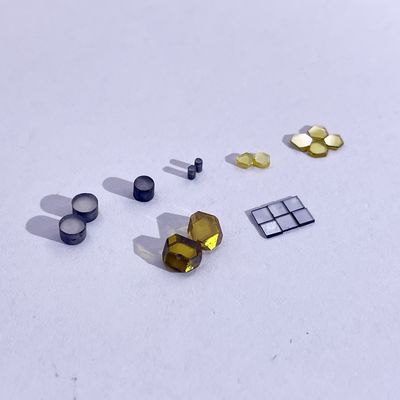

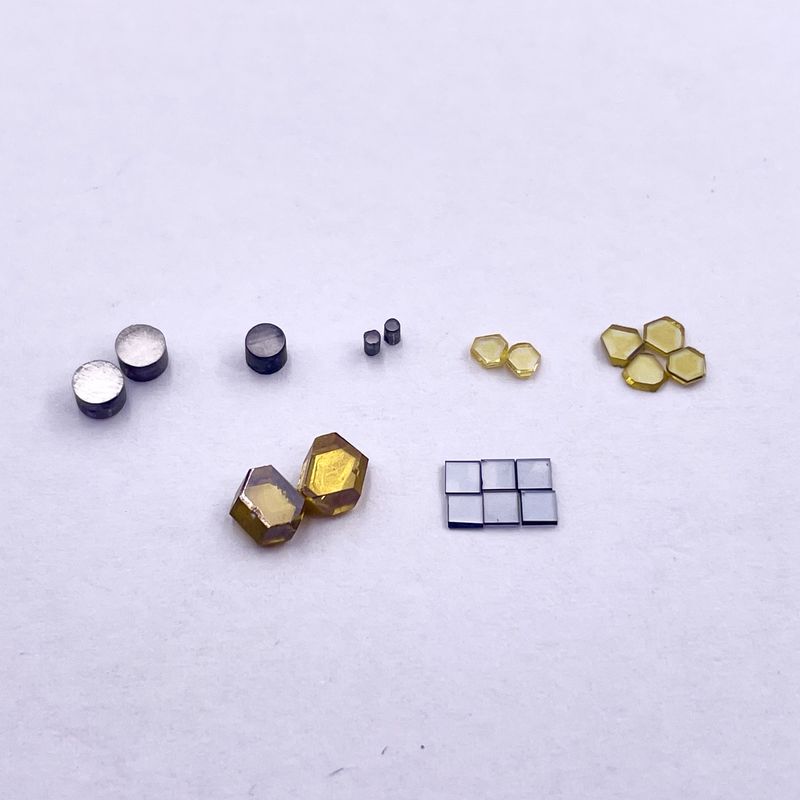

(111)-Oriented Diamond Wire Drawing Dies

CVD & HPHT Dual-Technology Solutions for Precision Wire Manufacturing

Core Technical Parameters

Parameter	CVD Diamond	HPHT Diamond

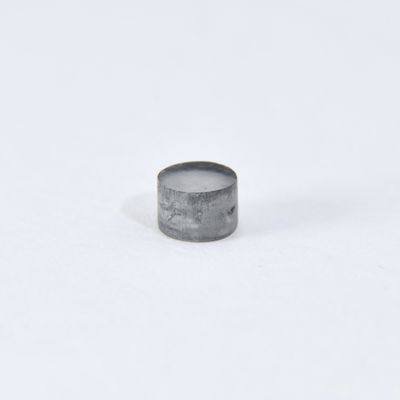

Process	Chemical Vapor Deposition	High Pressure High Temperature
Orientation	(111)	(111)
Wire Diameter	φ0.003mm~φ5.0mm	φ0.003mm~φ2.0mm

Competitive Advantages

CVD Diamond Highlights

Ultimate Precision
Thermal Mastery

HPHT Diamond Strengths

Cost Efficiency
Complex Profiles

Shared Benefits

Monocrystalline structure eliminates grain-boundary failures
(111) plane along <110> direction triples shear resistance
Minimal aperture deformation at 1200°C

Comprehensive Applications

Stainless Steel Wire
Medical Wires: Tungsten/Molybdenum guidewires, NiTi alloy wires
Luxury Jewelry: Mirror-finish gold/platinum wires
Semiconductor: Bonding copper wires
Industrial Mass Production: Enameled wires, welding wires

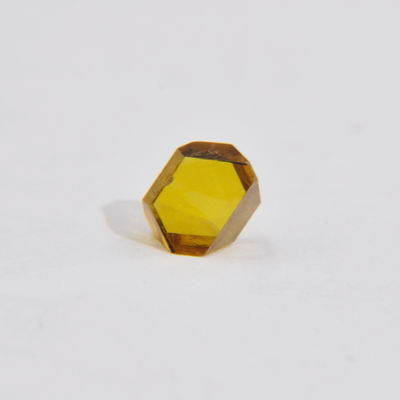

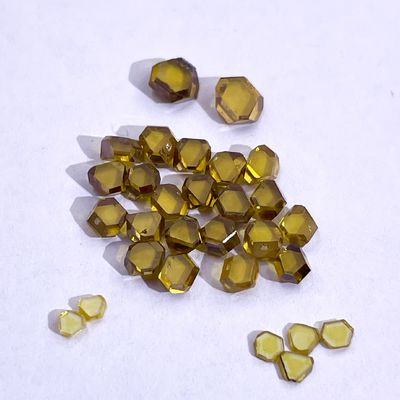

Production Specification Sheet - HPHT

Product Nomenclature	Nominal Thickness (mm)	Thickness Tolerance (mm)	Minimum Inscribed Circle Diameter (mm)
SCD111 07	0.7	0.66-0.75	0.8
SCD111 08	0.8	0.76-0.85	0.9
SCD111 09	0.9	0.86-0.95	1.0
SCD111 10	1.0	0.96-1.05	1.1
SCD111 11	1.1	1.06-1.15	1.2
SCD111 12	1.2	1.16-1.23	1.3
SCD111 13	1.3	1.26-1.35	1.4
SCD111 14	1.4	1.36-1.45	1.45
SCD111 15	1.5	1.46-1.55	1.5
